Disassembly (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 145/146 Engines, 146 Bodywork and Engine Overhaul Manual
- Year
- 1994–2001
- Section
- Doors
146 bodyworkDisassembly · page 2 of 2

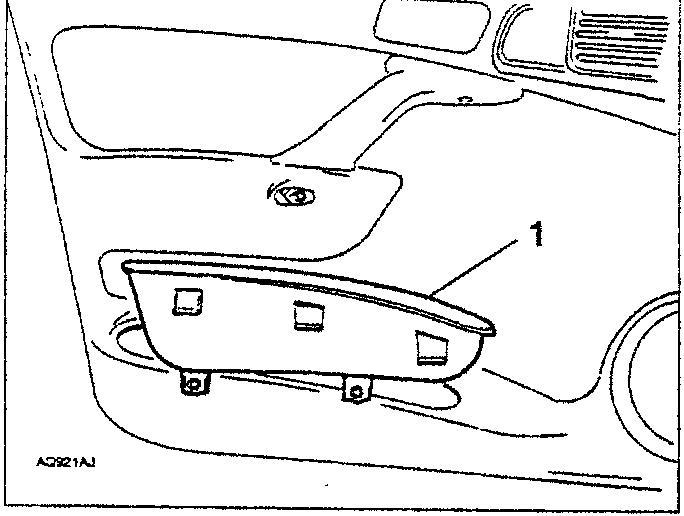

- Remove the utility compartment pulling it upwards.

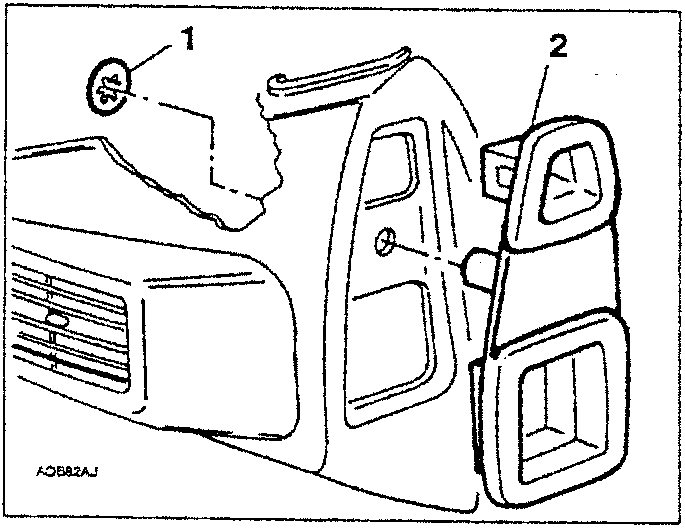

- Working from inside the panel, remove the stay clip.
- Remove the air vent.

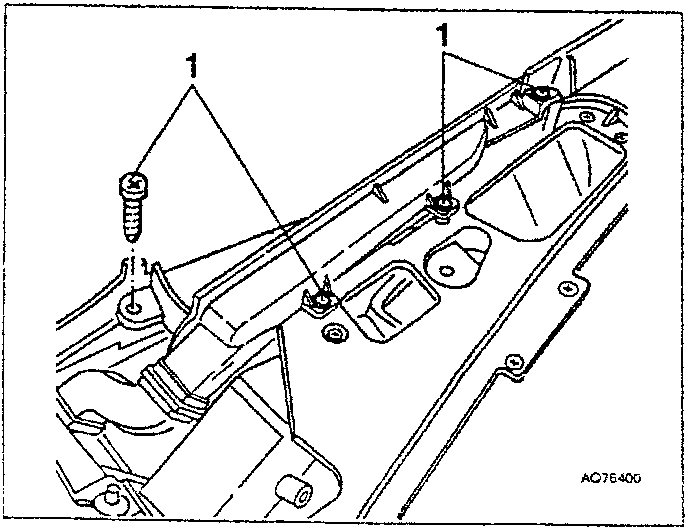

- Slacken the four screws fastening the door window demisting vent.
- Remove the door window demisting vent.

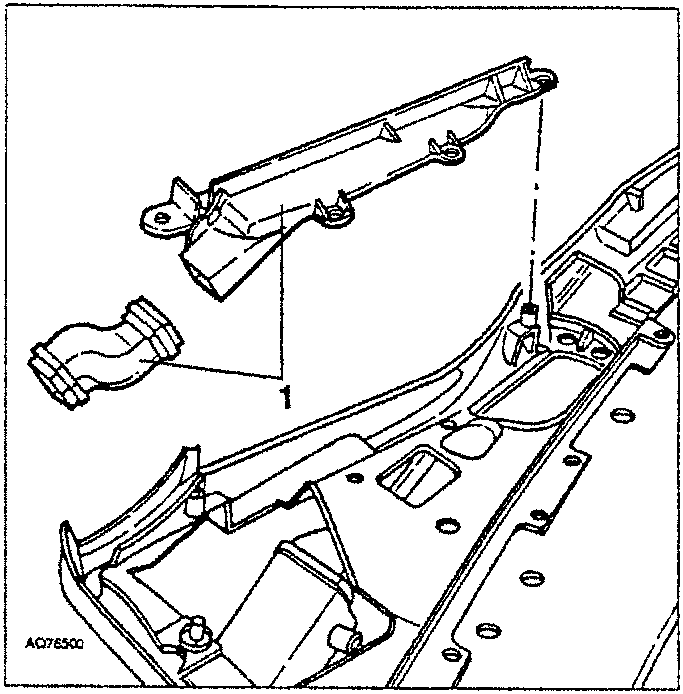

- If necessary disassemble the door window demisting vent.

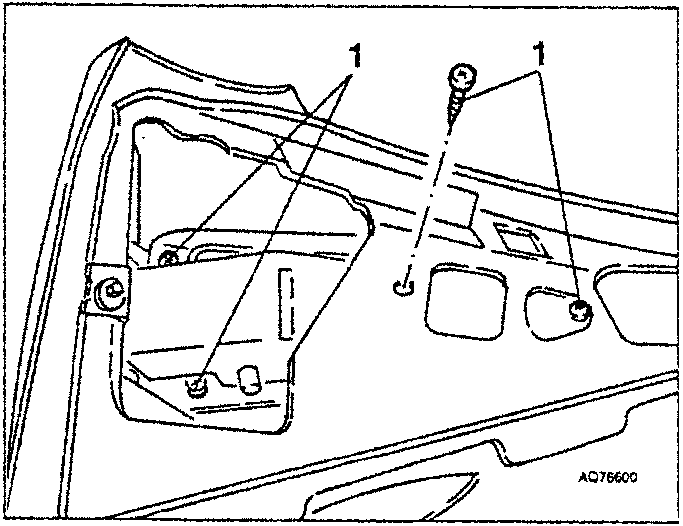

- Slacken the four screws fastening the air flow vent to the driver's seat.

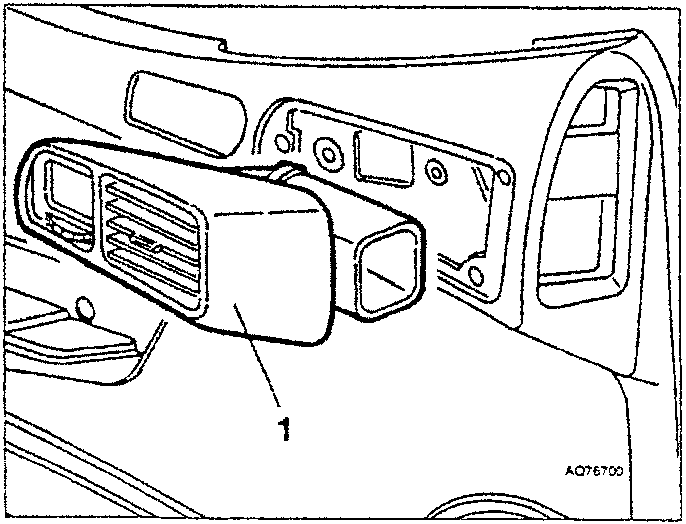

- Remove the air flow vent.
