REAR DOOR PANEL

REMOVAL/REFITTING

  • Disconnect the battery negative cable (-).

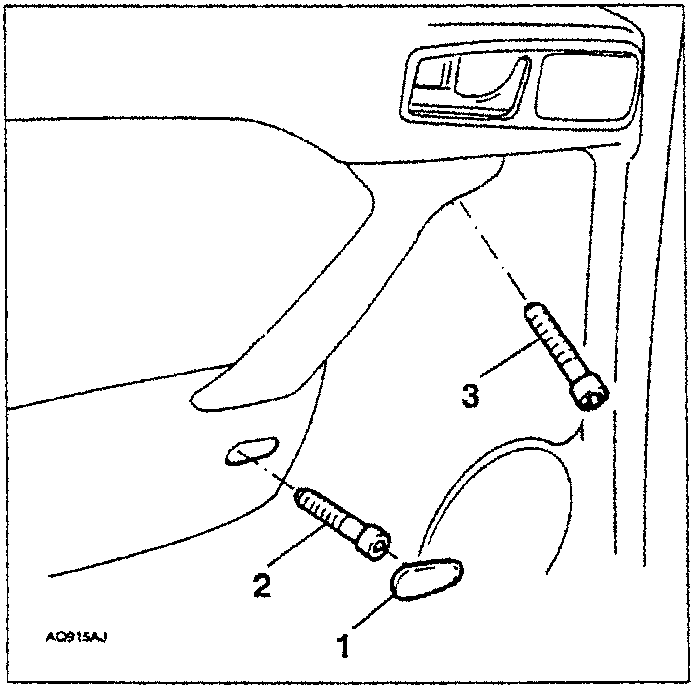

  1. Remove the plastic cap of the armrest grip.
  2. Slacken the armrest lower fastening screw below.
  3. Slacken the upper armrest fastening screw.

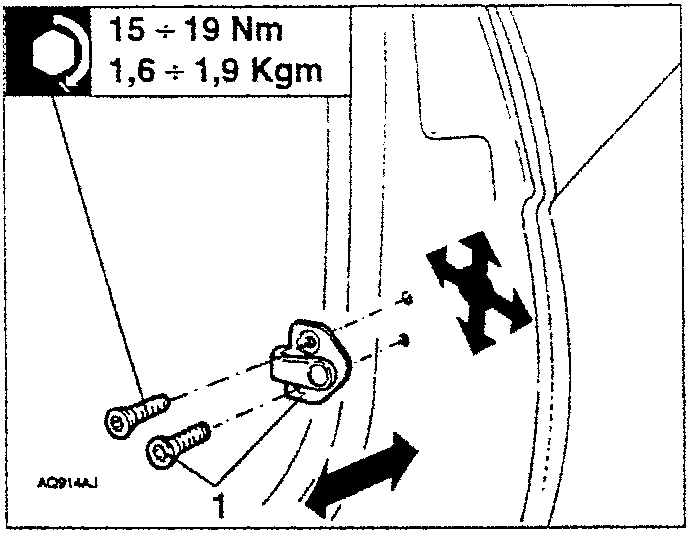

Diagram showing torque specification for screws and directional arrows

15 ÷ 19 Nm
1,6 ÷ 1,9 Kgm

Diagram showing speaker cover plate removal with numbered parts

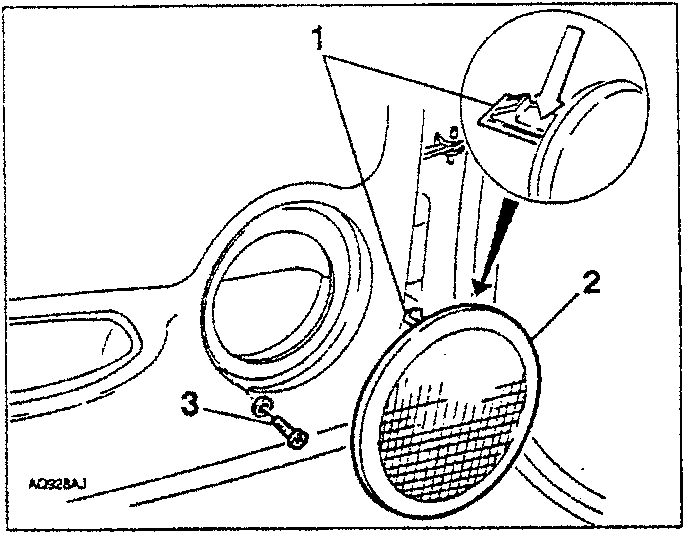

  • Using a suitable screwdriver, prise off the speaker cover plate as described below:
  1. Press and release the upper catch tooth.
  2. Press and release the left side catch tooth.
  3. Remove the plate.
Diagram showing ashtray removal with numbered parts

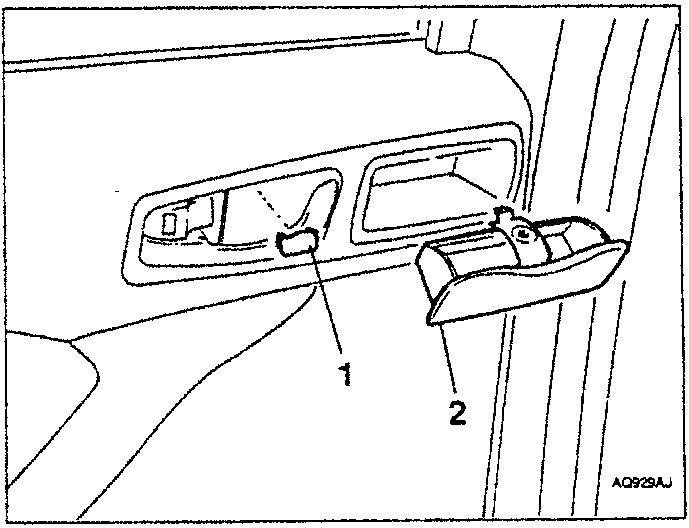

  1. Prise and remove the plastic cap.
  2. Remove the ashtray.
Diagram showing door handle plate removal with numbered parts

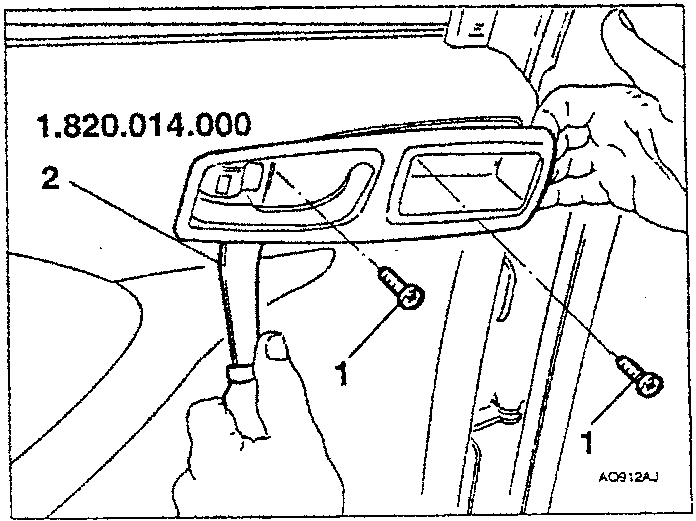

  1. Slacken and remove the two screws fastening the door handle plate.
  2. Using tool no. 1.823.014.000, remove the door opening handle plate.
Diagram showing door handle plate removal with tool number and numbered parts

1.820.014.000
