WING MIRROR (manually - operated) (page 2 of 2)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Doors

146 bodyworkWING MIRROR (manually - operated) · page 2 of 2

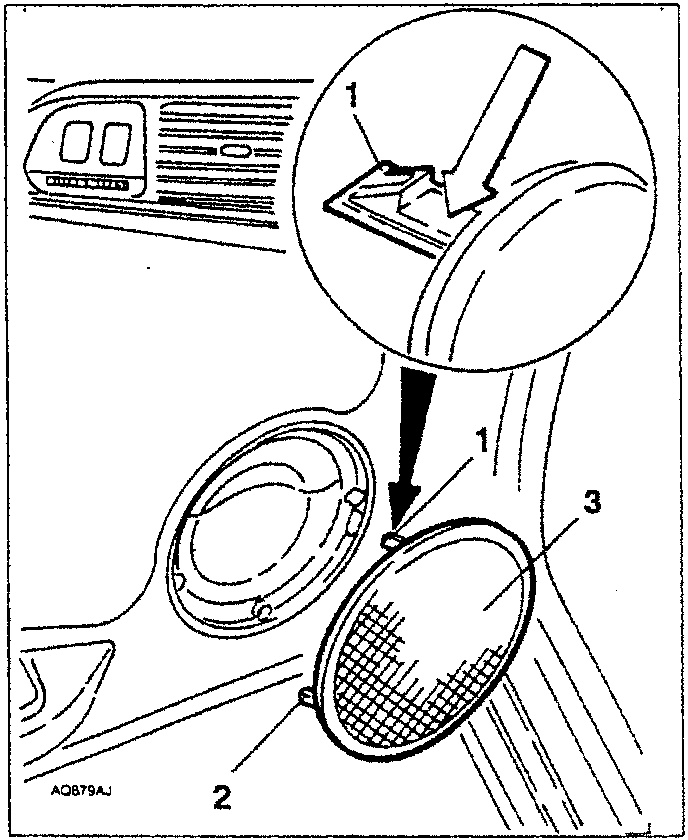

• Using a suitable screwdriver, prise off the speaker cover plate as described below:

1. Press and release the upper catch tooth.
2. Press and release the left side catch tooth.
3. Remove the plate.

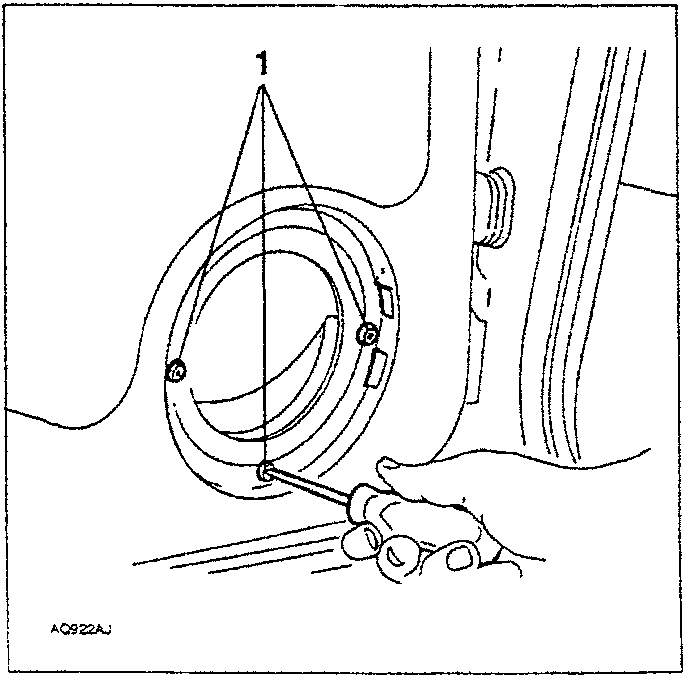

1. Slacken the three screws fastening the speaker compartment to the body and remove them.

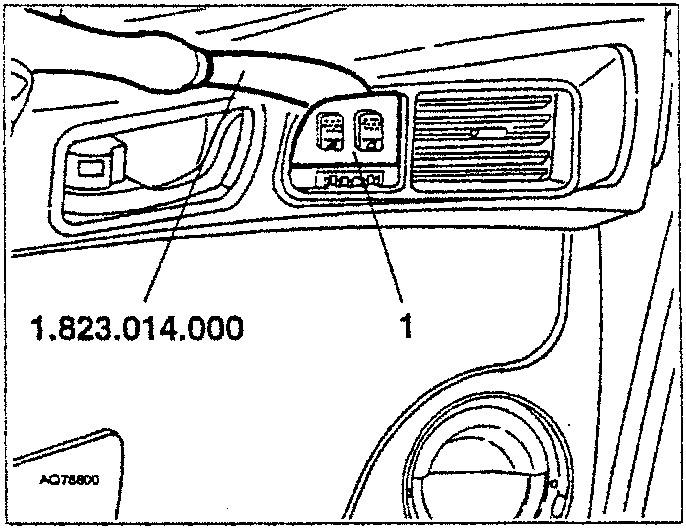

1. Using tool no. 1.823.014.000, remove the power window switches complete with plate from the housing.

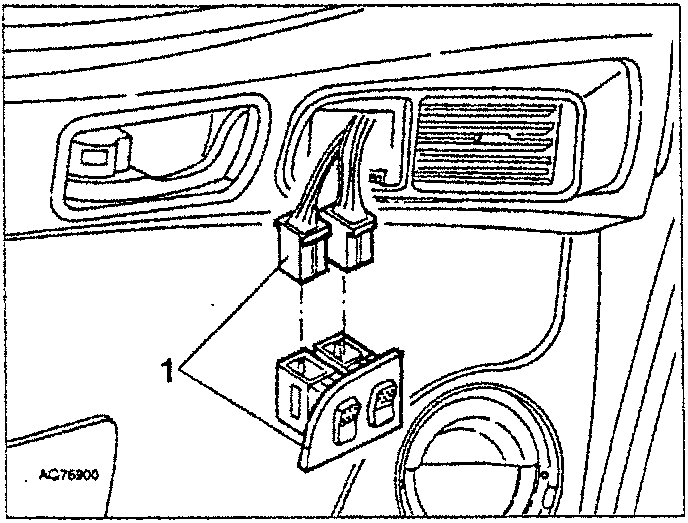

1. Disconnect the electrical connections from the power window switches and remove them.

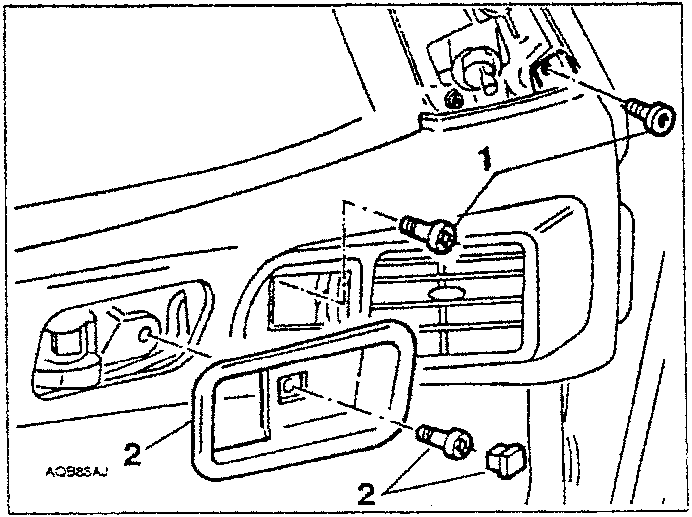

1. Slacken and remove the fastening screws to be found under the rearview mirror plate and in the switch compartment.
2. Remove the plastic cap, slacken the fastening screw and using knife 1.823.014.000 remove the door opening handle plate.
