146 bodyworkProtections

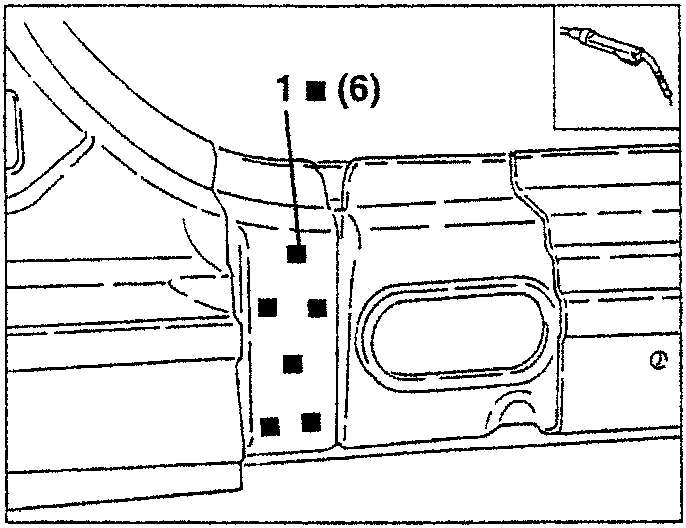

  1. Using a MIG welder operate as illustrated.
Diagram showing welding area with numbered parts

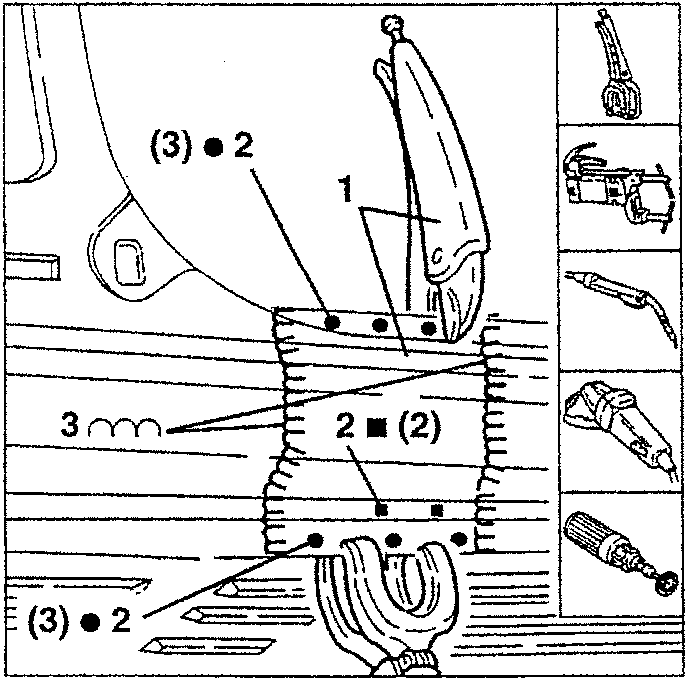

  1. Position the plug removed previously fastening it with clamps.
  2. Using a spot welder or, where necessary an MIG welder, operate as illustrated.
  3. Using an MIG welder, seam weld as illustrated.
    • Using an abrasive grinding wheel, remove and level welding remains.
    • Using a rotary brush, clean the welded areas.
Diagram showing plug installation with numbered parts

PROTECTIONS

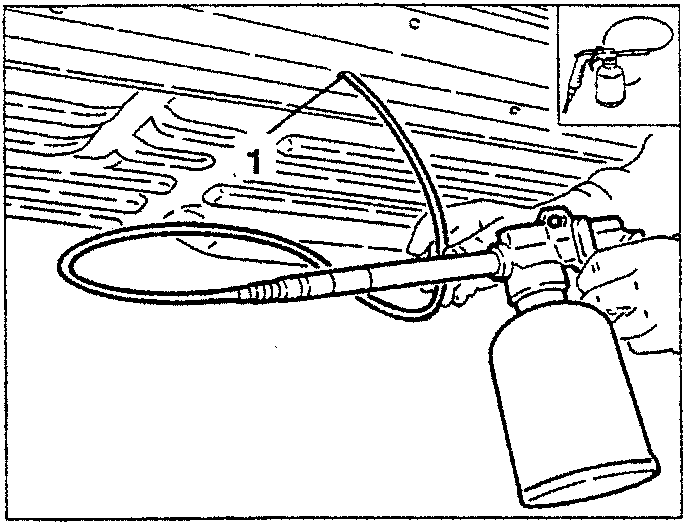

  1. Apply the specified antirust on the areas involved MIG welding through the holes illustrated.
Diagram showing sealant application along underdoor trim joint

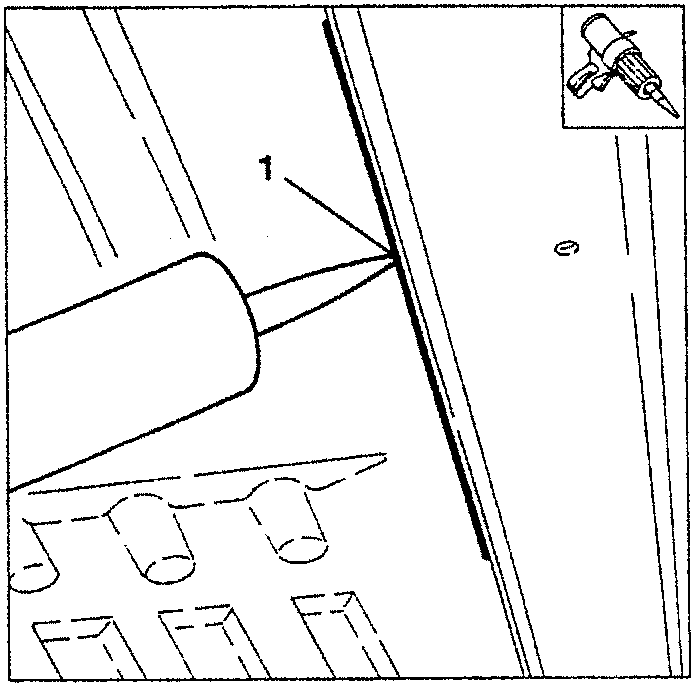

  1. Apply the specified sealant along the joint of the underdoor trim with the floor as illustrated.
Diagram showing underbody protection application

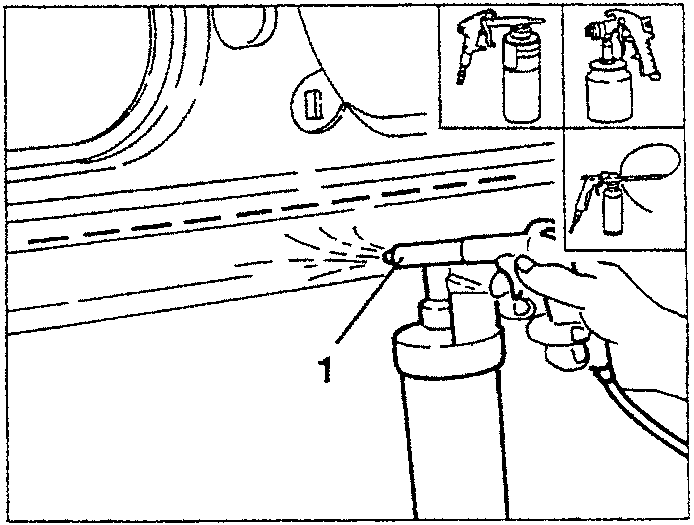

  1. Apply the underbody protection in the area of the underbody involved by the replacement.
    - Proceed with painting.
    - Wax the boxed sections.
Diagram showing spray application for underbody protection
