146 bodyworkProtections

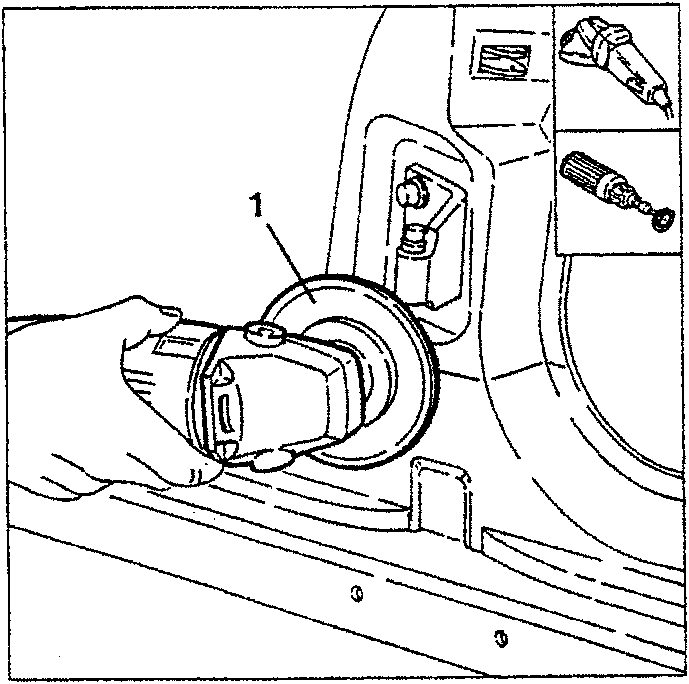

  1. Using an abrasive grinder remove and level remains of welding.
  • Using a rotary brush clean the welded areas.
Illustration showing a hand using an abrasive grinder on a car body panel, with inset images of tools including a rotary brush and drill bit.
  1. part name

PROTECTIONS

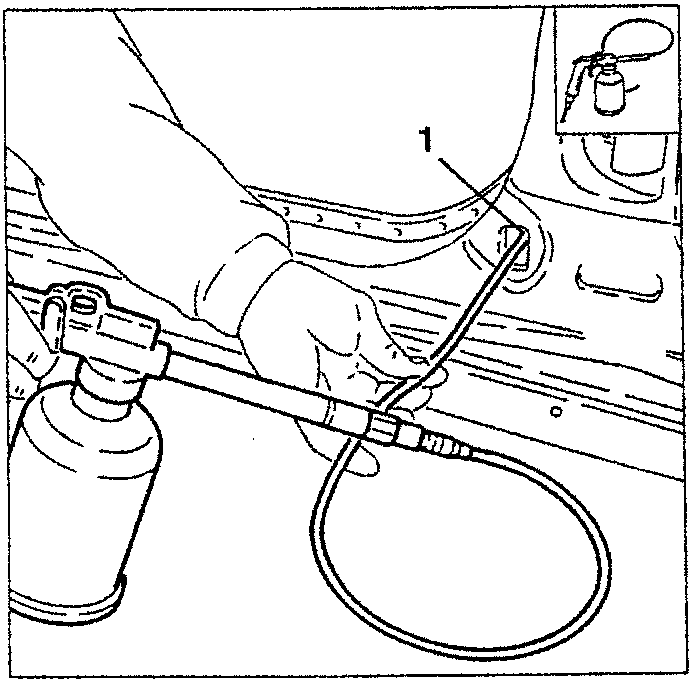

  1. Apply the specified antirust on the areas involved by MIG welding.
Illustration showing a hand applying sealant from a spray gun to a car body panel, with inset images of tools including a spray gun and hose.
  1. part name

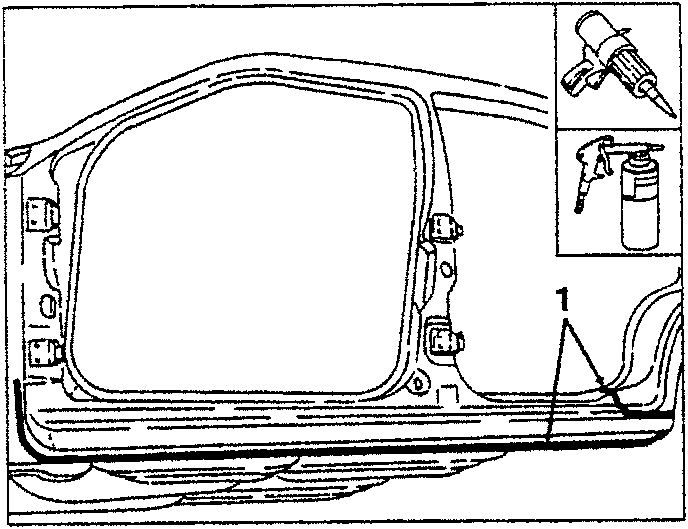

  2. Apply the specified sealant along the lines illustrated.
  • Apply the underbody protection specified in the areas involved in the replacement.

UNDERDOOR FRAME (WITH UNDERDOOR TRIM REMOVED)

REMOVAL

Car door frame with sealant application tools shown

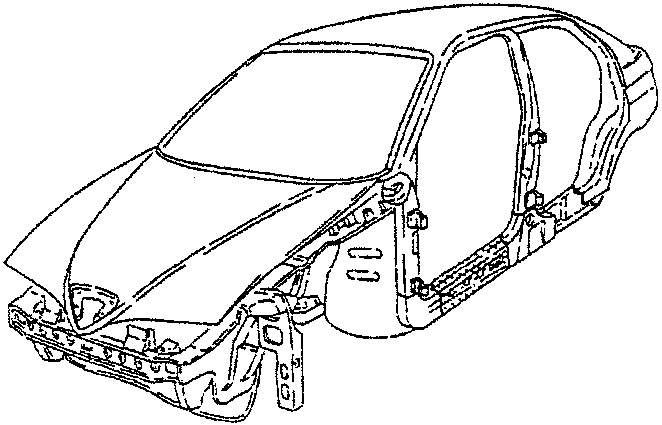

Illustration showing a car body with the underdoor frame exposed, indicating the area of removal.
  • Proceed with painting.

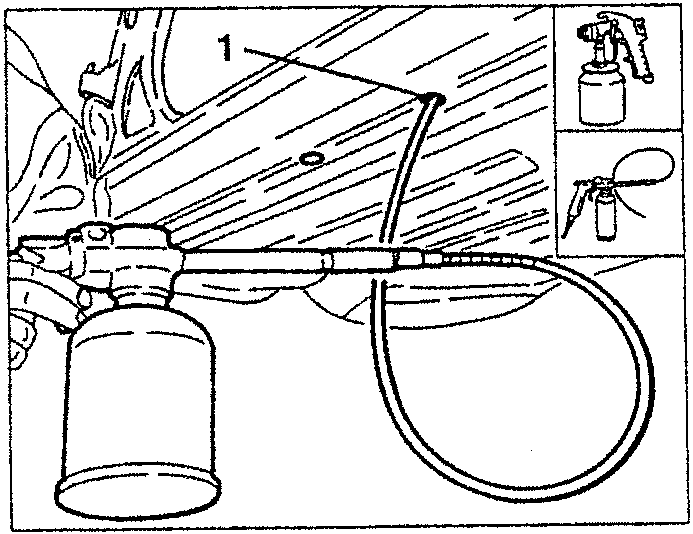

  1. Proceed with waxing of the boxed sections through the holes shown.
Illustration showing a spray gun applying wax to a car body panel, with inset images of tools including a spray gun and hose.
  1. part name
