Protections
- Make
- Alfa Romeo
- Model
- 145/146 Engines, 146 Bodywork and Engine Overhaul Manual
- Year
- 1994–2001
- Section
- Fixed bodywork components › Protections
146 bodyworkProtections
- Remove the assembled components to check for correct positioning of the inner side frame.

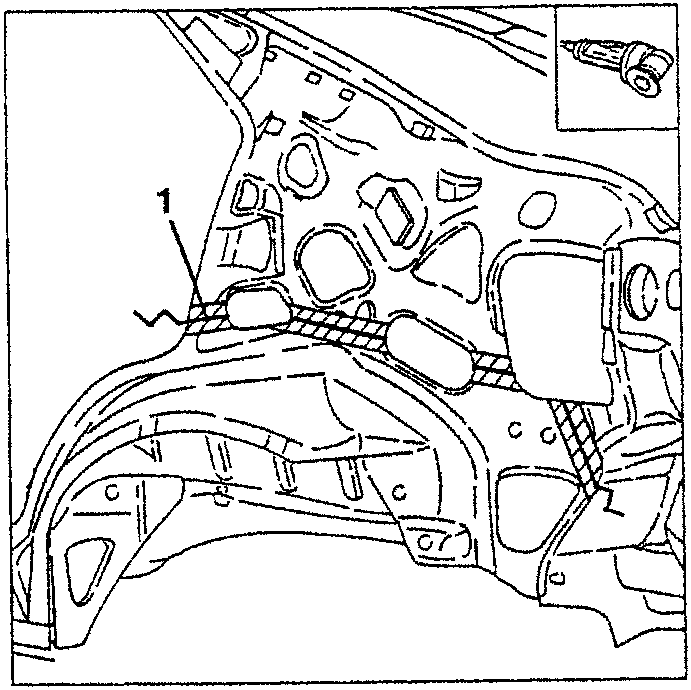

- Using a circular blade saw, trim the sheet metal eliminating the excess, without damaging the sheet metal below.
- Using an abrasive grinder remove and level remains of welding.
PROTECTIONS

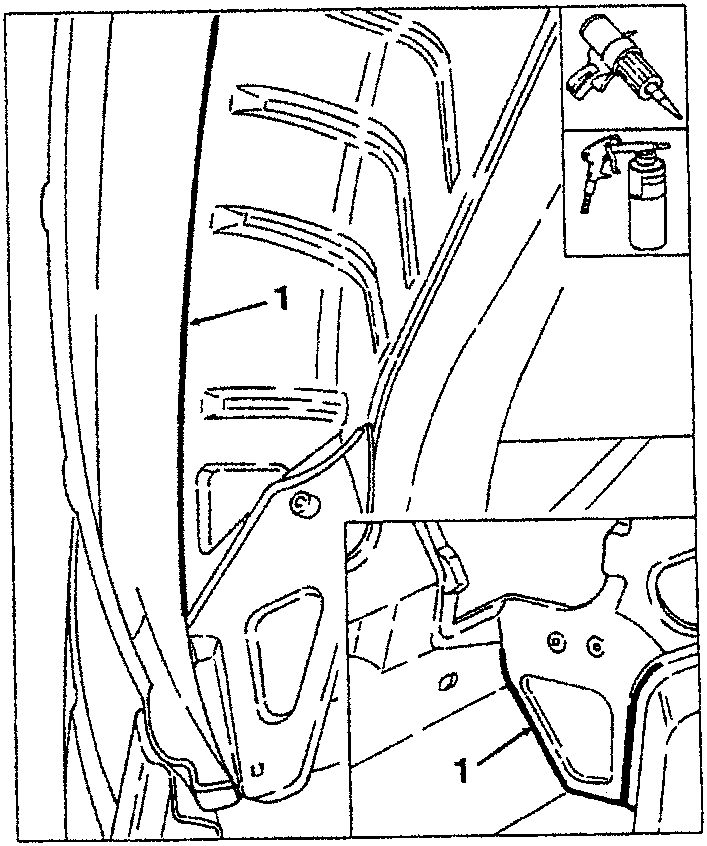

- Apply the specified sealant along the lines illustrated.
- Apply the specified underbody protection in the area of the wheelhouse involved by the replacement.
- Refit the rear mudguard working as described in the corresponding paragraph.
WELDING AND FINISHING OF SHEET METAL PIECE

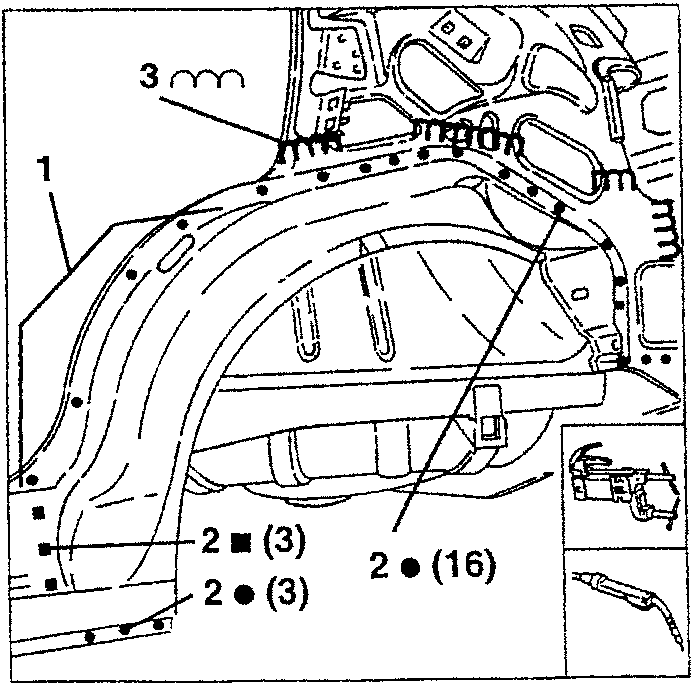

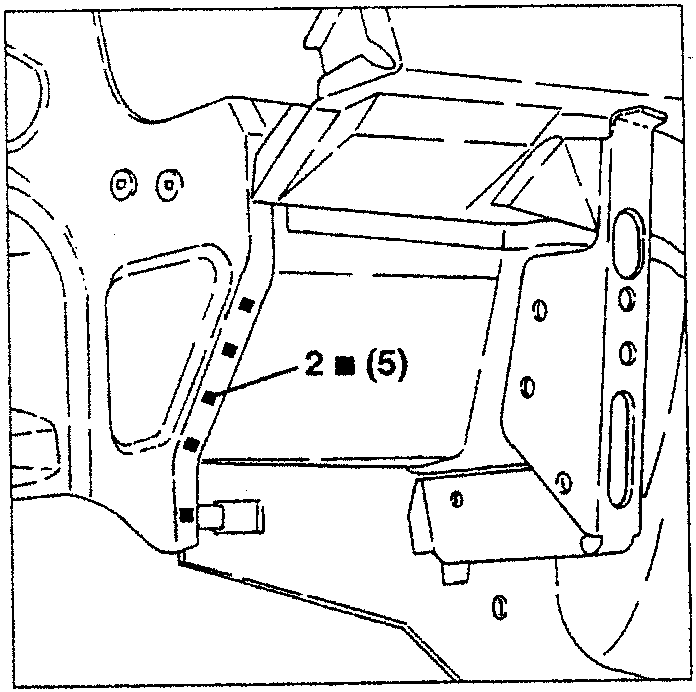

- Using a spot welder, proceed with tacking.
- Using a spot welder or where necessary, an MIG welder, proceed as illustrated.
- Using an MIG welder, seam weld as illustrated.
