146 bodyworkRear mudguard

REAR MUDGUARD

PRELIMINARY OPERATIONS

  • Disconnect the battery (-) terminal and remove the electronic control units.
  • Remove the trim components, electric and mechanical systems that might hinder the repair operation or suffer damage during work (see specific paragraphs).
  • Remove the following sheet metal parts:
  • rear door on the side concerned (see specific paragraph)
  • deck lid (see specific paragraph).

REMOVAL

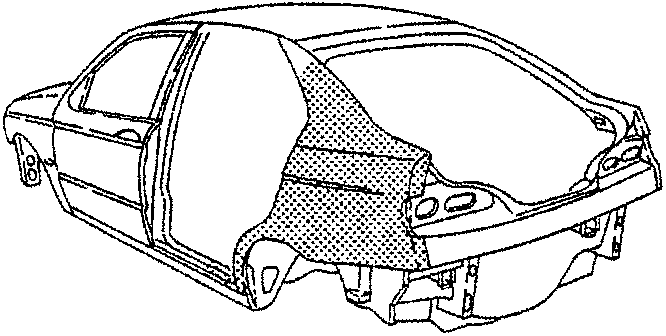

Car rear view showing mudguard area

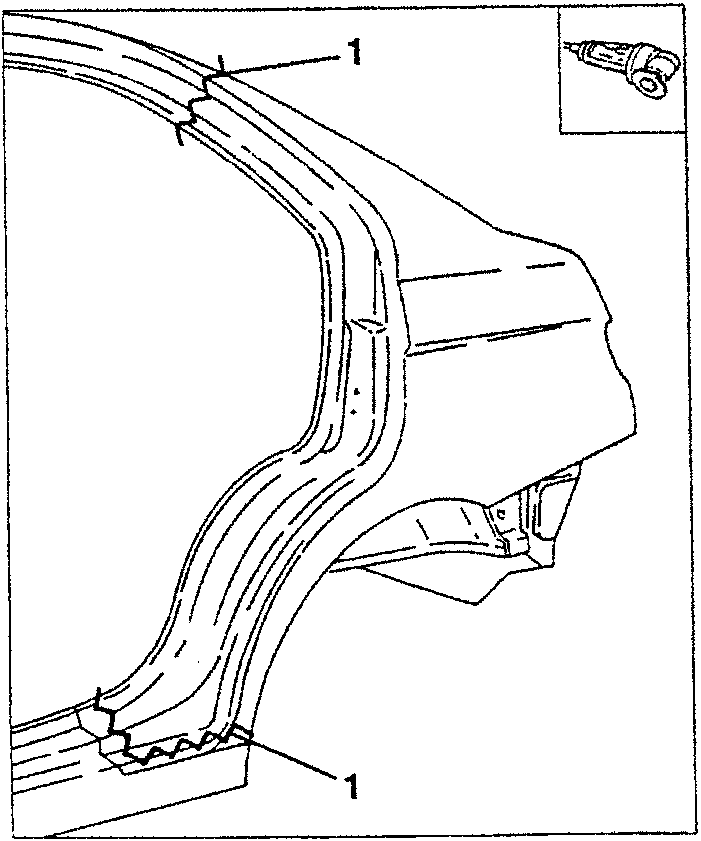

  1. Using a circular blade saw, cut along the line illustrated, without damaging the sheet metal below.
Close-up of mudguard weld seam with cutting line
  1. part name

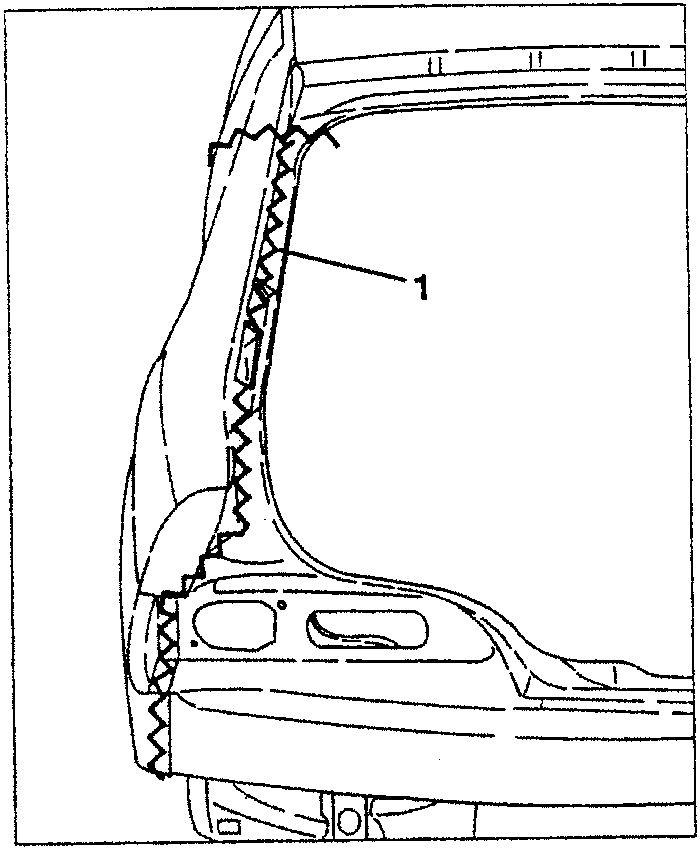

Close-up of rear mudguard weld seam
  • Using a rotary brush, clean the areas to be de-welded to reveal the welding spots.

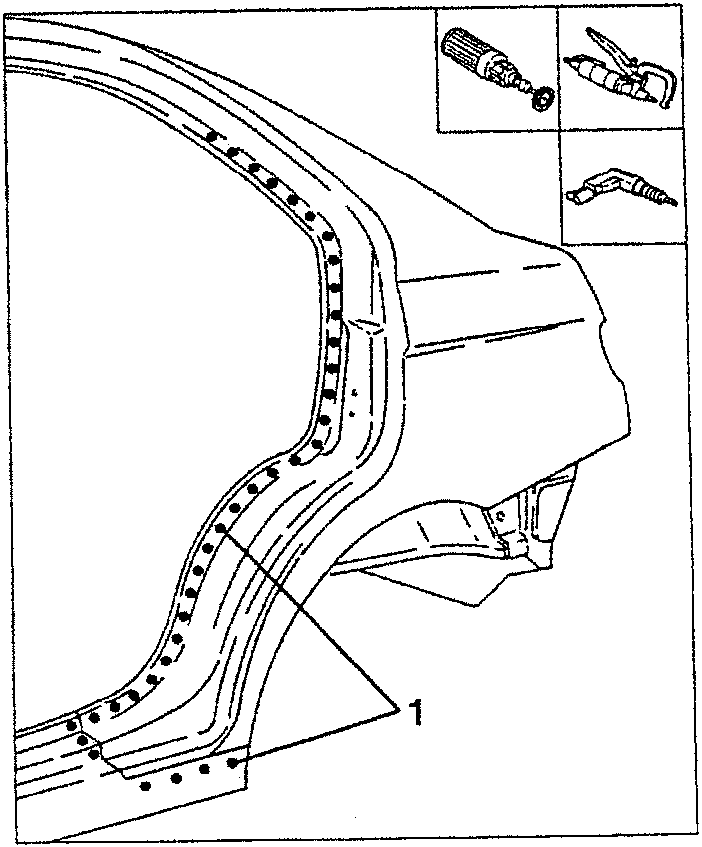

  1. Using a snipping machine, remove the accessible welding spots; remove the remaining welding spots using a drill.
Close-up of mudguard with welding spots marked
