Under door trim

UNDER DOOR TRIM

PRELIMINARY OPERATIONS

• Disconnect the battery (-) terminal and remove the electronic control units.
• Remove the trim components, electric and mechanical systems that might hinder the repair operation or suffer damage during work (see specific paragraphs).

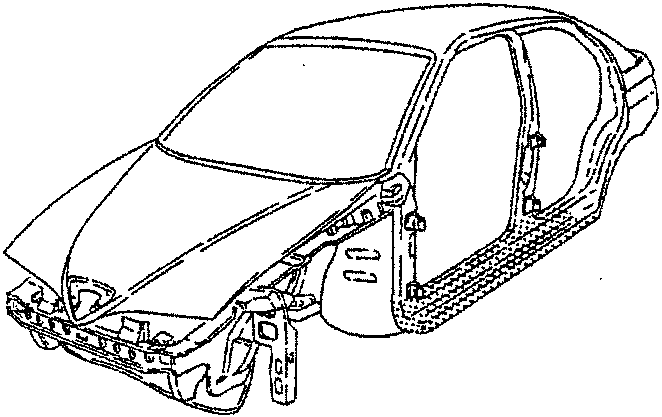

• Remove the following sheet metal parts:

• doors on the side concerned (see specific paragraphs).
• front mudguard on the side concerned (see specific paragraph).

REMOVAL

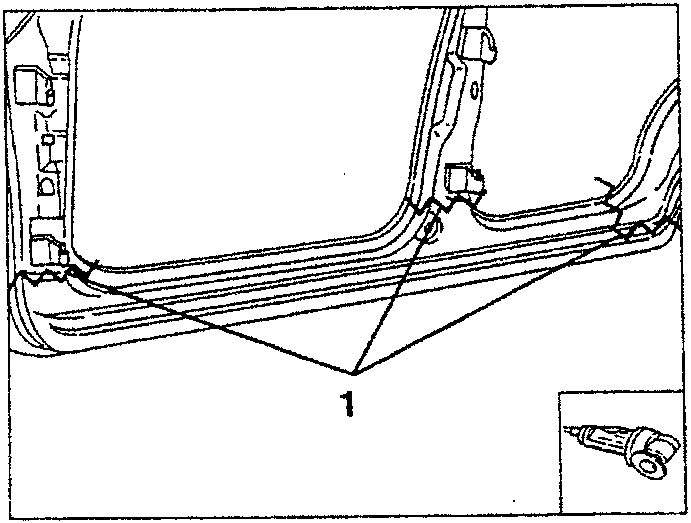

1. Using a circular blade saw, cut along the line illustrated, without damaging the parts below.

• Remove the underdoor trim, cutting the sealant if necessary.

PREPARATION

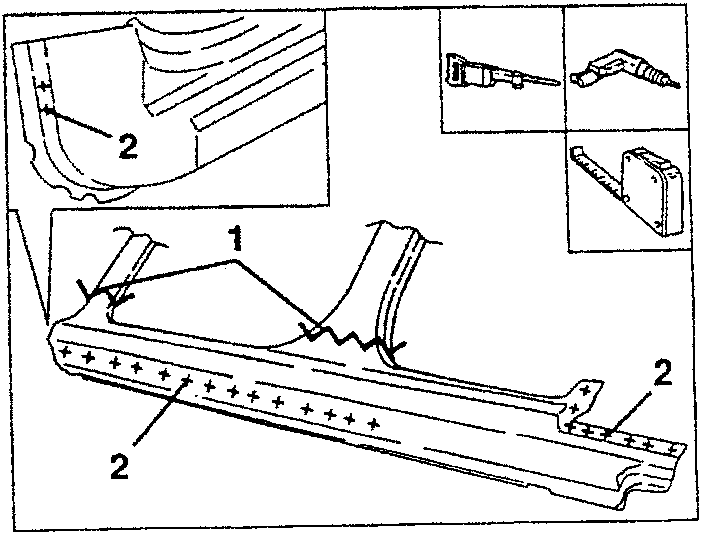

1. Working on the bench, with a reciprocating saw cut the new underdoor trim, keeping the same overlapping area.
2. Trace the trim and drill (bit Ø 5 mm), as illustrated.

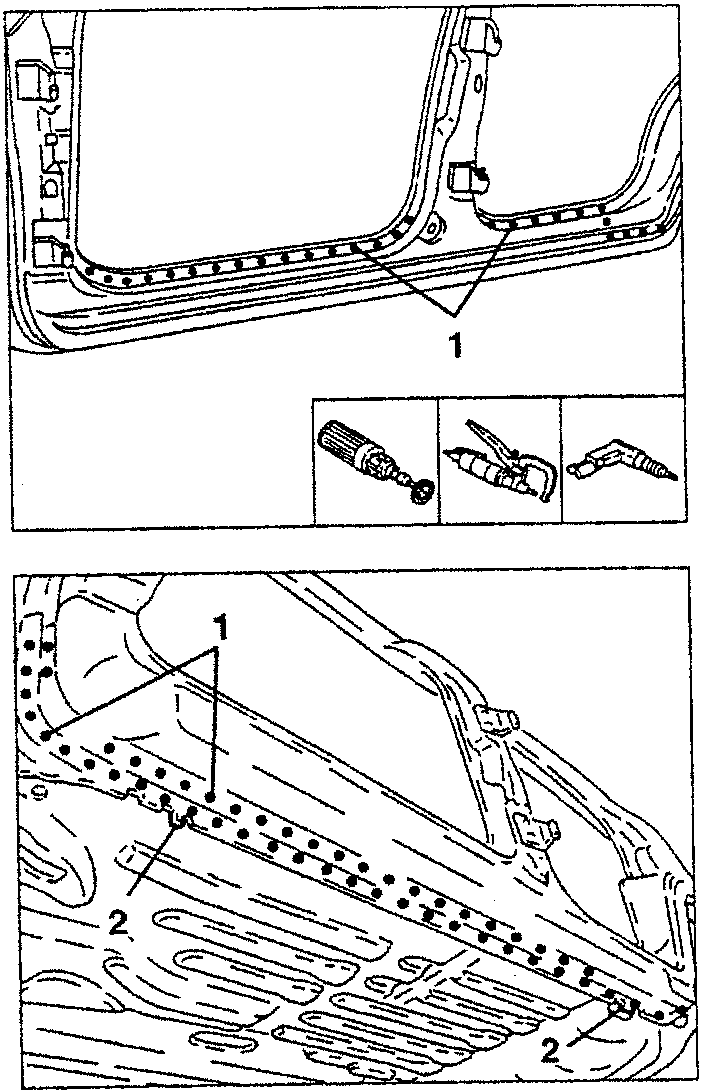

• Using a rotary brush, clean the areas to be de-welded to reveal the welding spots.

1. Using a snipping machine, remove the accessible welding spots; remove the remaining welding spots using a drill.
2. Open the clinching tabs.
