Preparation

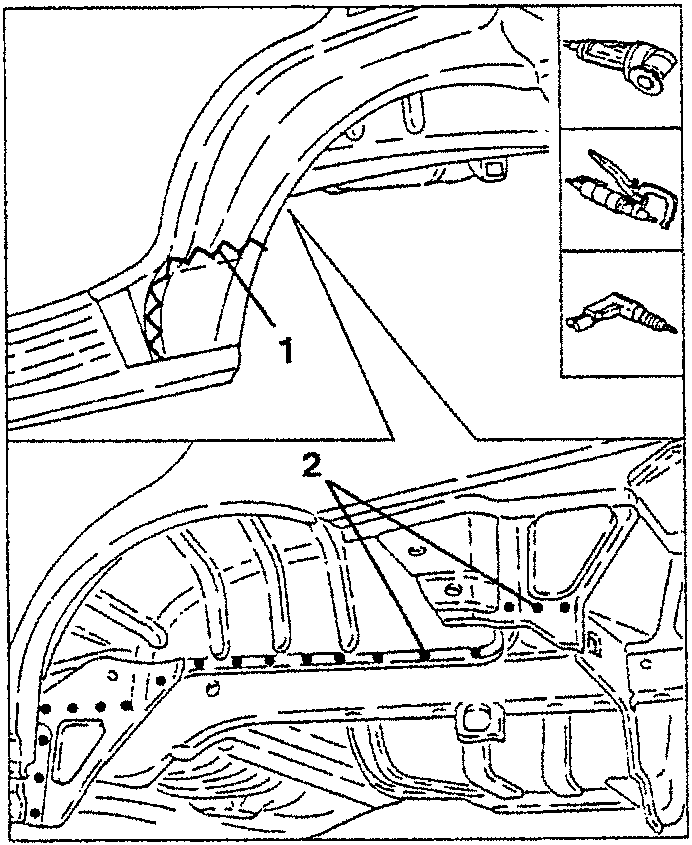

1. Using a circular blade saw, cut the sheet metal following the trace illustrated to gain access to the welding spots below.
2. Using a snipping machine, remove the accessible welding spots; remove the remaining welding spots using a drill.

• Remove the inner side frame complete with wheelhouse.

PREPARATION

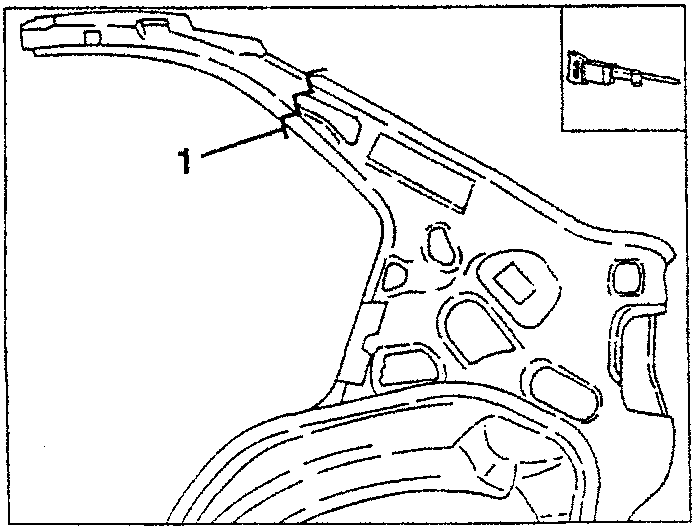

1. Working on the bench, with a reciprocating saw cut the new inner side frame complete with wheelhouse, keeping the same overlapping area.

• Using a rotary brush, clean the areas concerned by welding.

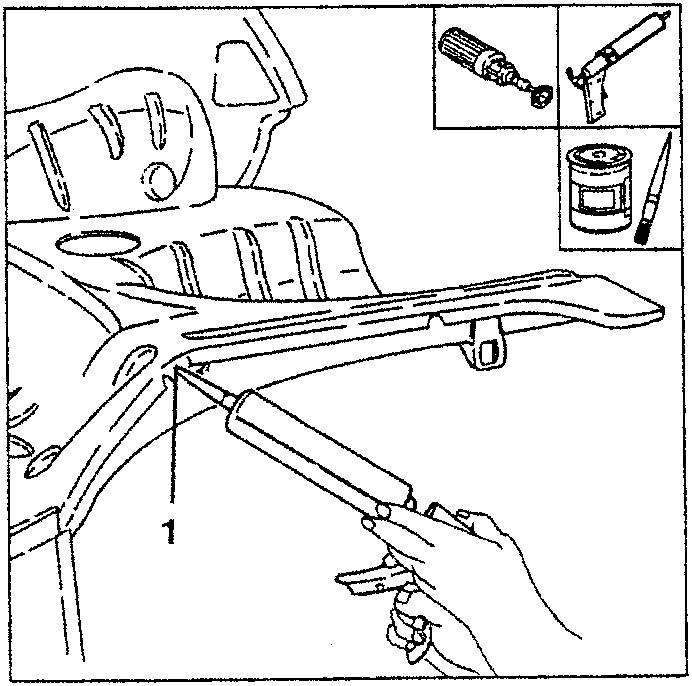

1. Apply the high thickness electric welding protection on all the wheelhouse and floor coupling parts.

• Apply the electric welding protection to be brushed on the remaining areas involved by spot welding.

POSITIONING AND CHECKING

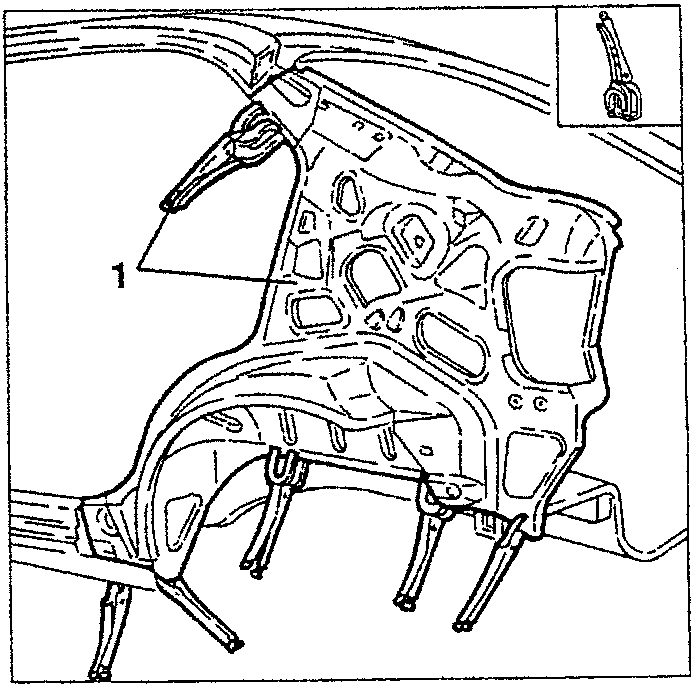

1. Position the inner side frame complete with wheelhouse joining the edges to be welded and fasten using clamps.
