Protections

PROTECTIONS

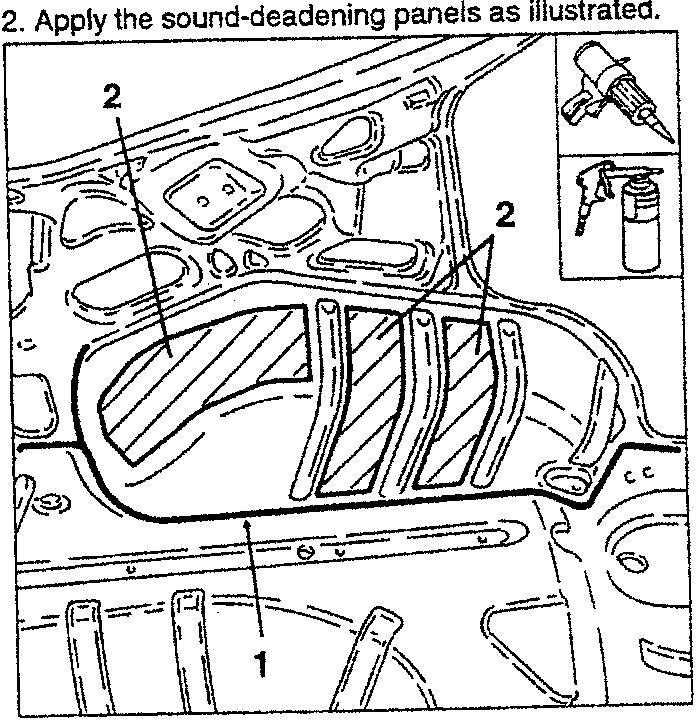

1. Apply the specified sealant along the lines illustrated.

• Apply the specified underbody protective coating in the area of the wheelhouse involved by the replacement.

2. Apply the sound-deadening panels as illustrated.

• Refit the rear mudguard and rear panel working as described in the corresponding paragraphs.

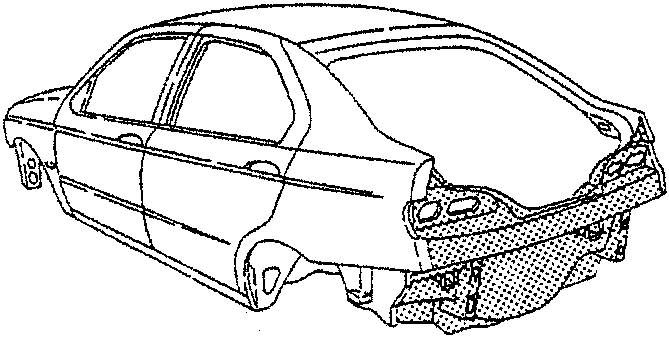

COMPLETE REAR PANEL

PRELIMINARY OPERATIONS

• Disconnect the battery (-) terminal and remove the electronic control units.
• Remove the trim components, electric and mechanical systems that might hinder the repair operation or suffer damage during work (see specific paragraphs).
• Remove the following sheet metal parts:

• boot lid (see specific paragraph).

REMOVAL

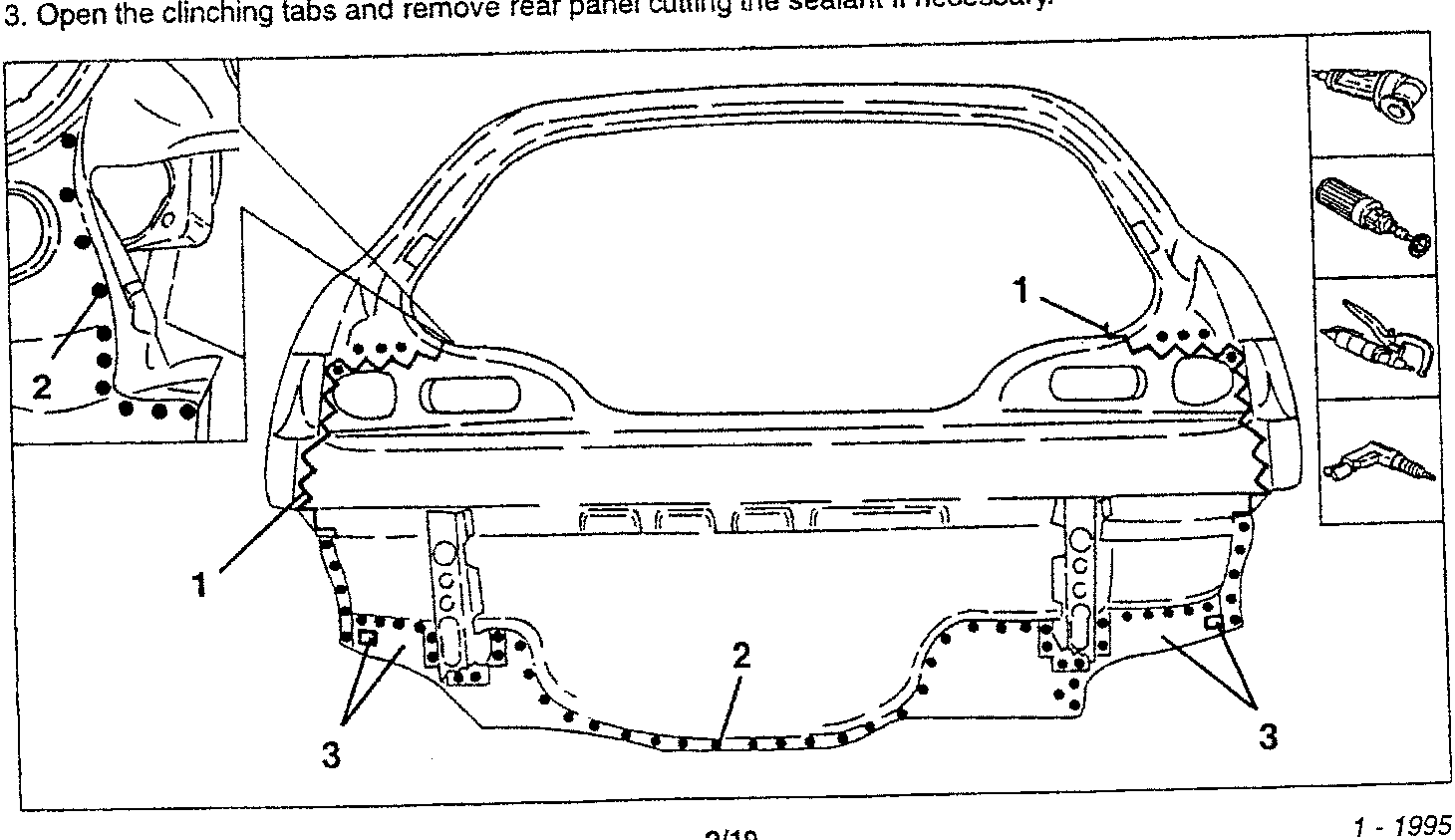

1. Using a circular blade saw, cut along the line illustrated, without damaging the sheet metal below.

• Using a rotary brush, clean the area to be welded to reveal the welding spots.

2. Using a snipping machine, remove the accessible welding spots; remove the remaining welding spots using a drill.

3. Open the clinching tabs and remove rear panel cutting the sealant if necessary.
