146 bodyworkProtections

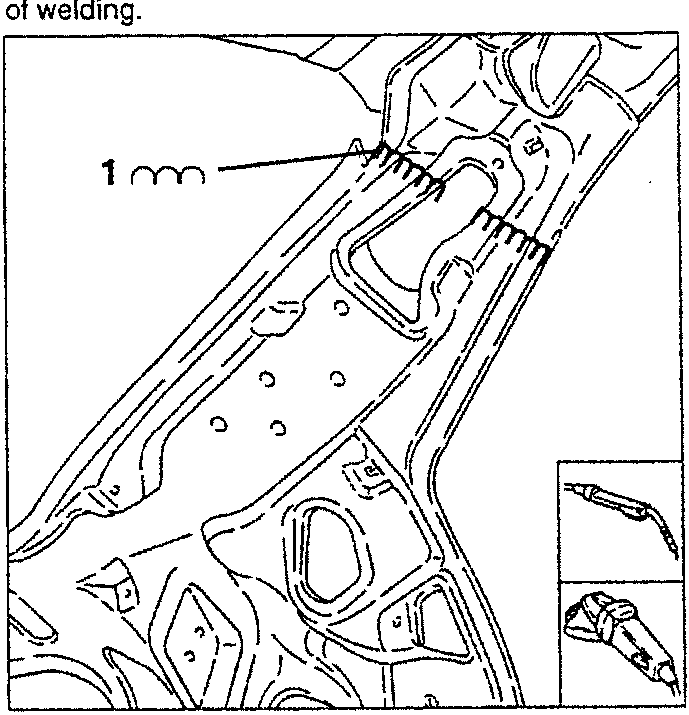

  1. Using an MIG welder, seam weld as illustrated.
  • Using an abrasive grinder, remove and level remains of welding.
Diagram showing seam welding area with grinder tool

PROTECTIONS

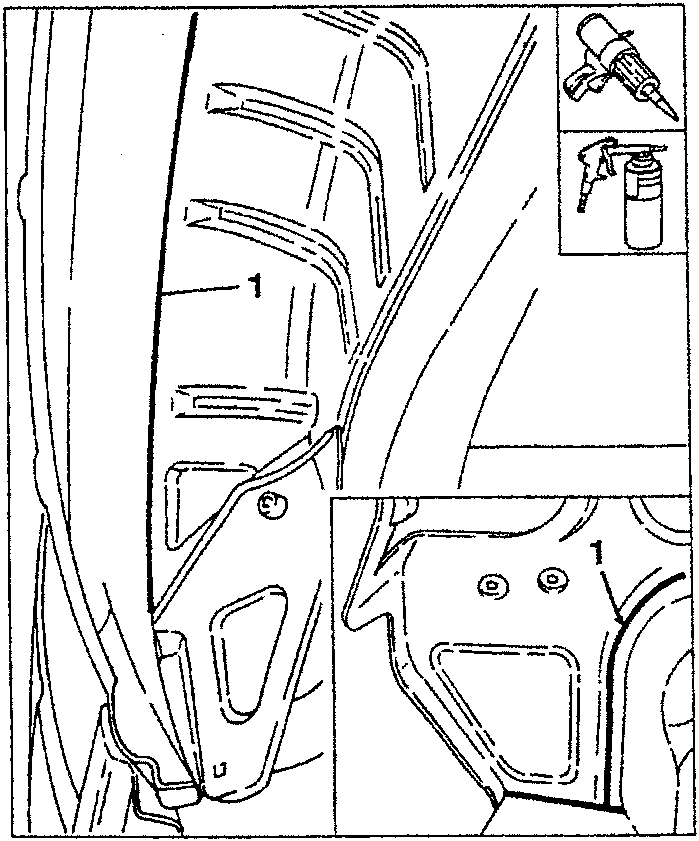

  1. Apply the specified sealant along the lines illustrated.
  • Apply the specified underbody protective coating in the area of the wheelhouse involved by the replacement.
Diagram showing sealant and protective coating application areas
  • Refit del rear mudguard and rear panel working in the corresponding paragraphs.

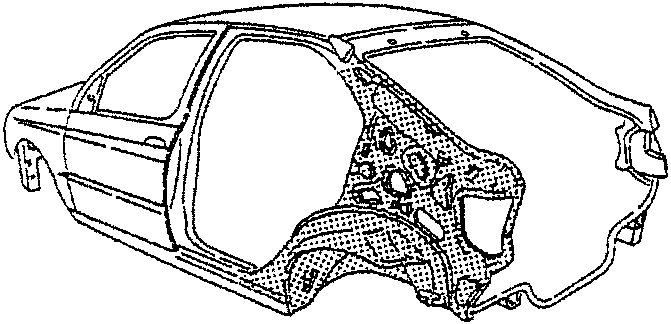

INNER SIDE FRAME WITH WHEELHOUSE (WITH REAR MUDGUARD AND REAR PANEL REMOVED)

REMOVAL

Diagram showing inner side frame with wheelhouse

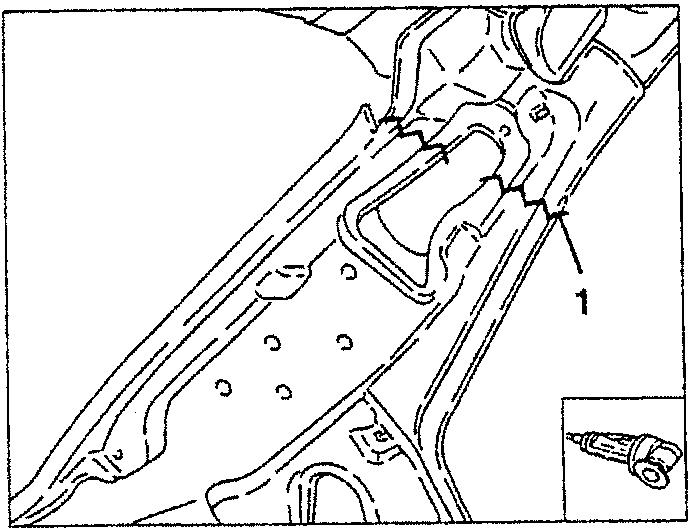

  1. Using a circular blade saw, cut along the line illustrated, without damaging the sheet metal below.
Diagram showing cutting line for removal
  • Using a rotary brush, clean the areas to be de-welded to reveal the welding spots.

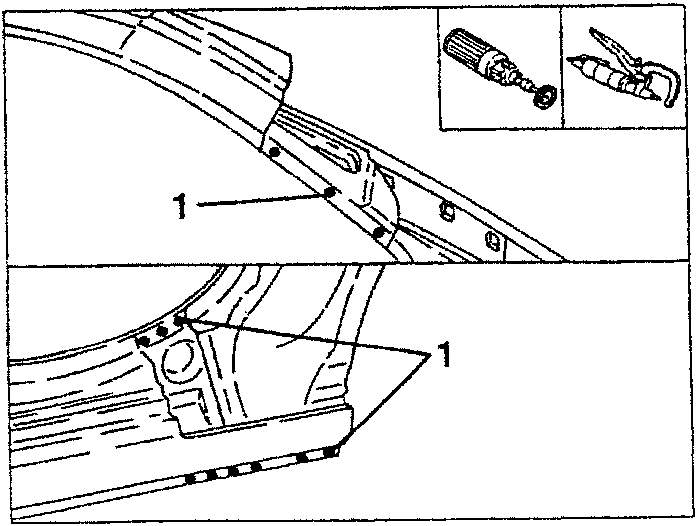

  1. Using a snipping machine, remove the welding spots.
Diagram showing snipping machine removing welding spots
