146 bodyworkProtections
  1. Using a spot welder, proceed as illustrated.
  2. Using an oxyacetylene blower, brass braze weld as illustrated.

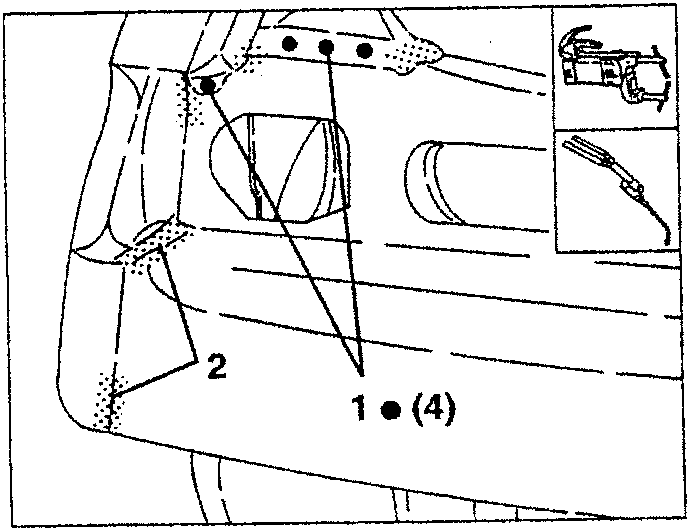

Illustration showing spot welding and brazing areas with numbered parts 1 (4) and 2
  1. part name
  2. part name

PROTECTIONS

  1. Apply the specified antitrust on the areas involved by MIG welding and braze welding.
  • Apply underbody protective coating in the area of the wheelhouse concerned by the replacement.
Engine block with bolt locations and part numbers indicated

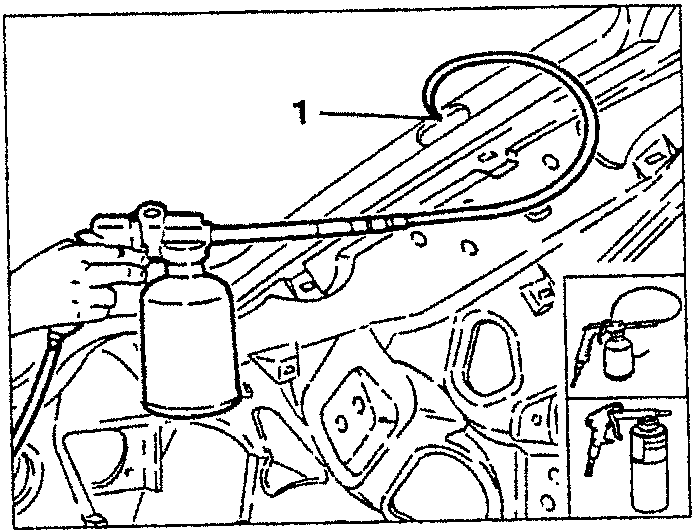

Illustration showing application of antitrust and protective coating using a blower and spray can
  1. Apply the specified sealant on the joints of the mudguard panels.

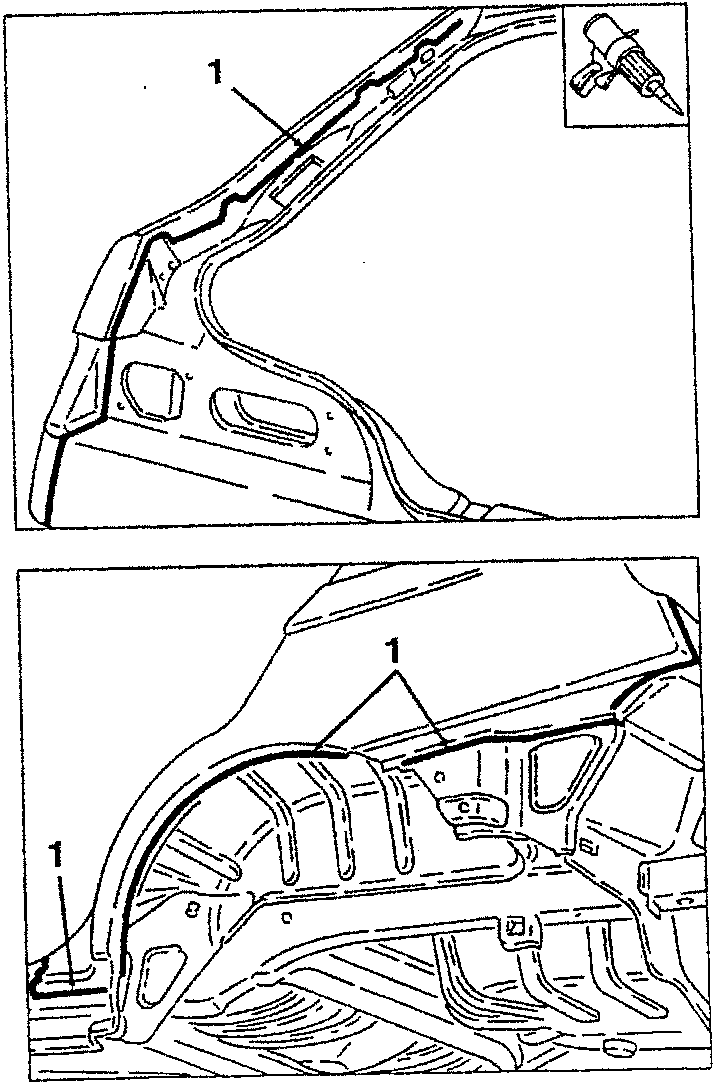

Illustration showing application of sealant along the joint of mudguard panels
  1. Using an abrasive grinder, remove and level remains of welding.
  • Using a rotary brush, clean the welded areas.

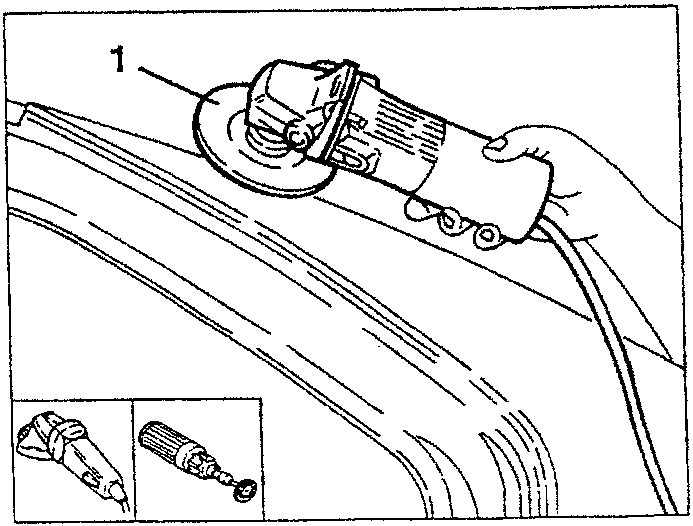

Illustration showing use of an abrasive grinder on a welded area
