146 bodyworkPartial outer rear panel
  1. Apply the specified sealant along the lines shown in the figure.

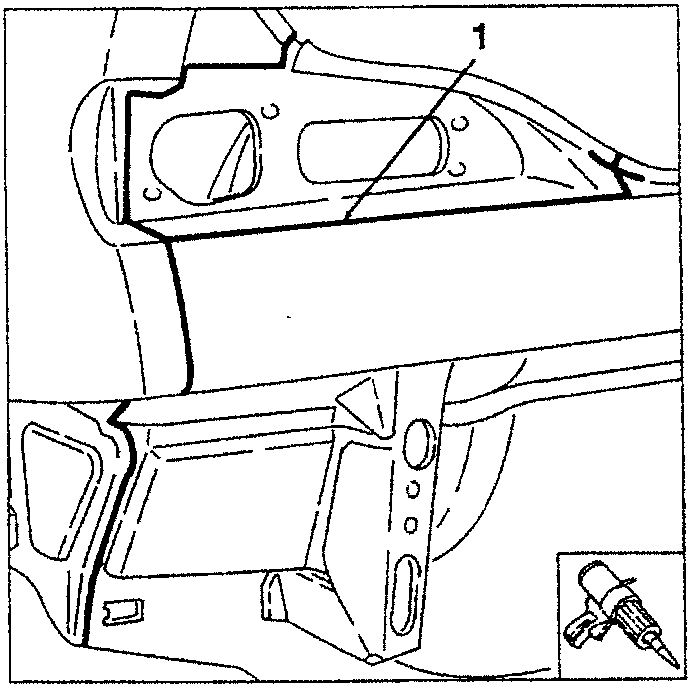

Diagram showing application of sealant along lines on a car body panel
  1. part name
  2. Apply the specified underbody protection in the area of the floor involved in the replacement and on the rear panel up to the dotted line illustrated.
  • Paint and wax coat.

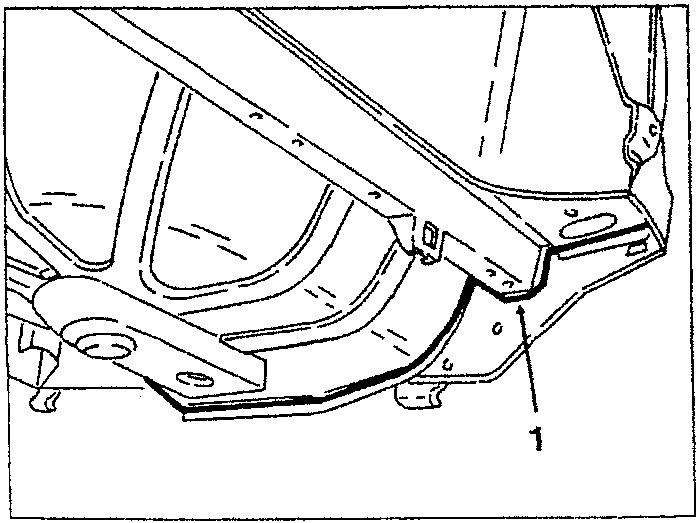

Illustrates rear bumper reinforcement bracket installation

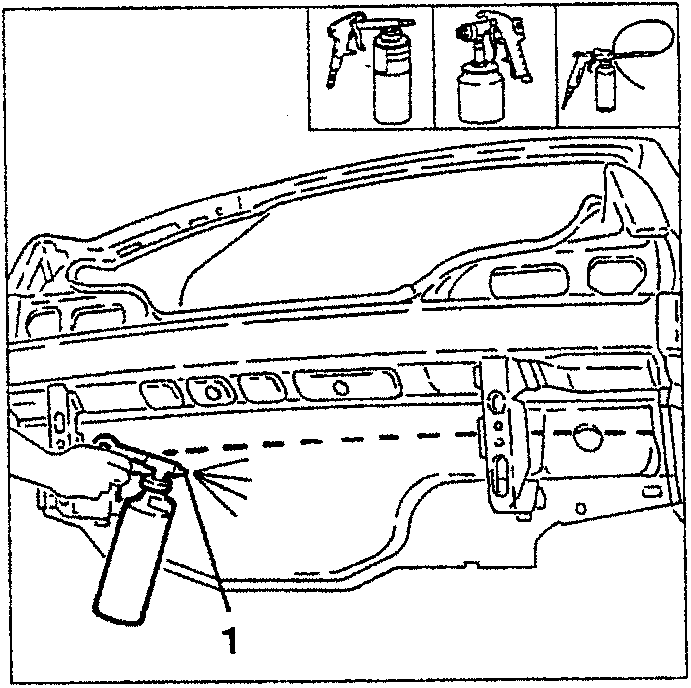

Diagram showing application of underbody protection spray on a car's rear panel

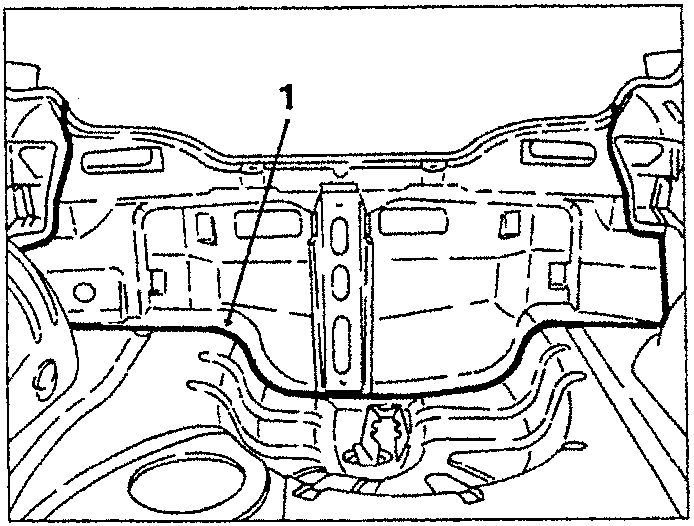

Diagram showing underbody components with a part labeled 1

PARTIAL OUTER REAR PANEL

PRELIMINARY OPERATIONS

  • Disconnect the battery (-) terminal and remove the electronic control units.
  • Remove the trim components, and electric and mechanical components that could hinder the repair operation or suffer damage (see specific paragraphs).
  • Remove the following parts:
    • bonnet lid (see specific paragraph).

REMOVAL

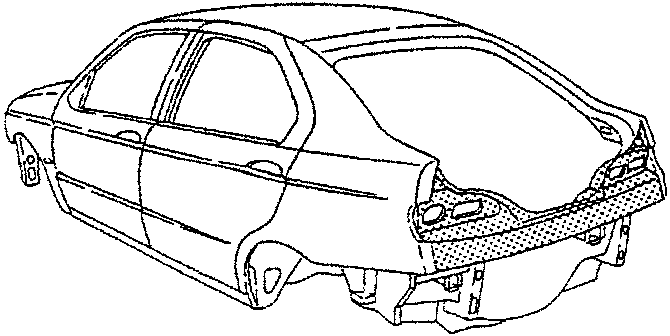

Diagram showing a car with the rear panel removed
