Workshop Manuals Factory service & repair Alfa Romeo
Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)04 · 146 bodywork
04 · Body & interior

Protections

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Fixed bodywork components › Protections
146 bodyworkProtections

Using a spot welder or, where necessary an MIG welder, proceed as illustrated.

  • Using a rotary brush, clean the welded areas.
  • Using an abrasive grinding wheel, remove and level the remains of welding.

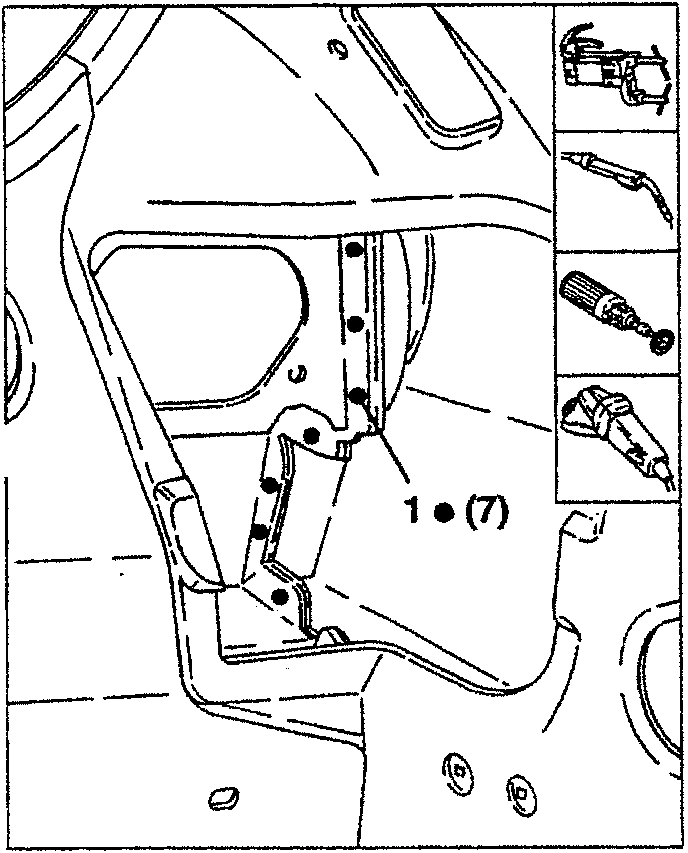

Welding area with tools shown

PROTECTIONS

  1. Apply the specified antitrust on the areas involved by MIG welding and braze welding.

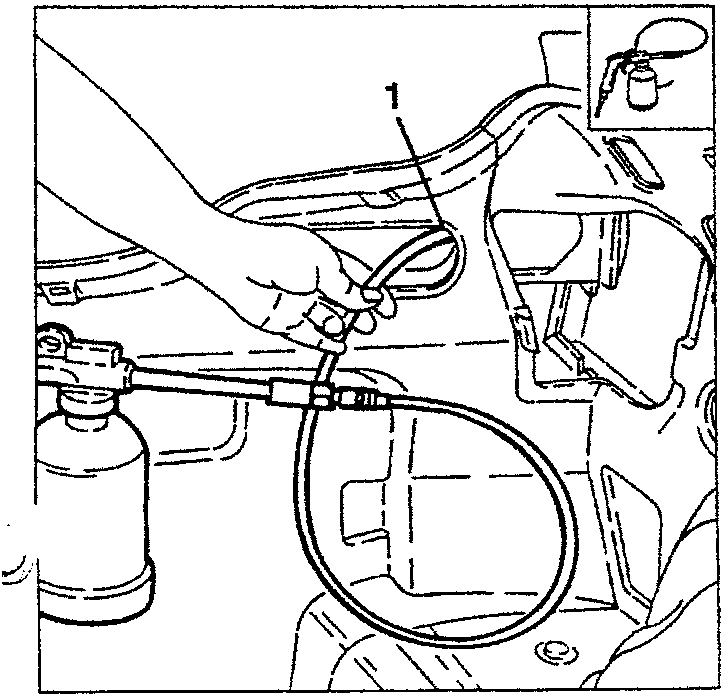

Applying antitrust with spray gun
  1. Apply the specified sealant along the lines illustrated.
  • Paint and wax coat.

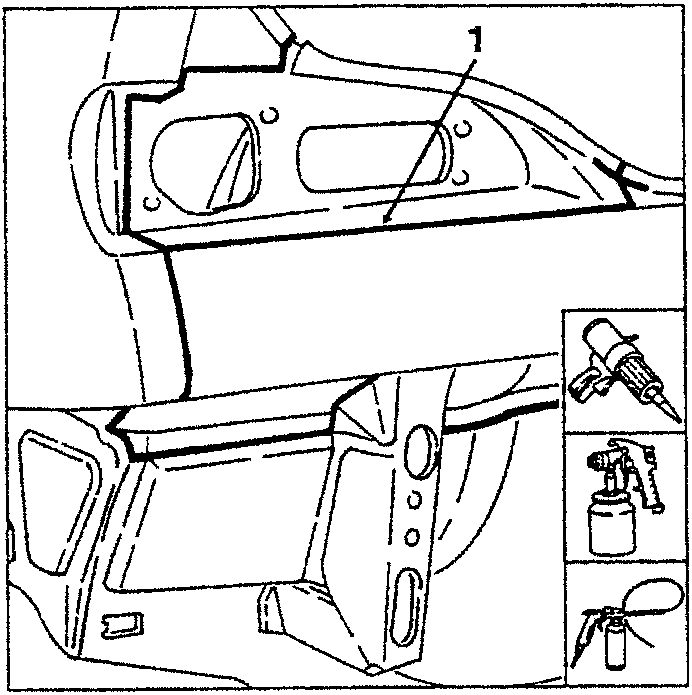

Sealant application area

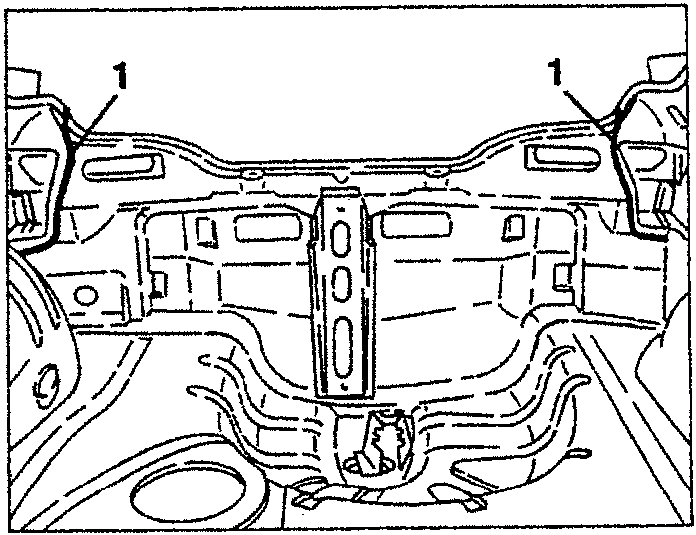

Interior bodywork with sealant lines
