Preparation

PREPARATION

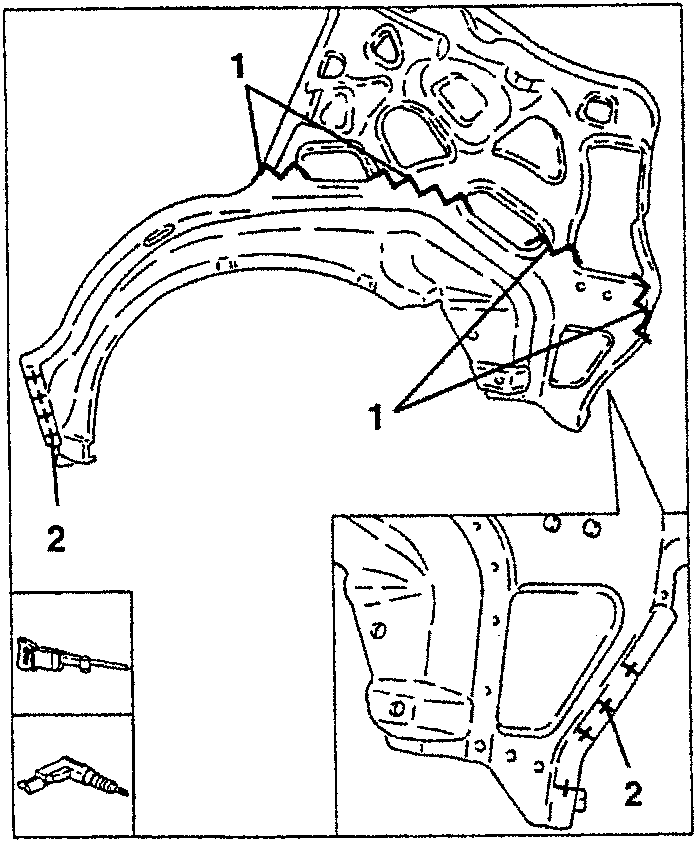

1. Working on the bench, with a reciprocating saw cut the new inner frame, keeping the same overlapping area.
2. Trace the inner side frame and drill (bit Ø 5 mm), as illustrated.

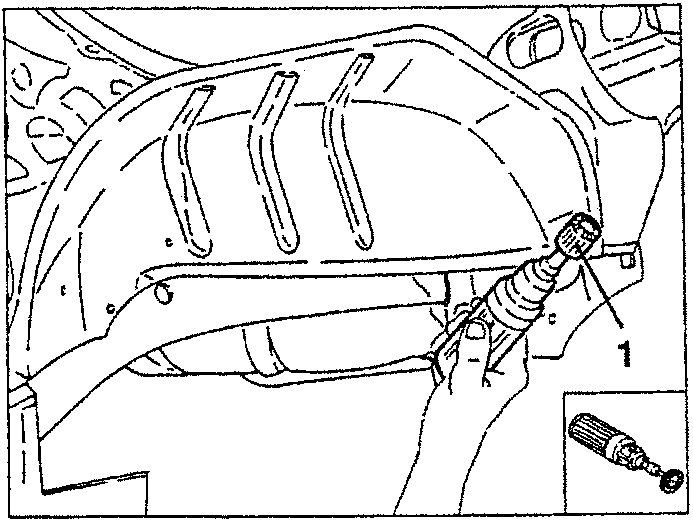

1. Using a rotary brush, clean the areas concerned by welding.

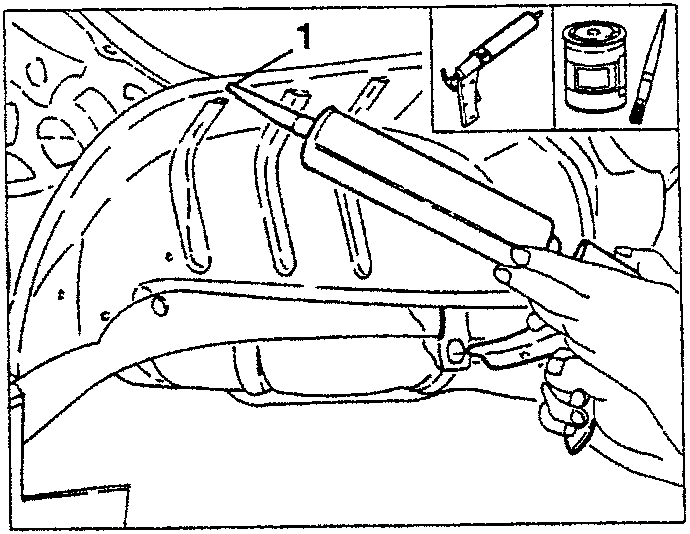

1. Apply the high thickness electric welding protective material on the parts coupling with the wheelhouse concerned by spot welding.
   - Apply the electric welding protection to be brushed on the remaining areas involved by spot welding.

POSITIONING AND CHECKING

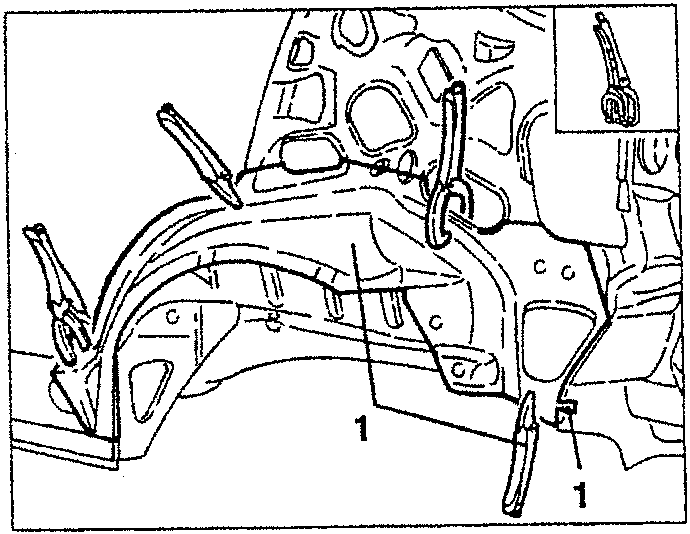

1. Position the partial inner side frame joining the edges to be welded and fasten using clamps and the clinching tab.

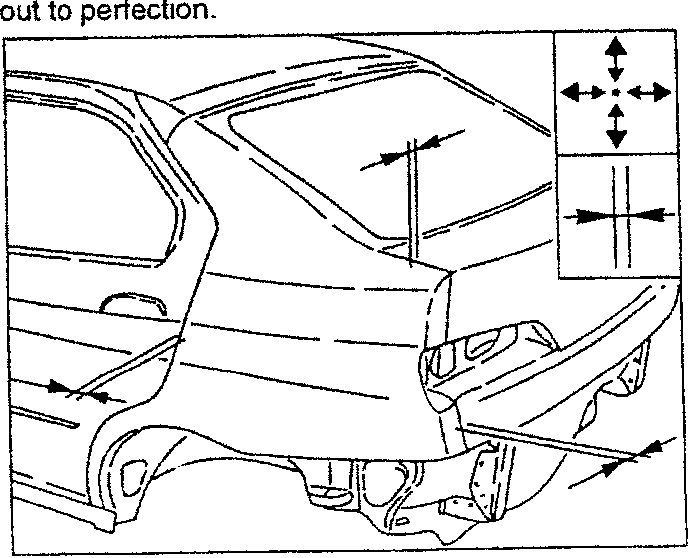

• Check the squareness, lights and angles refitting the components removed previously with the associated seals and parts which, once assembled make it possible to check that the operations have been carried out to perfection.
