Welding and finishing the panel

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Fixed bodywork components › Welding and finishing the panel

146 bodyworkWelding and finishing the panel

WELDING AND FINISHING THE PANEL

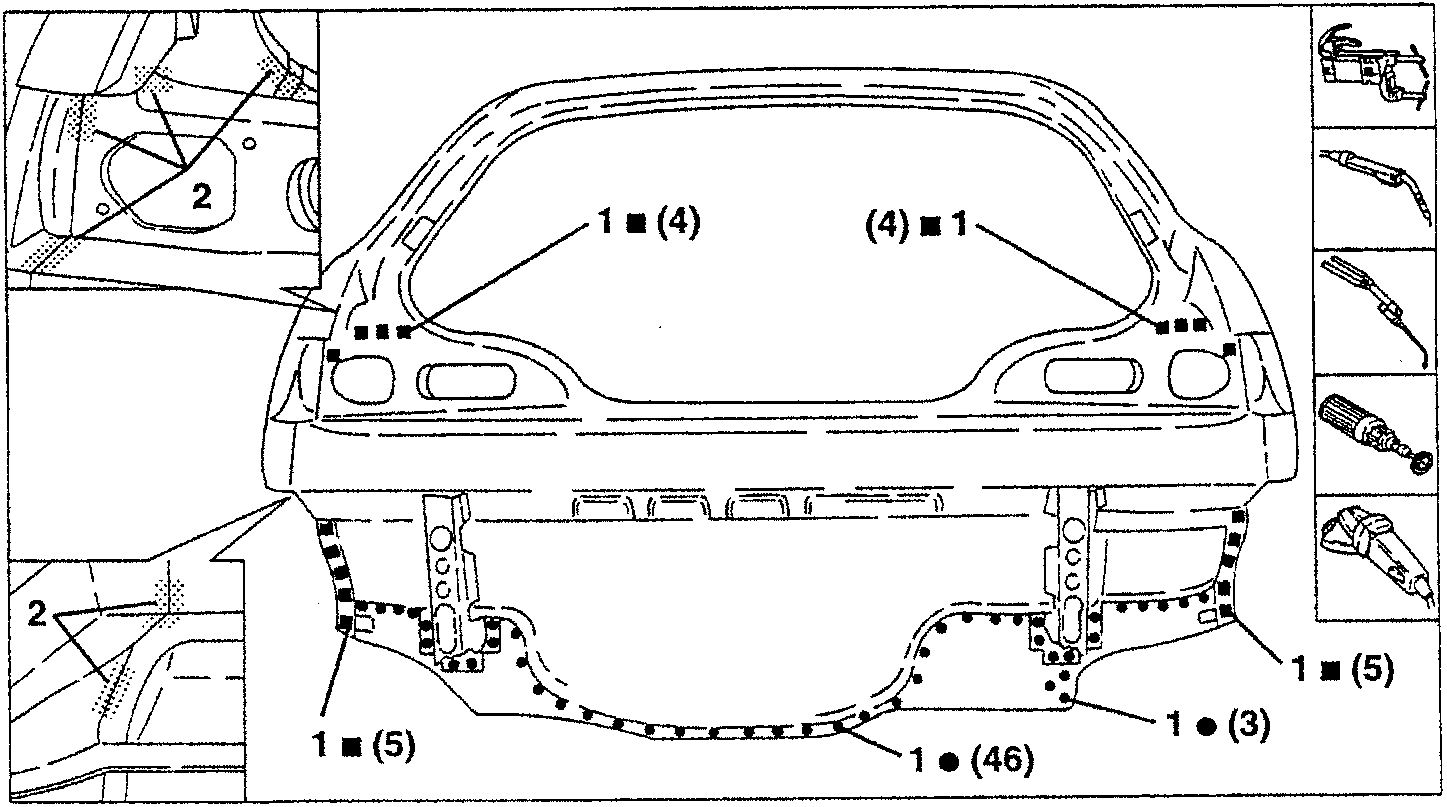

1. Using a spot welder or, where necessary, an MIG welder, work as illustrated.

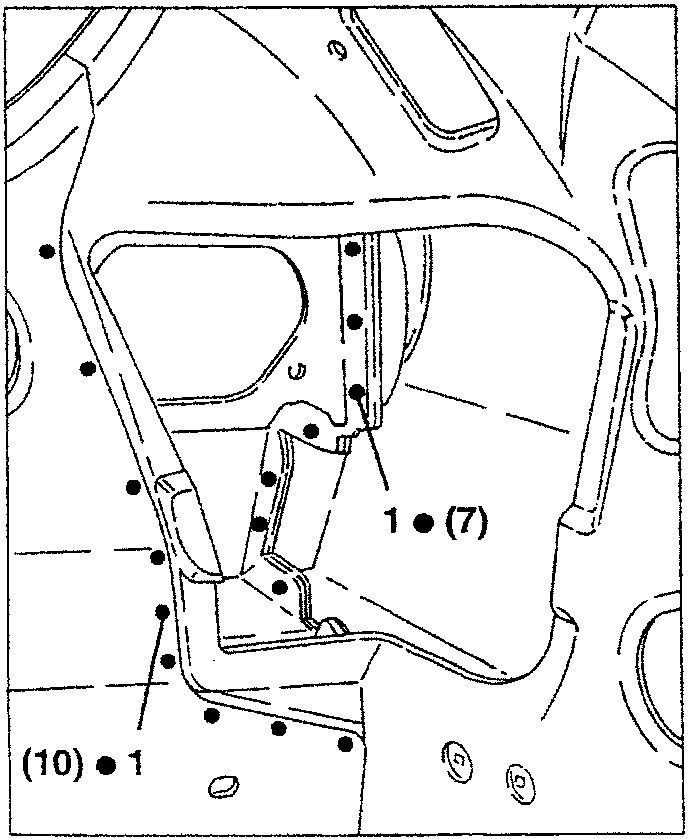

2. Using an oxyacetylene torch. brass braze weld as illustrated.

• Using a rotary brush, clean the welded areas.
• Using an abrasive grinding wheel remove and level the welding remains.

PROTECTIONS

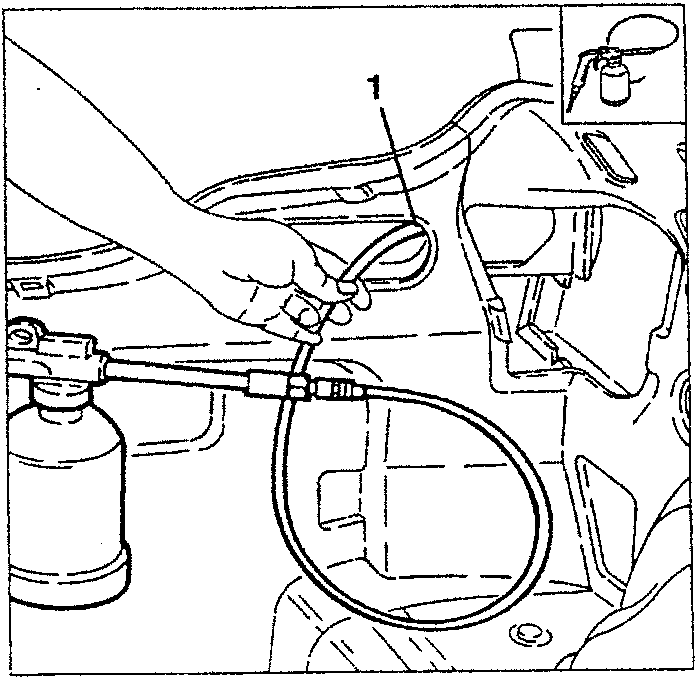

1. Apply the specified antitrust in the areas involved by MIG welding and braze welding.
