146 bodyworkPreparation · page 1 of 2

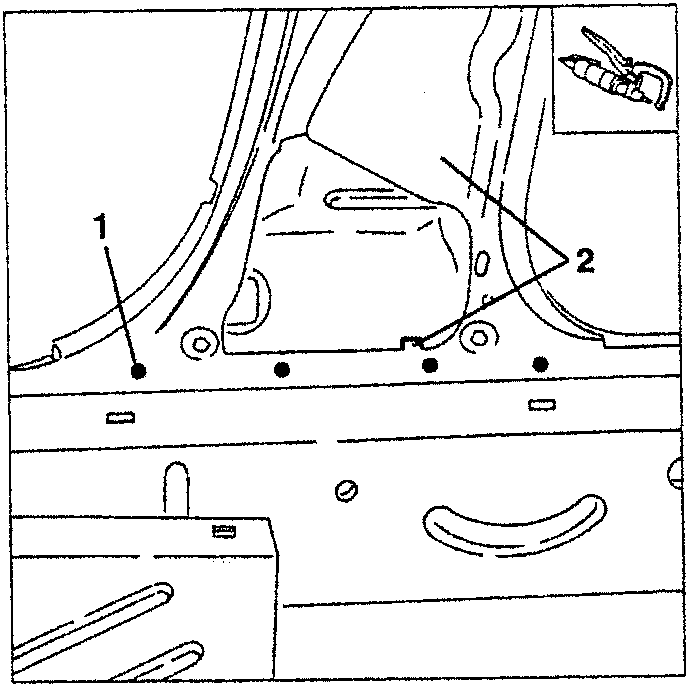

- Using a de-welder, remove the welding spots illustrated.
- Open the clinching tab and remove the centre pillar.
- part name
- part name

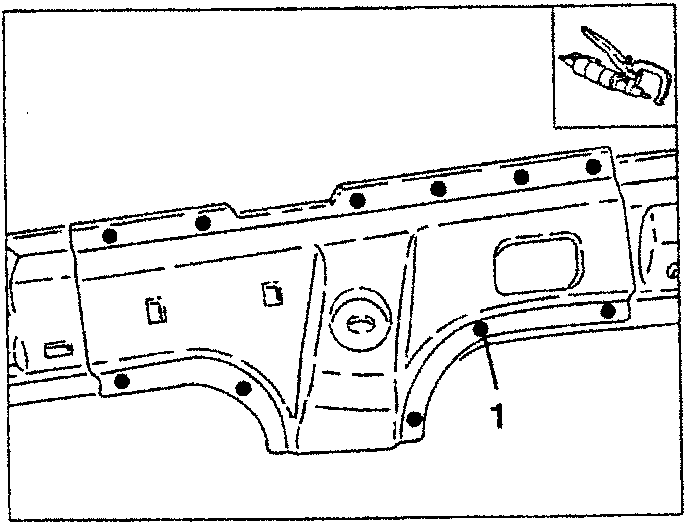

- Using a de-welder remove the welding spots illustrated and remove the upper part of the inner centre pillar trim.
- part name
PREPARATION
- Working on the bench and using a reciprocating saw, cut the outer pillar trim taking care to maintain the correct overlaying area.

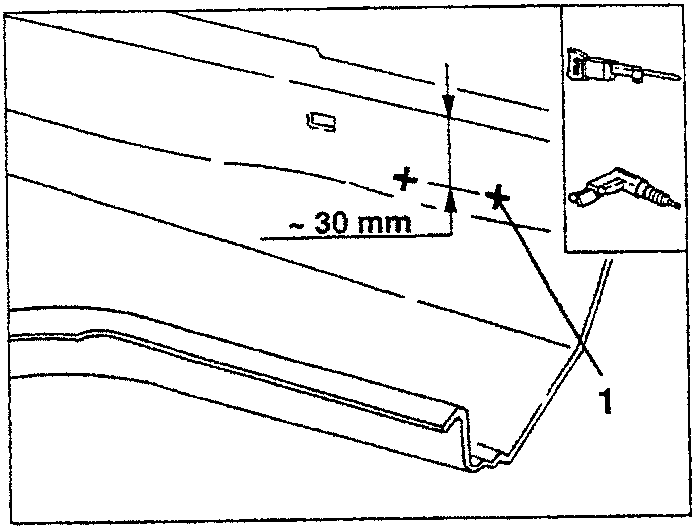

- Trace the outer pillar trim and drill (bit Ø 5 mm) as illustrated.

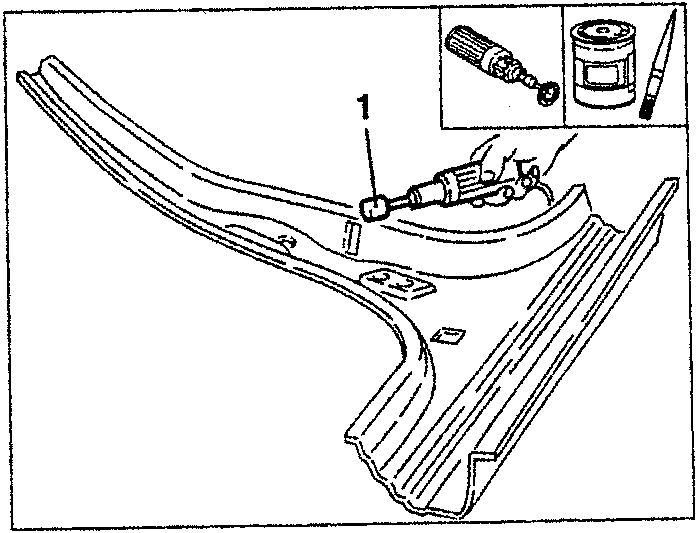

- Using a rotary brush, clean the areas of the trim and of the centre pillar frame involved by welding.
- Apply the specified electric welding protection on the areas involved by spot welding.

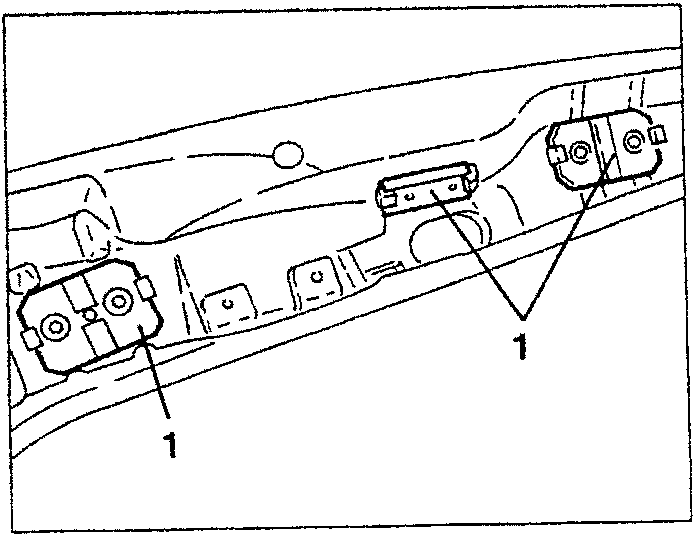

- Fit the pads for fastening the door hinges and the lock striker on the centre pillar frame.
