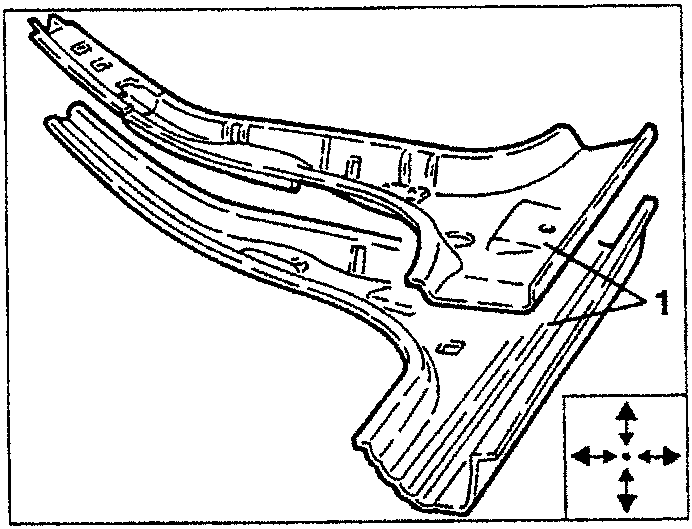

1. Assemble the frame on the centre pillar outer trim checking its correct coupling by the correspondence of the shared holes (hinge fastening pad holes, etc.)

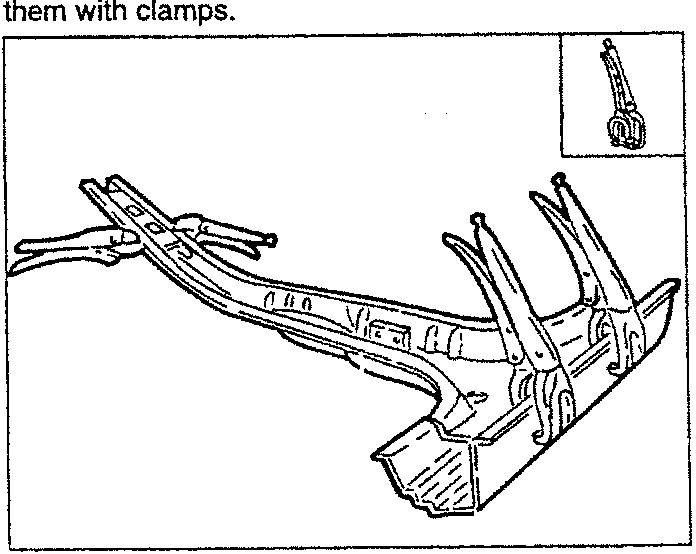

1. Join the edges of the parts to be welded and fasten them with clamps.

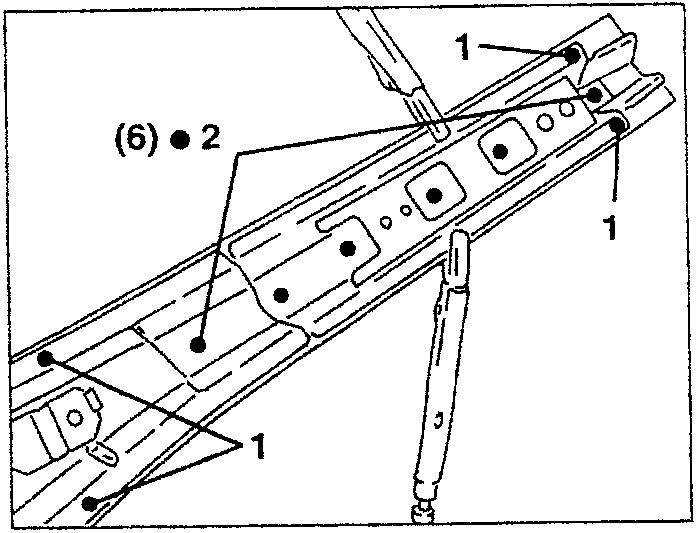

1. Using a spot welder, tack the frame on the outer trim as illustrated.

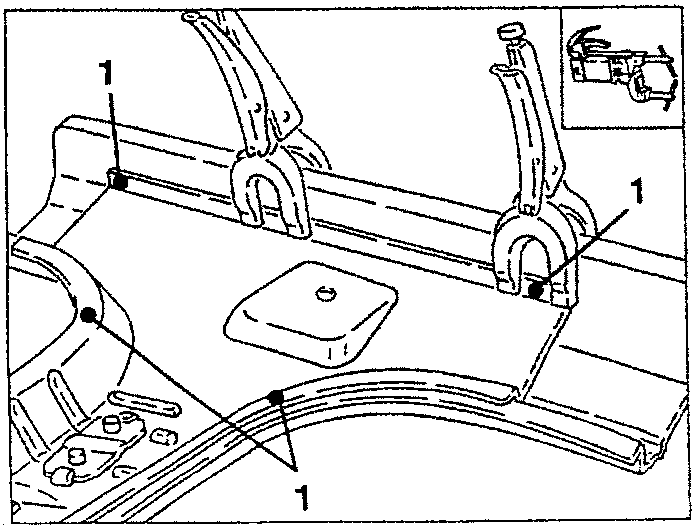

   2. Using a spot welder, operate as illustrated.

• Using a rotary brush clean the centre pillar inner trim and apply the electric welding protection on the areas involved by spot welding.

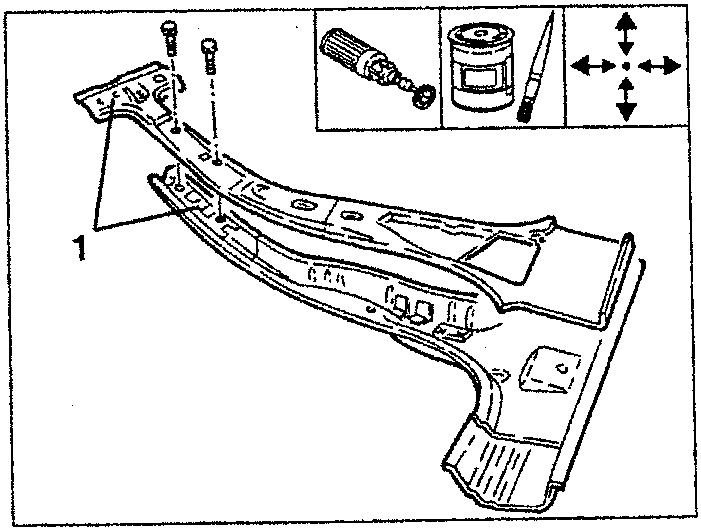

  1. Assemble the centre pillar inner trim on the frame and on the outer trim esterno checking its correct coupling through the seat belt connection screws.

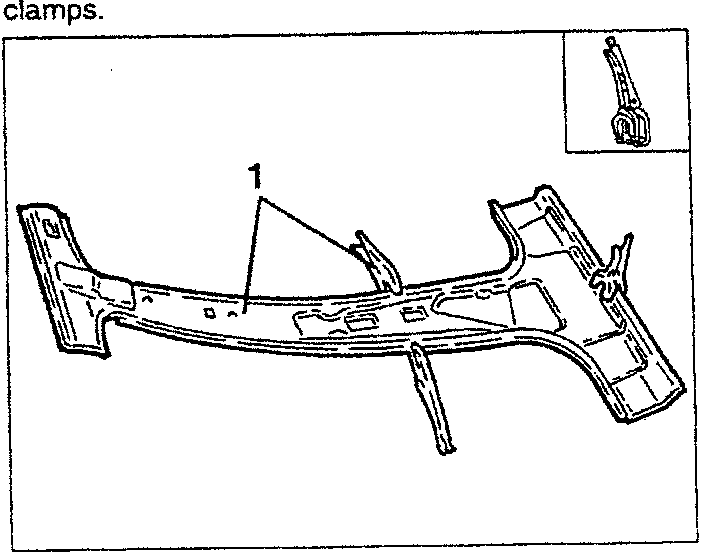

1. Join the parts to be welded and fasten them with clamps.
