Boot lid hinges

Refit the boot lid reversing the sequence followed for removal following the instructions given below.

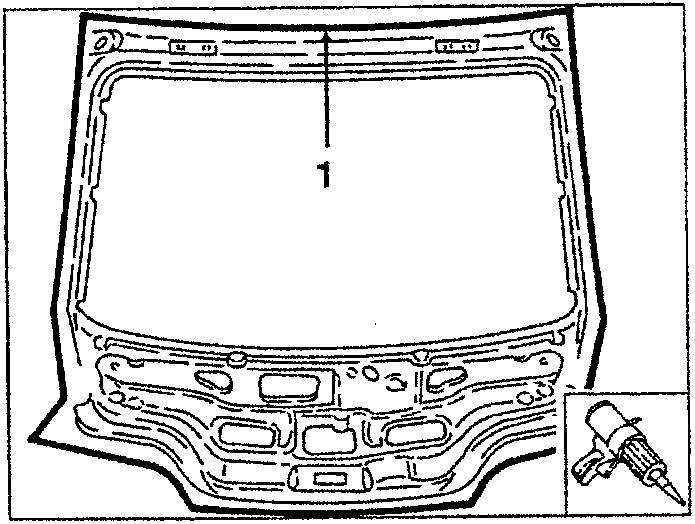

1. When a new boot lid is being used, apply the specified sealant along the inner perimeter as illustrated.

• If necessary, adjust the boot lid as described in the corresponding paragraph.
• If necessary, separate the two hinge halves on the bench, removing the stop ring and withdrawing the fastening pins.

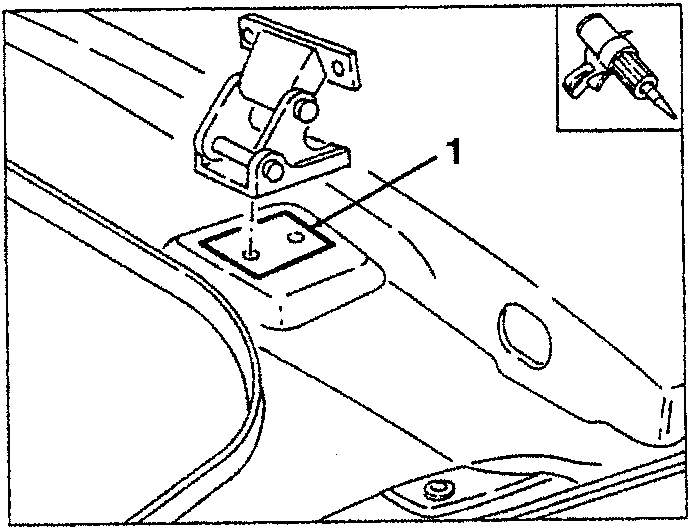

1. When assembling, apply the specified sealant between the hinges and the body as illustrated.

BOOT LID HINGES

REMOVING/REFITTING

• Remove the boot lid (see specific paragraph).

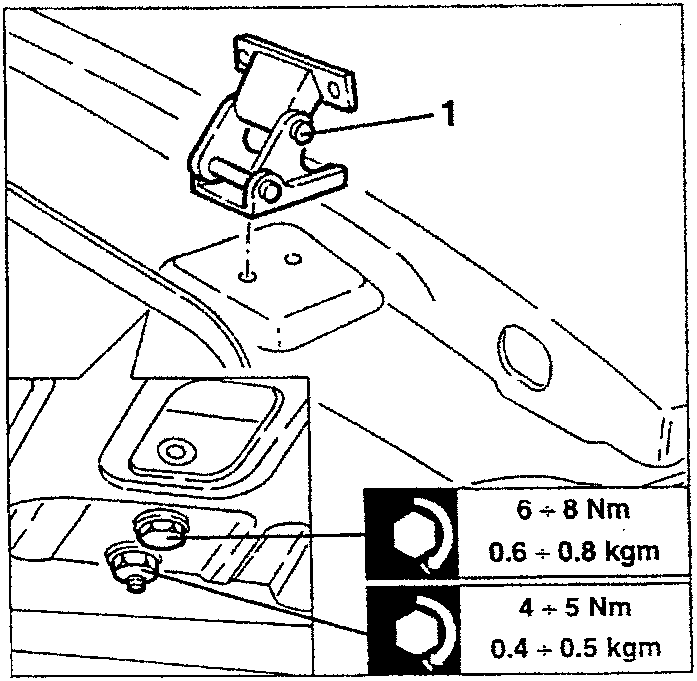

1. Slacken the fastening screws and nuts and remove the complete hinges from the body.

6 ÷ 8 Nm
0.6 ÷ 0.8 kgm

4 ÷ 5 Nm
0.4 ÷ 0.5 kgm

BONNECT ADJUSTMENT

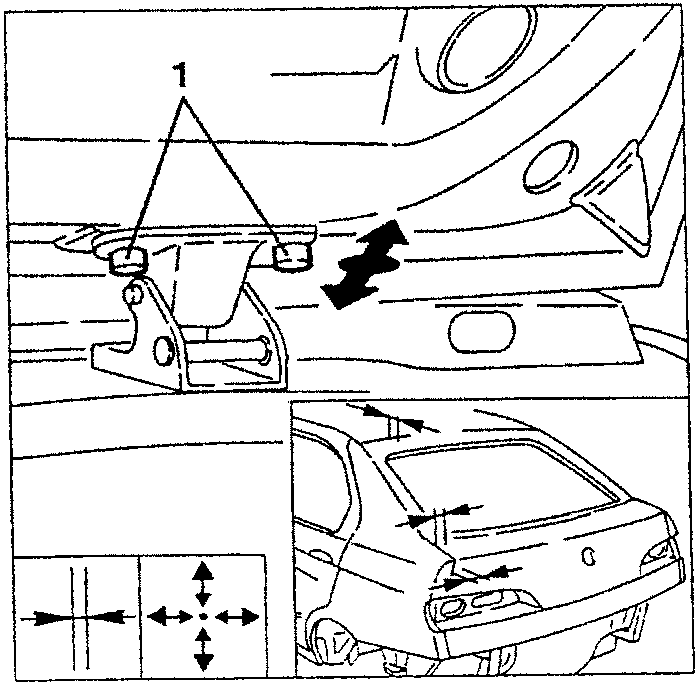

1. Adjust the bonnet lid longitudinally, working on the screws fastening it to the hinges and checking the alignment and lights.

NOTE: For bonnet adjustment the seal, lock and telescopic props should be assembled.
