REAR DOOR HINGES

REMOVING/REFITTING

• Remove the la porta posteriore (vedere paragrafo specifico).

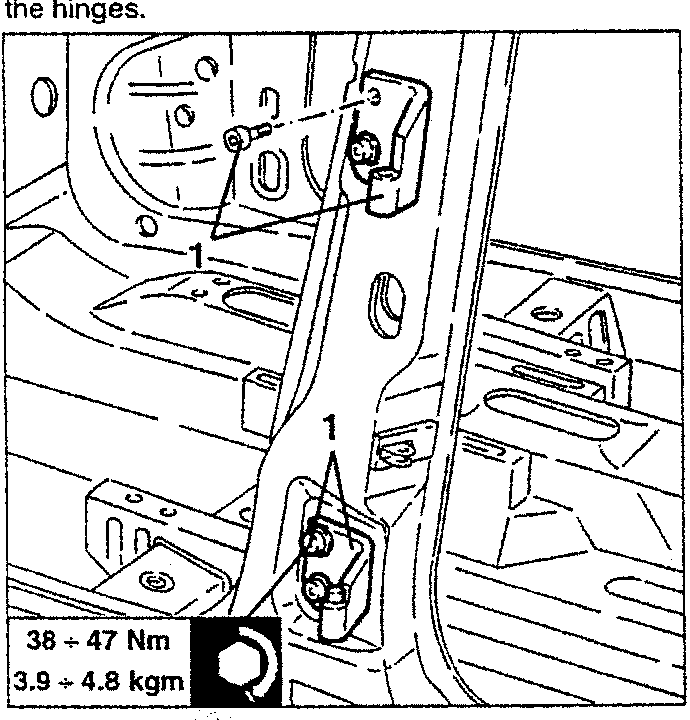

1. Remove the fastening screws and remove the hinges from the centre pillar.

• If present, remove the adjustment thicknesses under the hinges.

38 ÷ 47 Nm
3.9 ÷ 4.8 kgm

Refit the hinges reversing the sequence followed for removal and adjusting the door as described in the corresponding paragraph.

REAR DOOR AND HINGE ADJUSTMENT

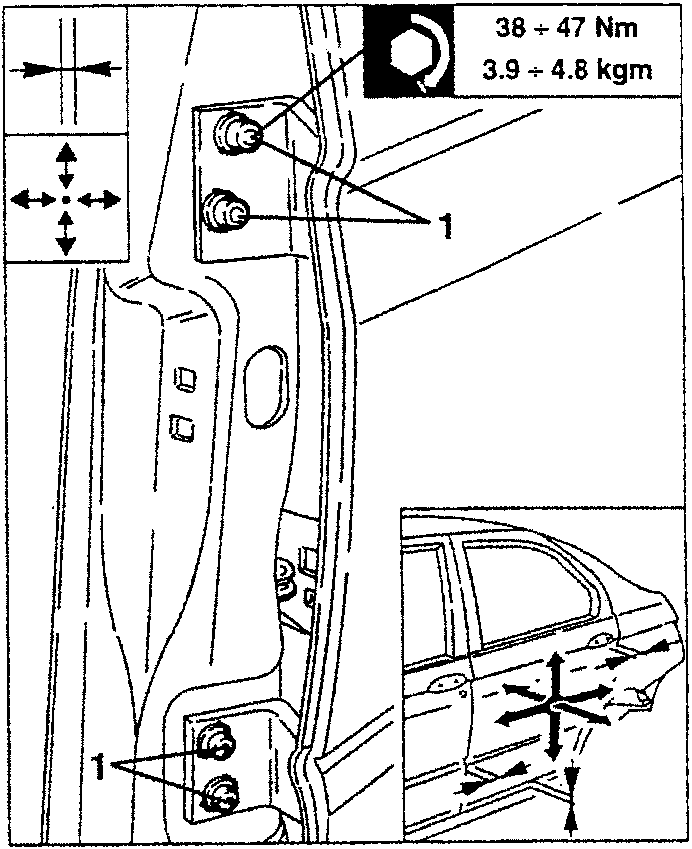

• Working with the screws fastening the hinges to the centre pillar slackened and the door to hing fastening screws in pack, adjust the door longitudinally and in height checking for correct mating and lights.
• If necessary, place suitable adjustment thicknesses under the hinges and under the lock striker.

NOTE: To adjust the door the mouldings, lock and striker must be assembled.

1. Tighten the screws fastening the hinges to the body to the specified torque.

BOOT LID

REMOVING/REFITTING

• Open the boot lid and support it suitably.

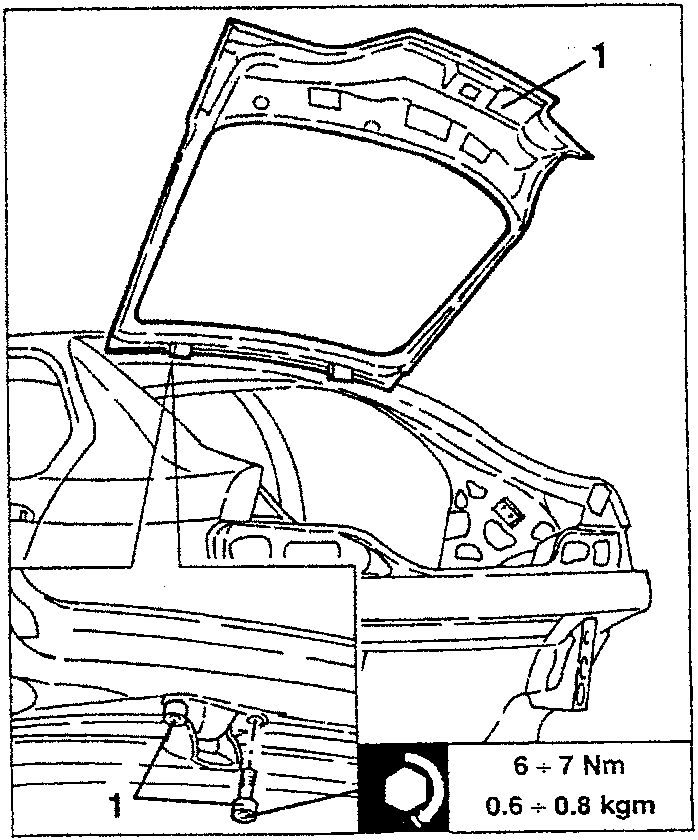

1. Slacken the two screws on each side fastening the boot lid to the hinges, then remove it.

6 ÷ 7 Nm
0.6 ÷ 0.8 kgm
