Rear doors

REAR DOORS

REMOVAL/REFITTING

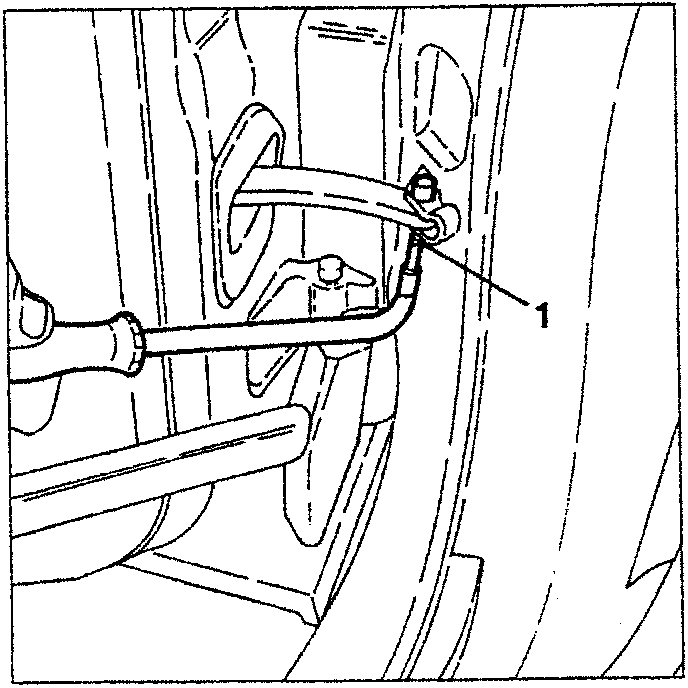

1. Using a suitable punch, remove the pin of the door check rod, half close the door to move the check rod inwards, then re-open the door.

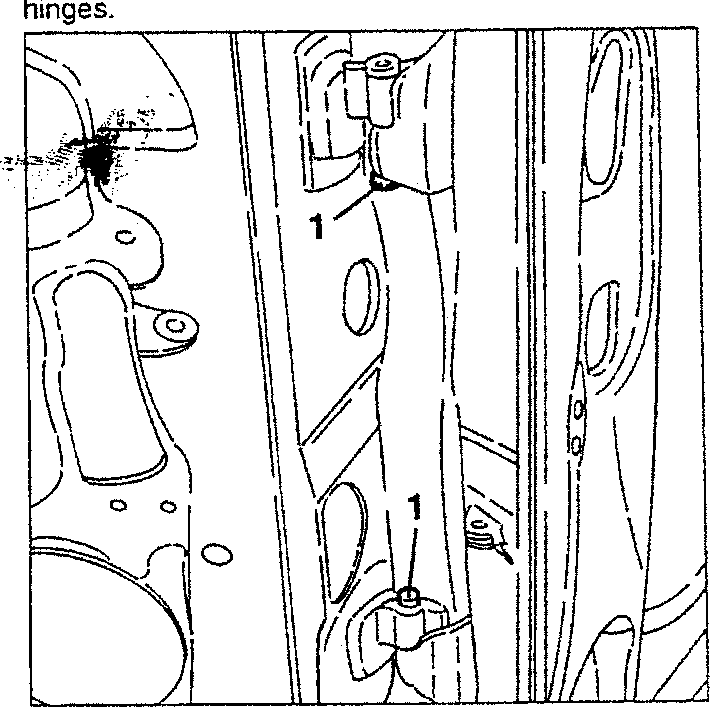

1. Slacken the two screws fastening the door to the hinges.

1. Raise the door to remove the hinge taper pins from their housings, then remove the door.

Refit the door reversing the sequence followed for removal and following the instructions given below.

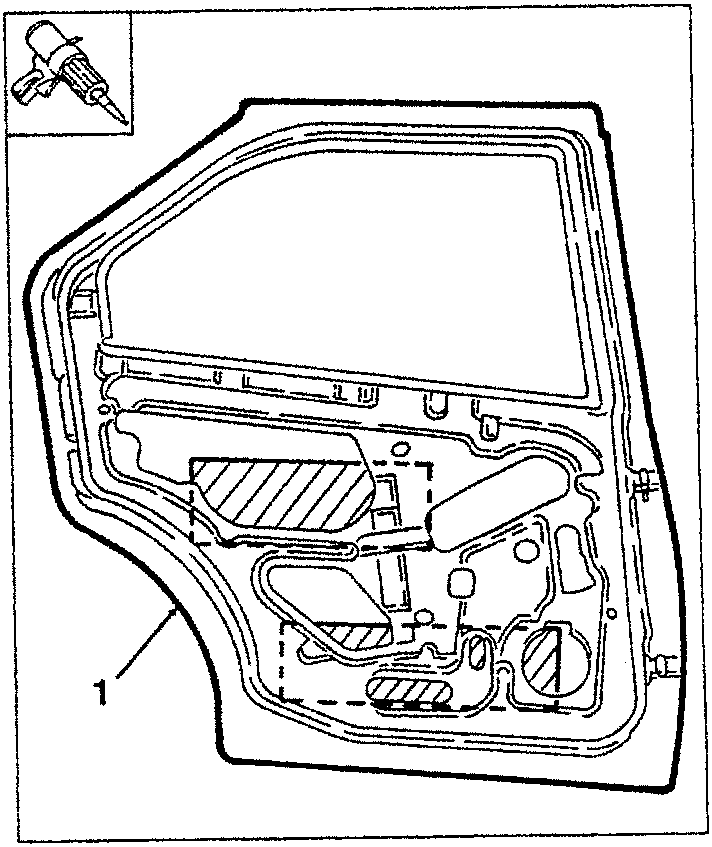

1. When a new door is used, apply the specified sealant along the inner perimeter as illustrated.

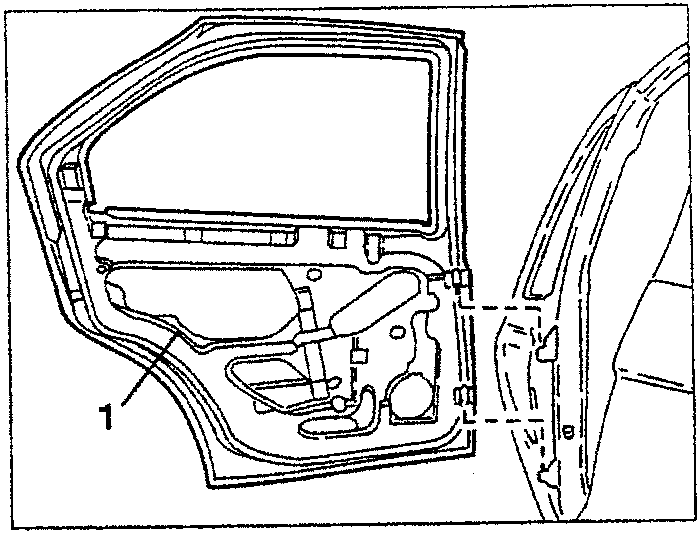

NOTE: Check that there are the sound-deadening panels inside the door.

• If necessary adjust the rear door as described in the corresponding paragraph.
