Bodies

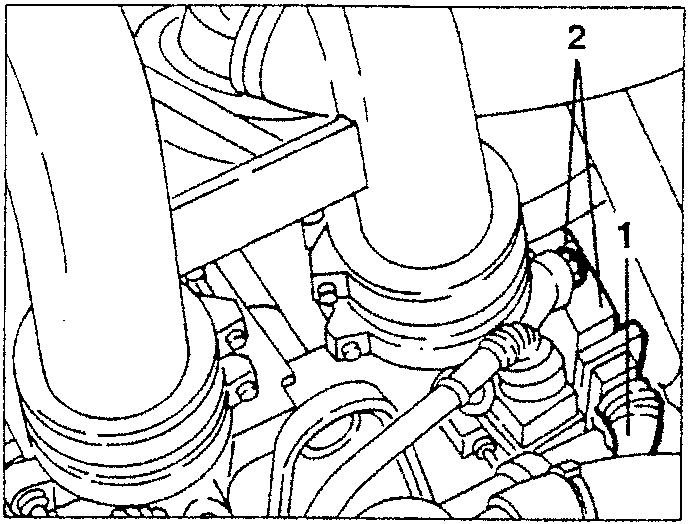

1. Disconnect the electrical connection from the throttle potentiometer.
2. Slacken the two fastening screws and remove the throttle potentiometer.

1. Throttle potentiometer
2. Fastening screw

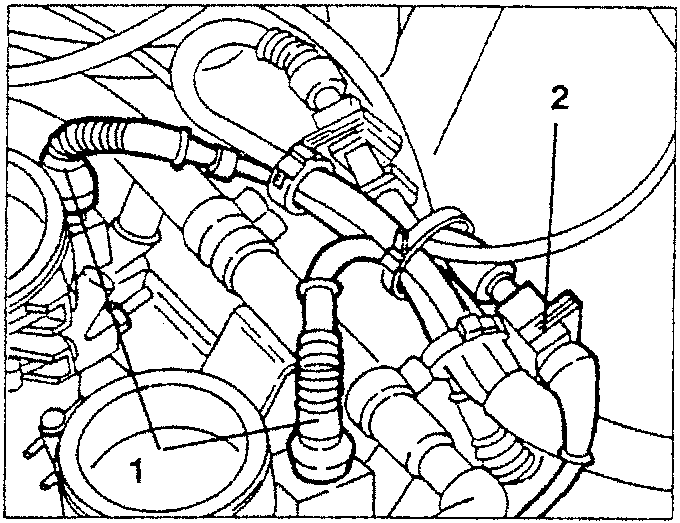

2. Disconnect the connection of the engine coolant temperature sensor (NTC).

1. Engine coolant temperature sensor (NTC)
2. Connection

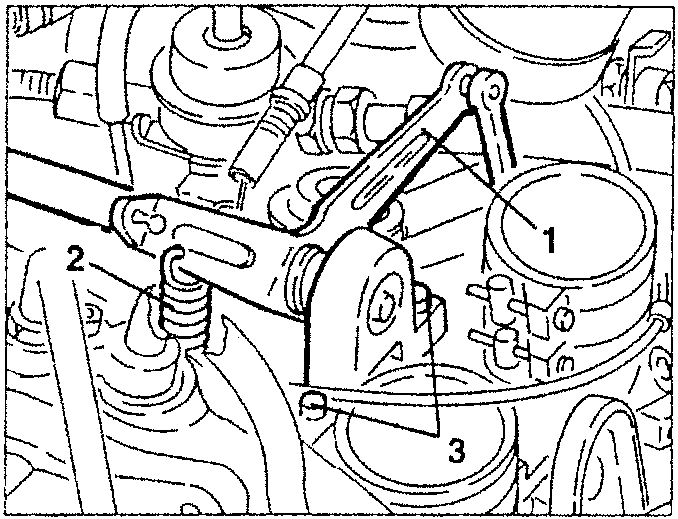

1. Disconnect the tierods from the throttle control shaft
2. Disconnect the spring.
3. Slacken the fastening nuts and remove the throttle control shaft, retrieving the spacers.

1. Throttle control shaft
2. Tierod
3. Spacer

BODIES

REMOVAL/REFITTING

The following procedure describes the sequence for removing/refitting the left-hand body. However, this procedure may be used for the right-hand body adapting it suitably owing to the different location of certain components.

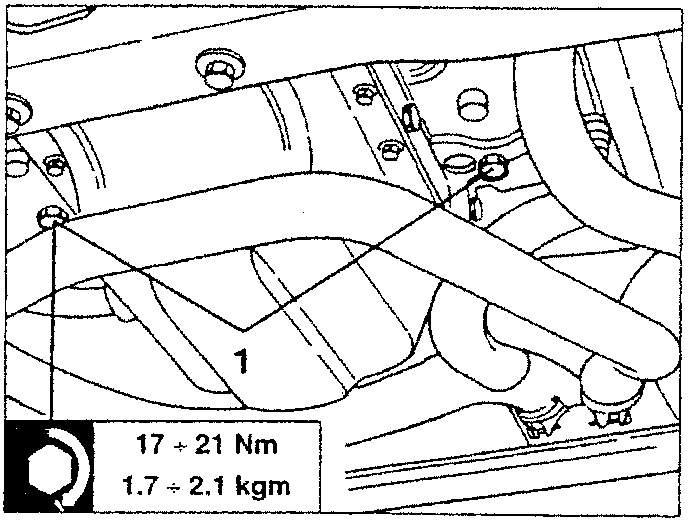

1. Slacken the two plugs under the crankcase and drain the coolant fluid into a suitable recipient.

17 ÷ 21 Nm
1.7 ÷ 2.1 kgm

• Remove the air intake box (see specific paragraph).

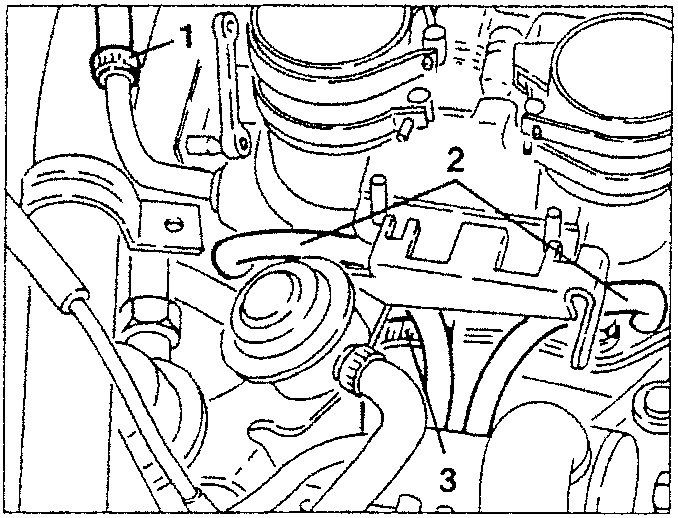

1. Disconnect the electrical connections from the electroinjectors.

1. Electrical connection
2. Electroinjector
3. Fastening screw
1. Disconnect the servobrake vacuum takeoff pipe.
2. Disconnect the two evaporative pipes from the body.
3. Disconnect the engine coolant sleeve from the body.
