1.7 16V Boxer engine (1712)Accelerator cable

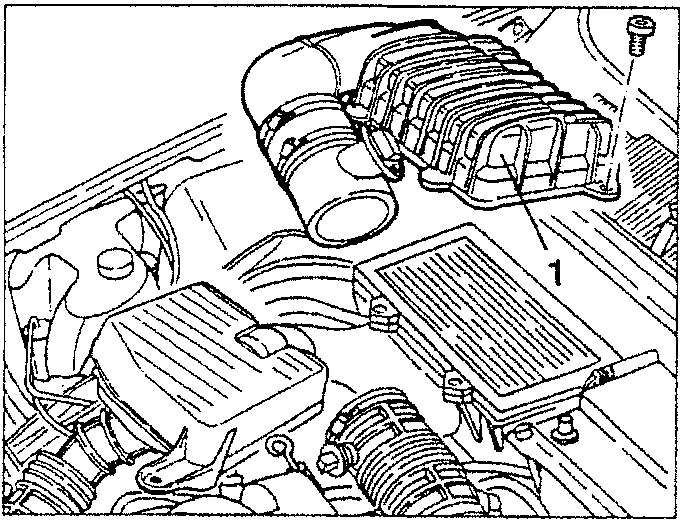

  1. Slacken the four screws fastening the air cleaner cover and remove it complete with air flow meter.
Air cleaner cover with air flow meter attached

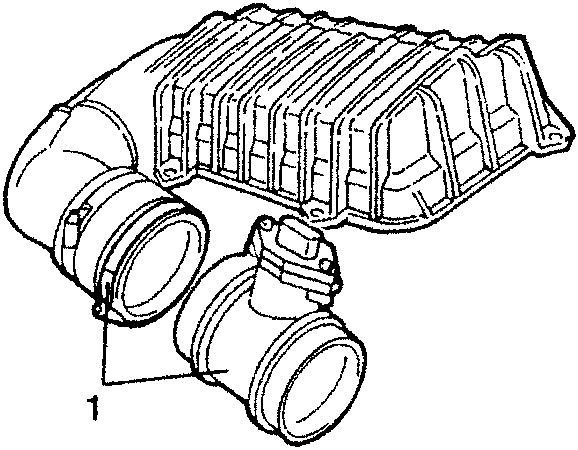

  1. On the bench, slacken the fastening clamp and separate the air flow meter from the air cleaner cover.
Air flow meter separated from air cleaner cover

ACCELERATOR CABLE

REMOVAL/REFITTING

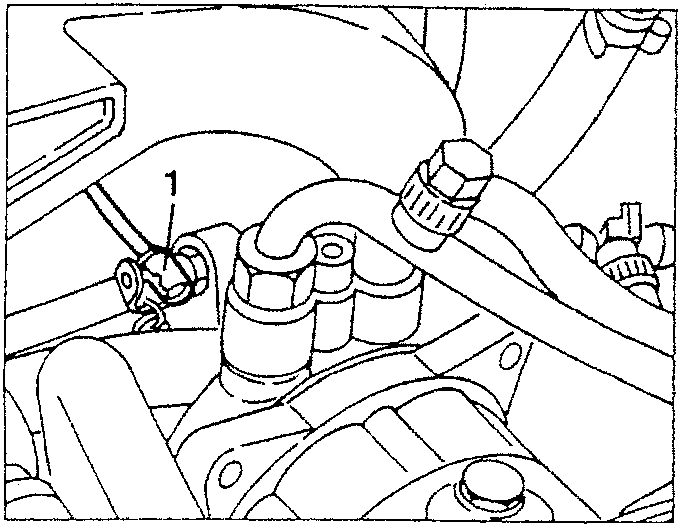

  1. Move back the safety catch and disconnect the accelerator control cable from the throttle control shaft.
Accelerator control cable disconnected from throttle control shaft

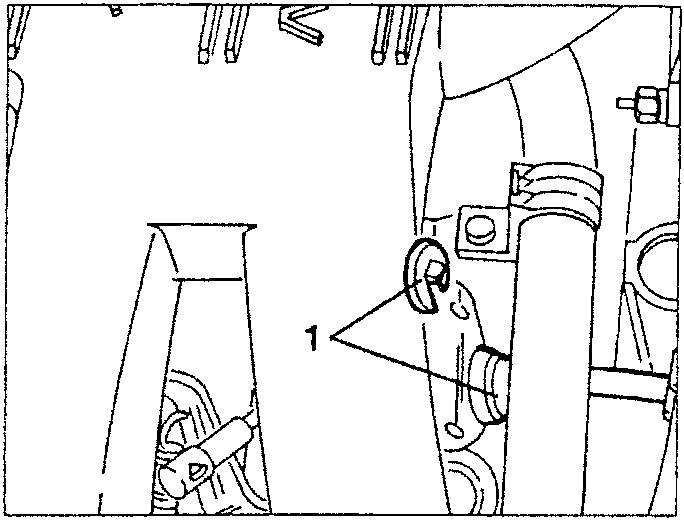

  1. Remove the catch and remove the accelerator cable from the support bracket on the intake box.
Accelerator cable removed from support bracket on intake box

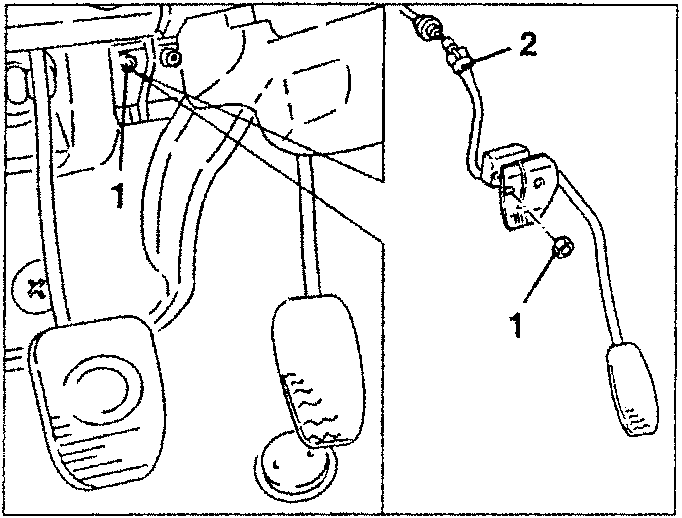

  1. Working from the passenger compartment, slacken the two nuts fastening the accelerator pedal fastening bracket.
  2. Move the pedal just enough to disconnect the accelerator cable from the fork on the pedal.
Accelerator pedal with cable disconnected

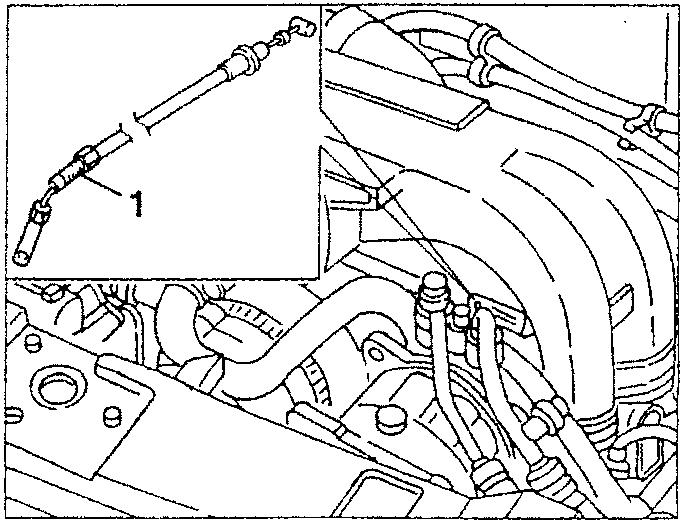

  1. From the engine compartment, withdraw the complete accelerator cable.
Complete accelerator cable withdrawn from engine compartment
