CAM ANGLE SENSOR

This hall effect sensor is fitted on the cylinder head and faces the camshaft drive pulley (exhaust). On the latter there is an aperture which allows the timing sensor to signal the engine timing position. The injection control unit uses the timing sensor signal to detect the T.D.C. at the end of compression.

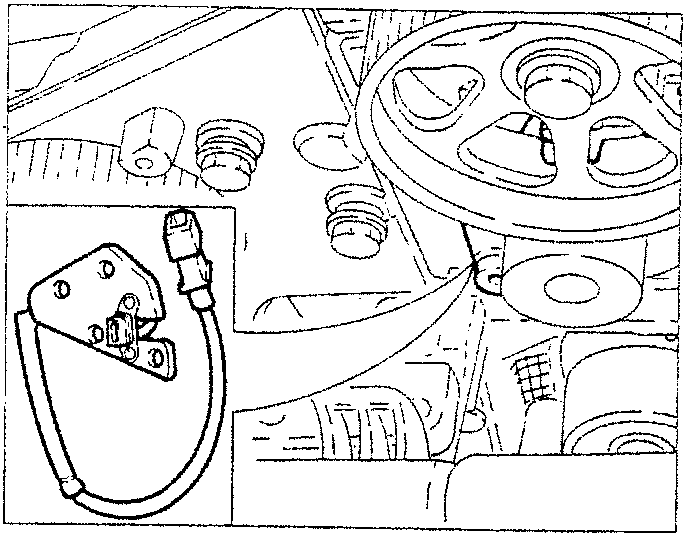

Cam angle sensor with wiring harness
  1. part name
  2. Slacken the fastening screws and remove the power unit reaction rod.

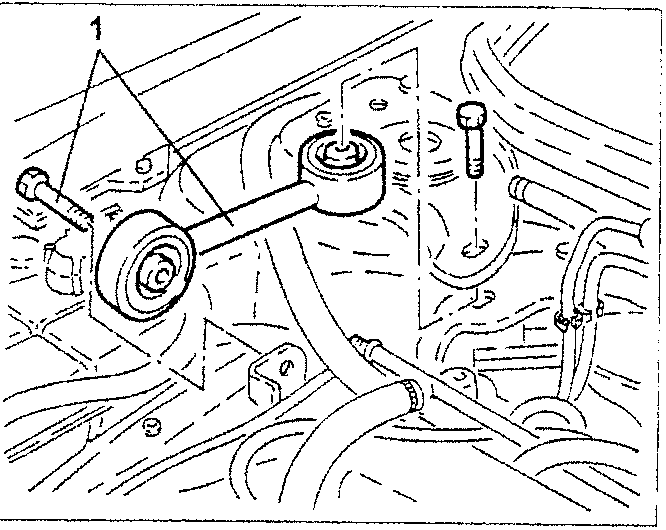

Power unit reaction rod removal
  1. Slacken the fastening screws and remove the engine side reaction rod support bracket.

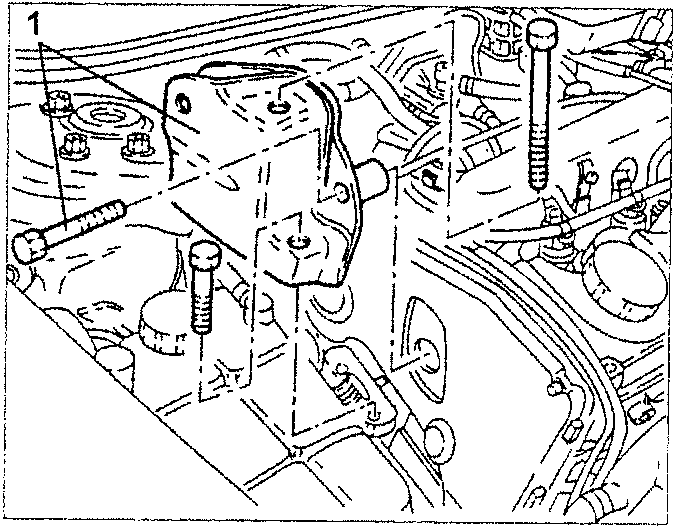

Engine side reaction rod support bracket removal

REMOVAL/REFITTING

  • Set the car on a lift.
  • Make sure the ignition key is in the «STOP» position, then disconnect the battery (-) cable.
  1. Remove the engine oil filler cap.
  2. Slacken the fastening screws and remove the engine cover.
  3. Refit the engine oil filler cap.

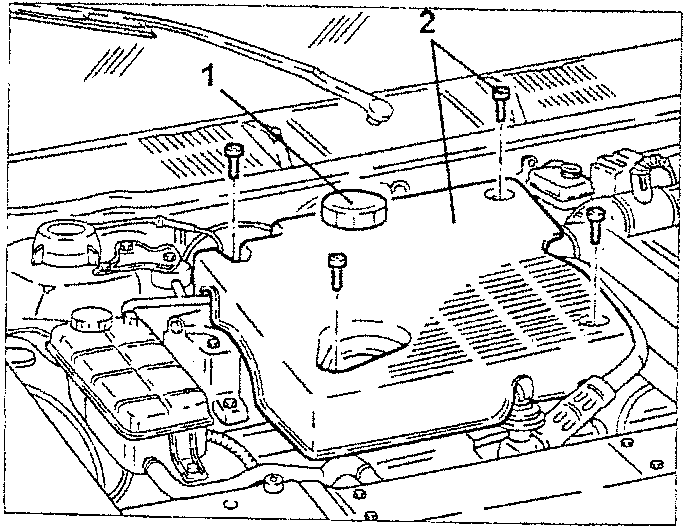

Engine cover removal
  • Remove the right front wheel and dust guard.
  • Remove the right front wheel arch.
  1. Slacken the fastenings and remove the under engine guard.

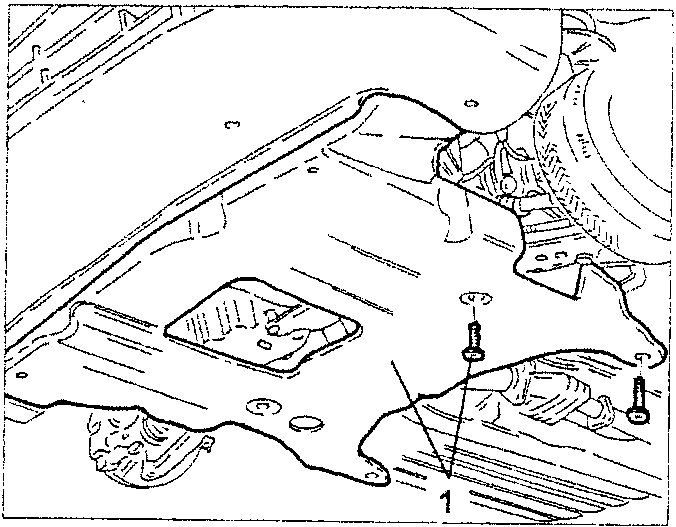

Under engine guard removal
