1.9 JTD engine (1910)Operation

OPERATION

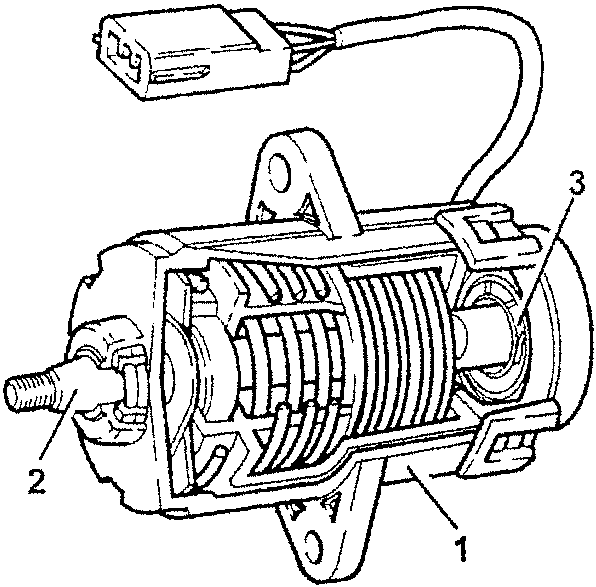

The sensor consists of a body (1), secured to the pedal assembly with a flange, which houses an axially positioned shaft (2) connected to two potentiometers (3).

There are two springs on the shaft; one (coil spring) ensures correct pressure resistance and the other ensures pedal return when released.

Operating range 0° to 70°; mechanical stop at 88°.

1. Body
2. Shaft
3. Potentiometers

REMOVAL/REFITTING

TO BE PUBLISHED SOON
