Rpm sensor

RPM SENSOR

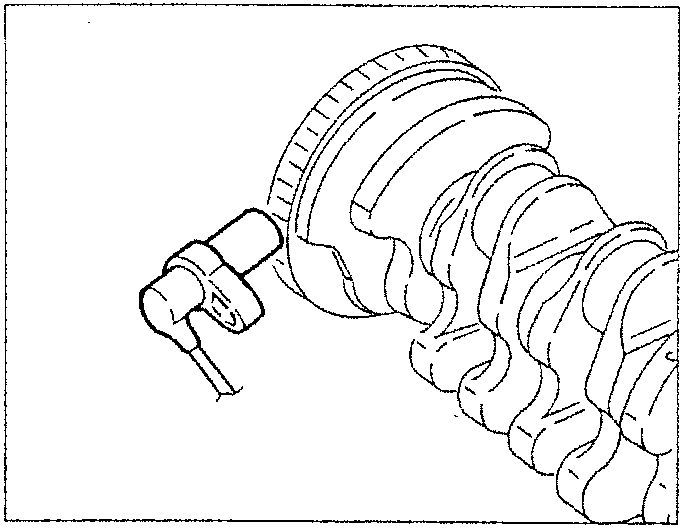

This is fitted on the crankcase and “faces” the phonic wheel on the crankshaft.

It is of the inductive type, i.e. it works through the change of the magnetic field generated by the passage of the teeth of the phonic wheel (60-2 teeth).

The injection control unit uses the rpm sensor signal to:

• determine the speed of rotation
• determine the crankshaft angular position.

REMOVAL/REFITTING

• Set the car on a lift.
• Make sure the ignition key is in the «STOP» position, then disconnect the battery (-) cable.

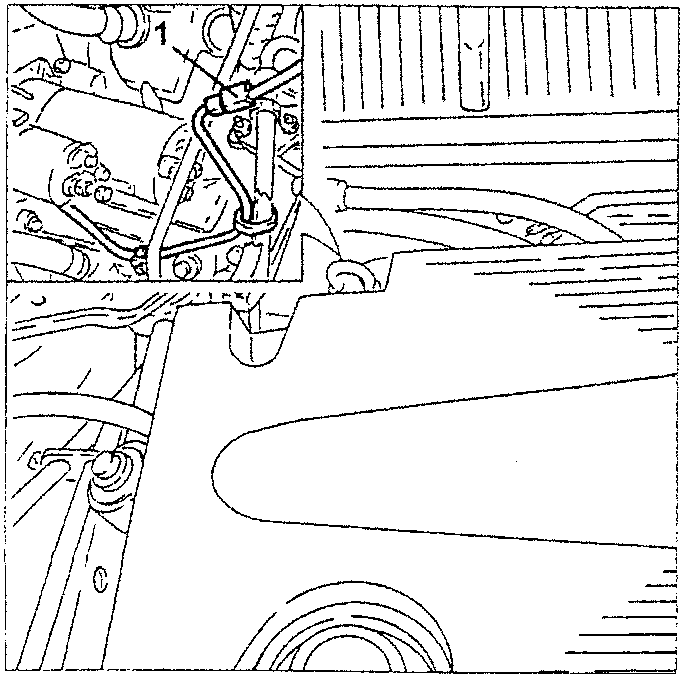

1. Disconnect the electrical connection of the rpm sensor and release it from the support bracket.

• Raise the car.

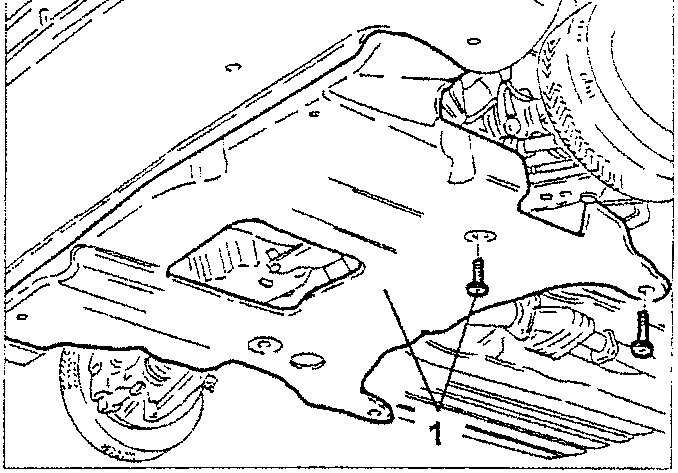

1. Slacken the fastenings and remove the under engine guard.

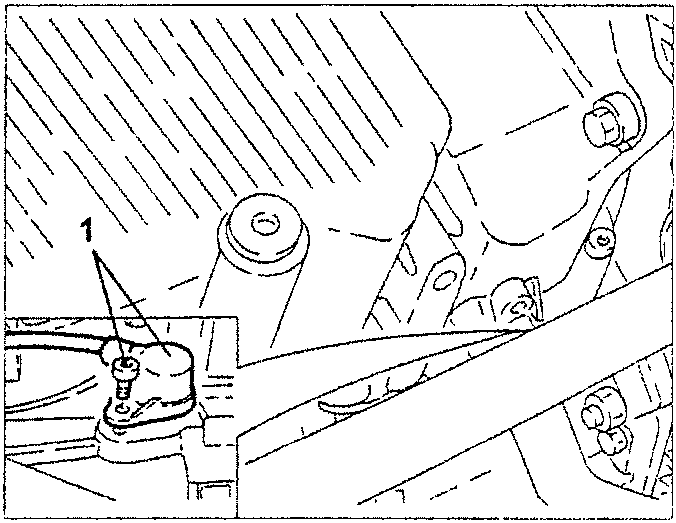

1. Slacken the fastening screw and remove the rpm sensor after releasing its wiring from the fasteners.
