Heating and ventilationAir distribution
Air distribution

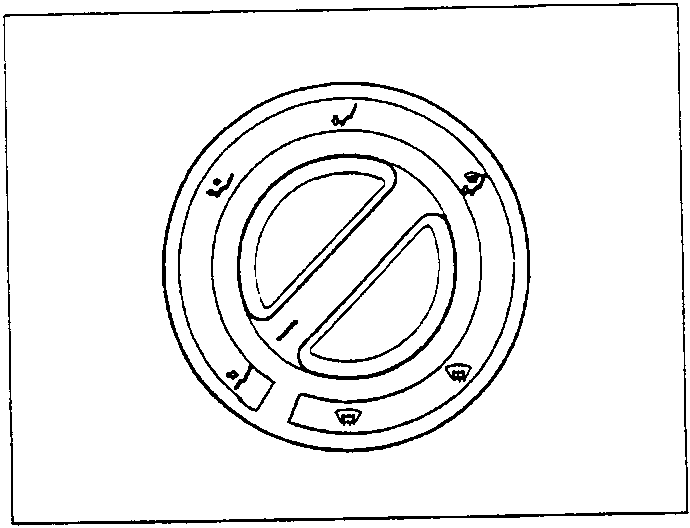

Turning the right knob clockwise suitably turns the four flaps to distribute the air as shown in the different pictograms, i.e. starting from only to the front vents up to only to the windscreen vents as illustrated below.

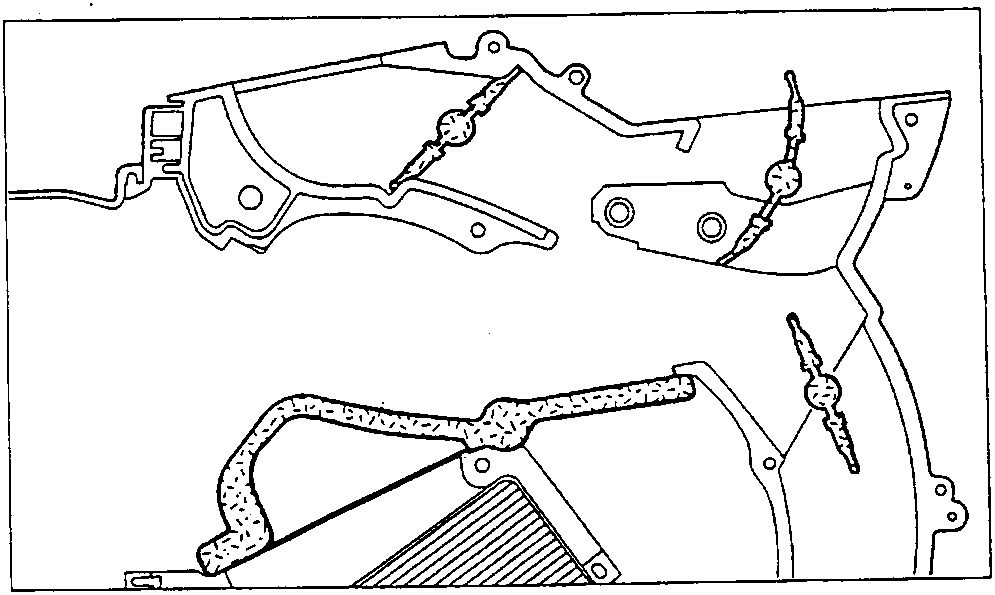

Detail of position of the different distribution flaps when the knob is turned completely counter-clockwise

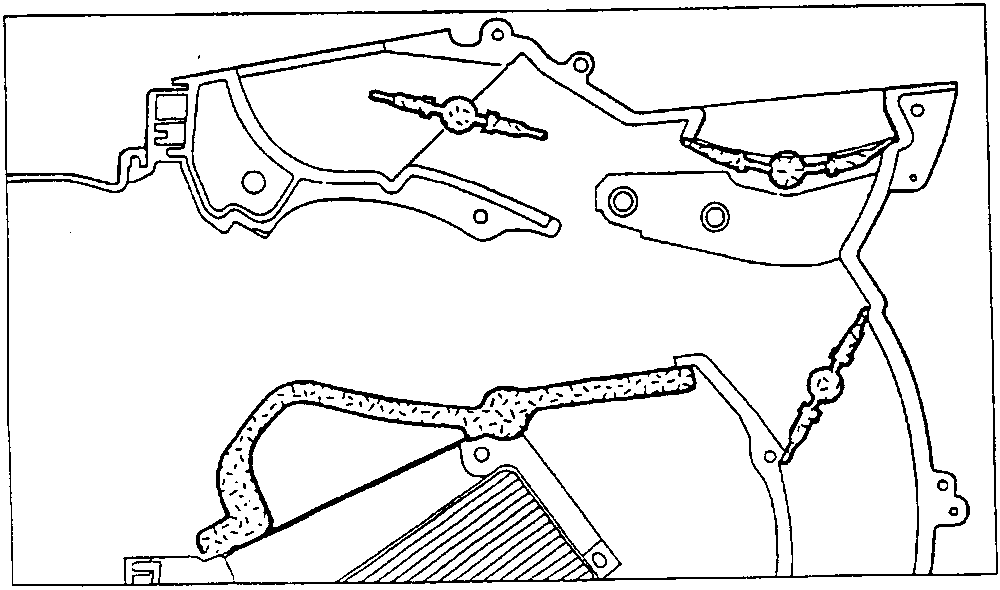

Detail of position of the different distribution flaps when the knob is turned completely clockwise
