ELECTRONIC FAN SPEED REGULATOR

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  1. Move aside the lower part of the dashboard as illustrated (see GROUP 70).

NOTE: To facilitate access to the electronic fan speed ragulator, it is advisable to move the floor mat and remove the injection control unit cover.

  1. Disconnect the electrical connections from the electronic fan speed regulator.
  2. Slacken the two fastening screws and remove the electronic fan speed regulator.

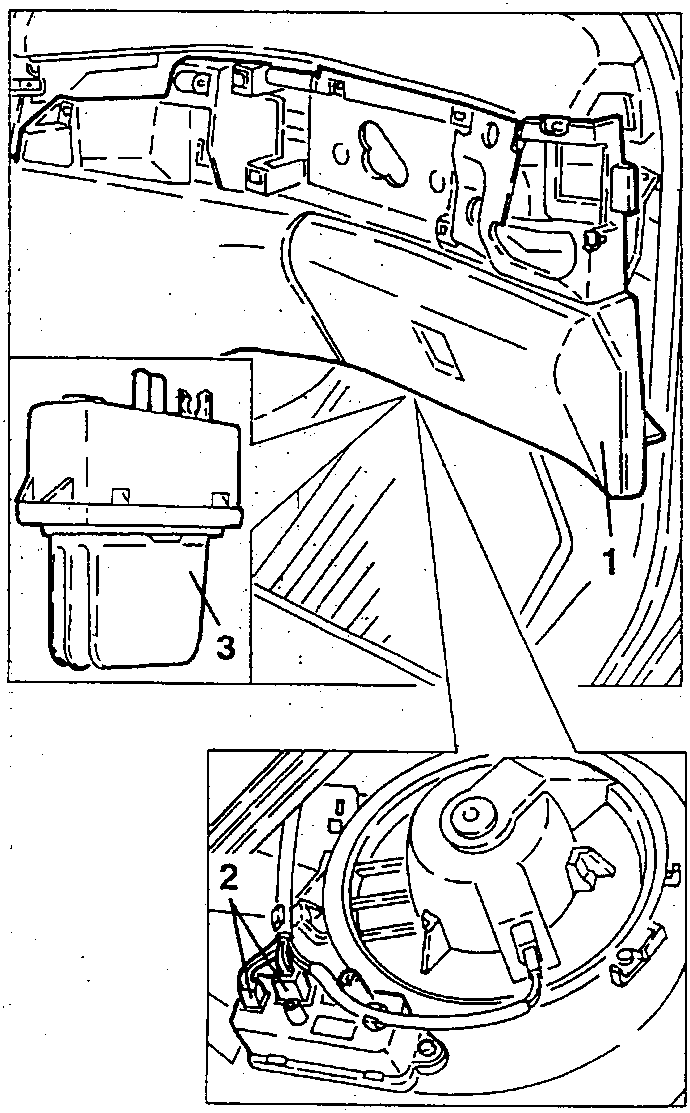

Electronic fan speed regulator (3), its connections (2) and the lower part of the dashboard (1)

AIR MIXING PORT CONTROL MOTOR

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  • Remove the valve box trim (see GROUP 70).
  1. Disconnect the electrical connection from the air mixing port control motor.
  2. Slacken the three fastening screws and remove the air mixing port control motor.

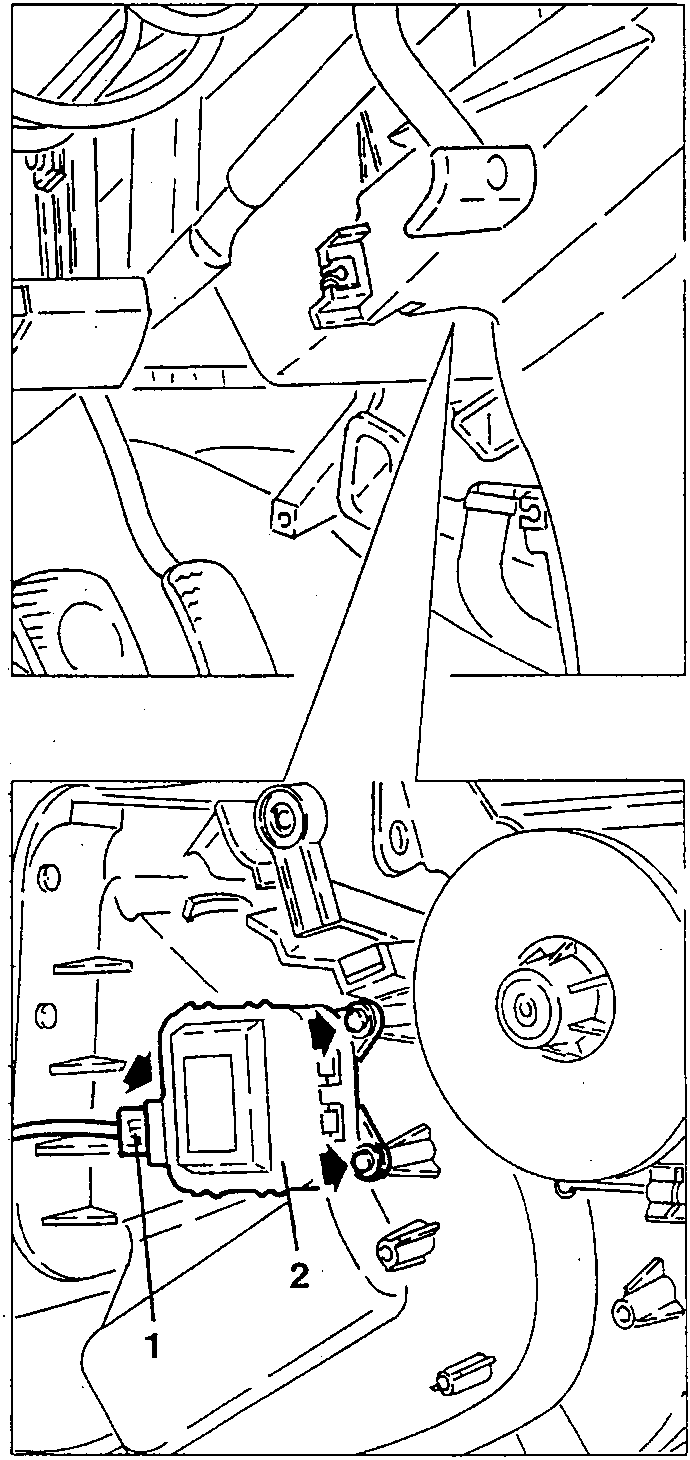

Air mixing port control motor with its connection (1) and fastening screws (2)
