Heating and ventilationFAN
  1. Disconnect the electrical connection of the inside air temperature sensor.
  2. Disconnect the electrical connections from the climate control system controls support.
  3. Disconnect the air distribution port bowden cable from the support.
  4. Remove the support releasing it from the electrical wiring.

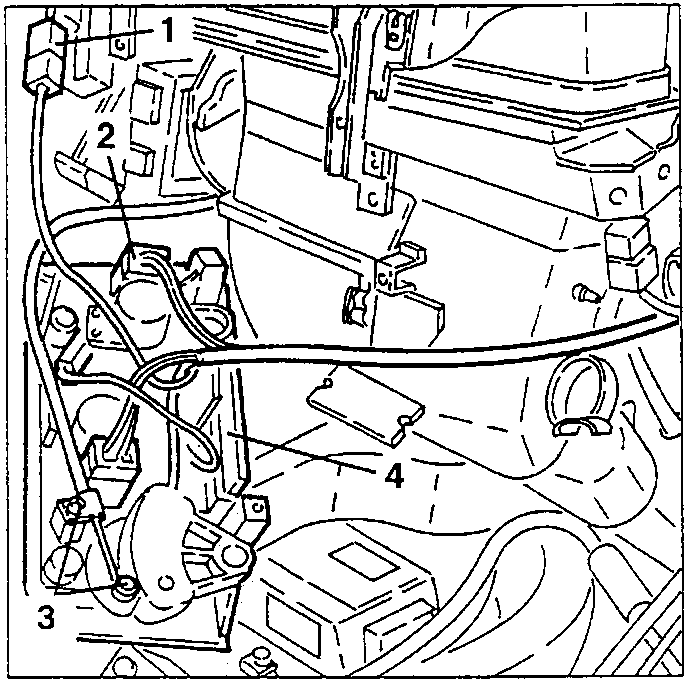

Climate control system controls support with connections 1 to 4
  1. On the bench, if necessary, slacken the two fastening screws and remove the potentiometer for the air flow control knob.
  2. Slacken the two fastening screws and remove the potentiometer for the required air temperature selection knob.

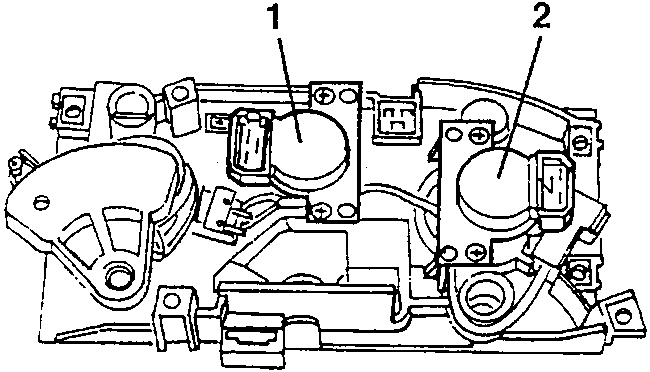

Potentiometers for the air flow control knob (1) and temperature selection knob (2)

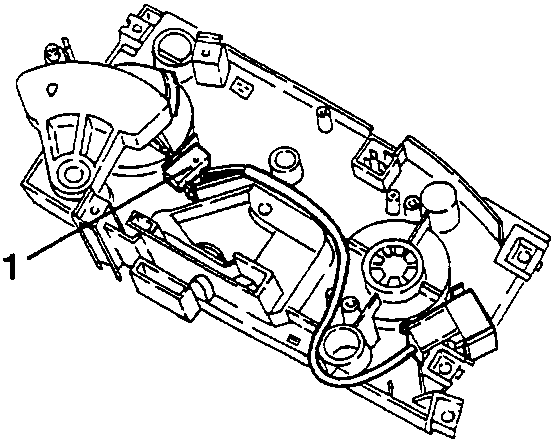

  1. Remove the "MAX DEF" function control microswitch.
The

FAN

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  1. Move away the lower part of the dashboard as illustrated (see GROUP 70).
  2. Disconnect the electrical connection from the fan.
  3. Slacken the fastening screw, raise the tab and turn the fan counter-clockwise as far as its stop, then withdraw it from the climate control group.

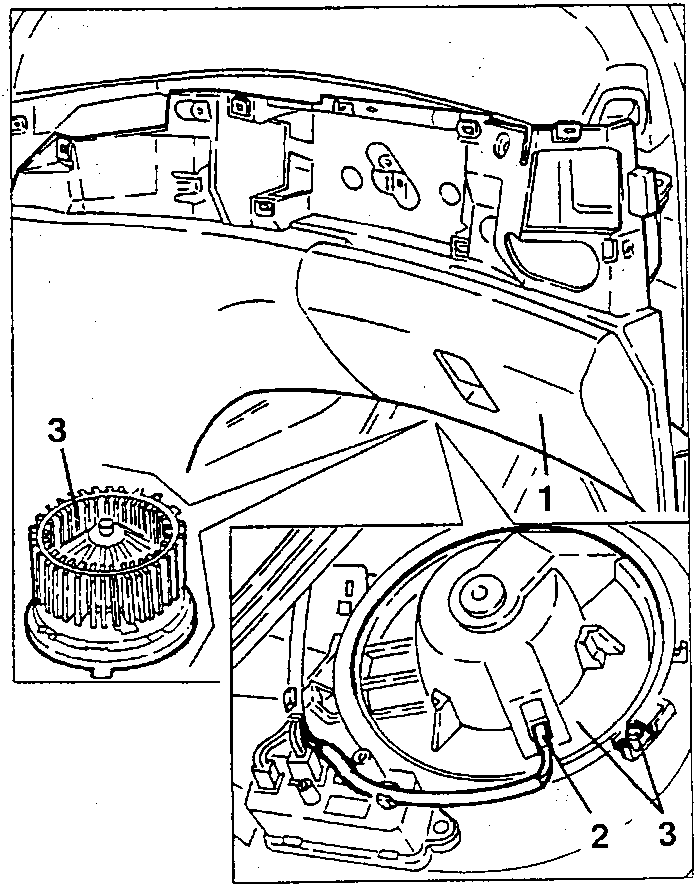

Fan (3), its connection (2) and the lower part of the dashboard (1)
