Climate control system controls (page 2 of 2)

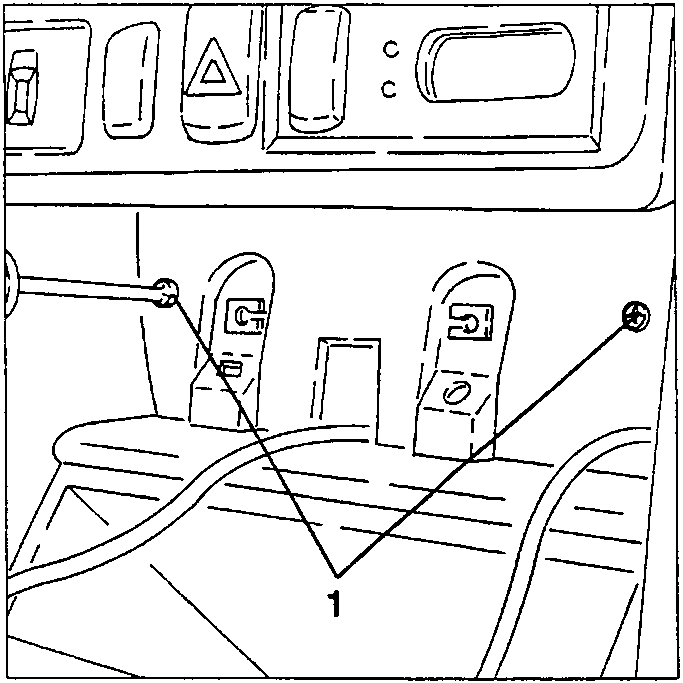

1. Slacken the two screws illustrated fastening the climate control system controls module.

1. Withdraw the three control knobs and back away the module as necessary.

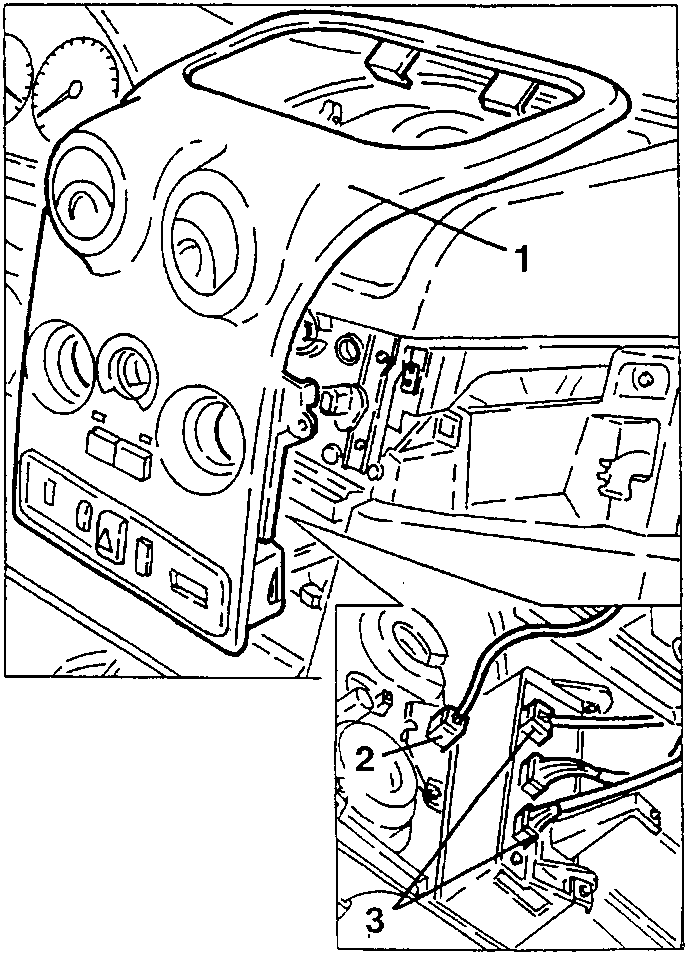

2. Disconnect the electrical connection from the set of air recirculation and compressor engagement switches.
3. Disconnect the electrical connections from the services controls, then remove the climate control system controls module.

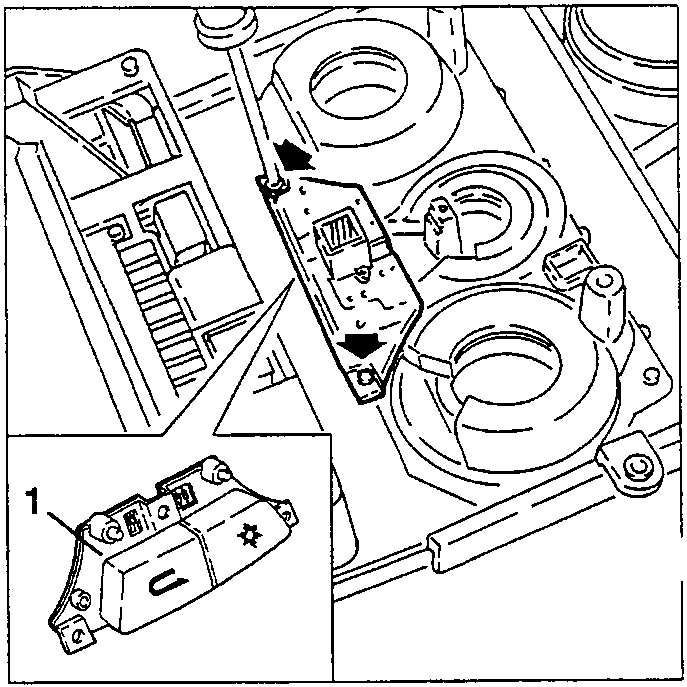

1. On the bench, if necessary, slacken the two fastening screws and remove the set of air recirculation and compressor engagement control switches.

If necessary, also remove the controls group support, as described below.

• Remove the lower part of the dashboard (see GROUP 70).

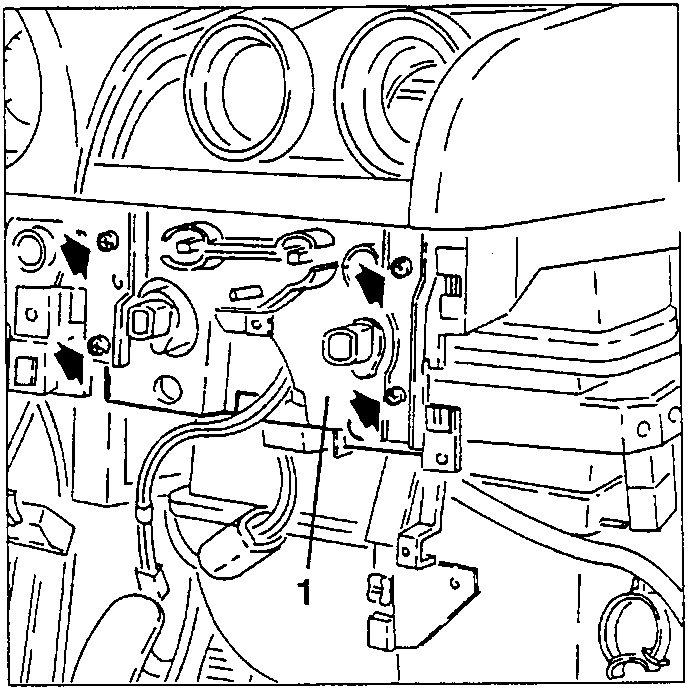

1. Slacken the four fastening screws and lower the climate control system controls group.
