CLIMATE CONTROL SYSTEM CONTROLS

REMOVING/REFITTING

  • Disconnect the battery (-) terminal.
  1. Slacken the fastening screw, then prise and remove the passenger side dashboard trim.
  2. Slacken the fastening screw illustrated of the climate control system controls module.

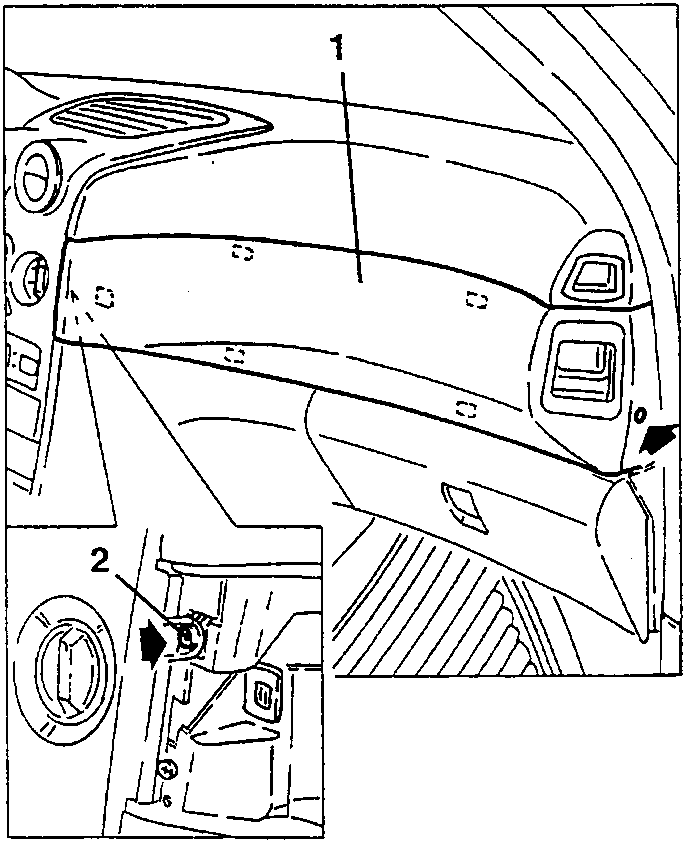

Passenger side dashboard trim (1) and controls module fastening screw (2)
  1. Remove the right hand driver's side dashboard trim prising it off the fastening clips.
  2. Slacken the fastening screw illustrated of the climate control system controls module.

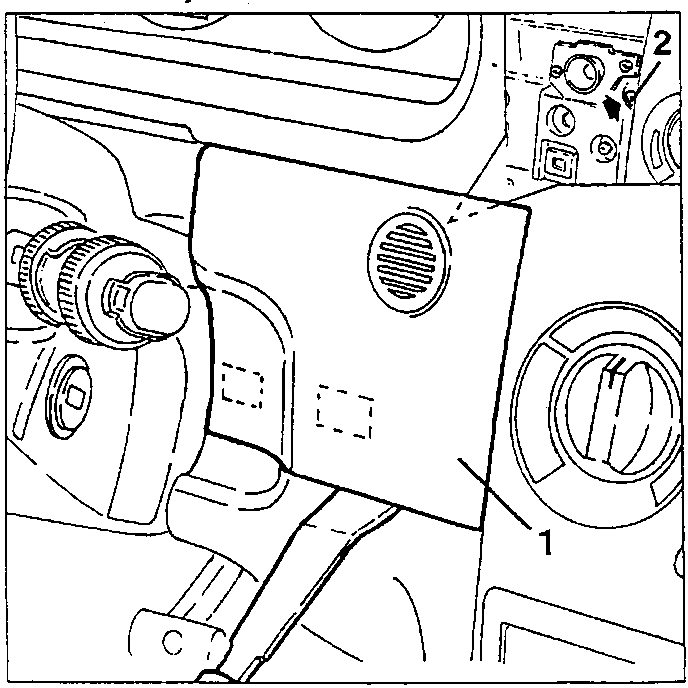

Driver's side dashboard trim (1) and controls module fastening screw (2)
  1. Slacken the two fastening screws and remove the upper dashboard air vent.

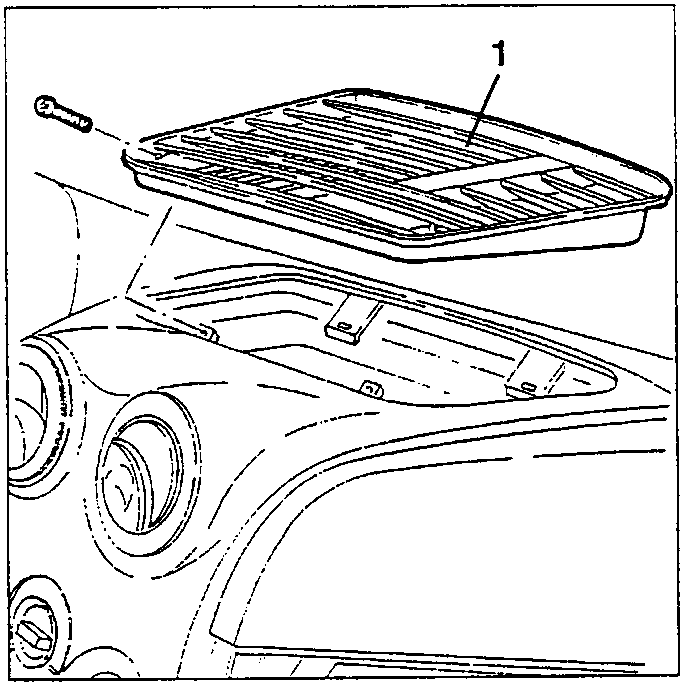

Upper dashboard air vent, item 1
  • Remove the ashtray.
  1. Slacken the fasteners, then withdraw the ashtray support and set it aside without disconnecting the corresponding electrical connections.

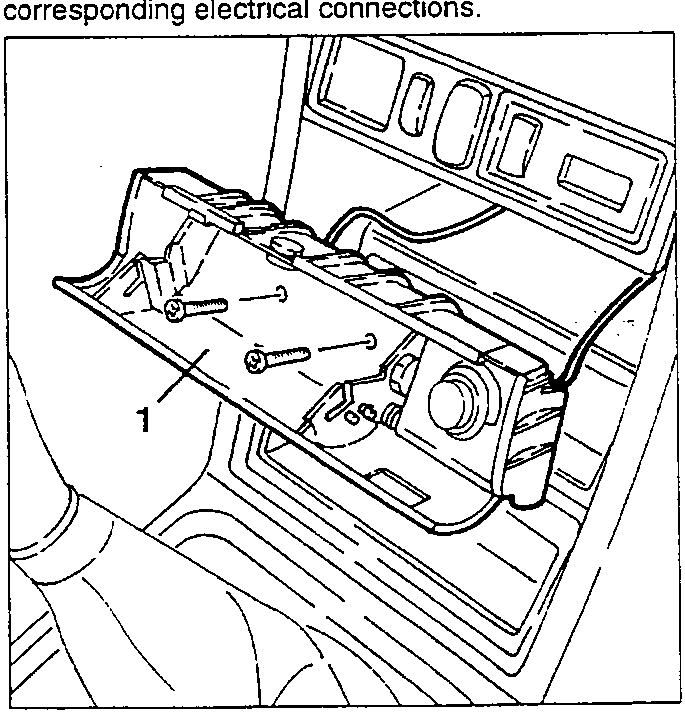

Ashtray support, item 1
