DISASSEMBLY

  1. Disconnect the control rod from the coupling on the recirculation/outside air port.
  2. Slacken the three fastening screws and remove the recirculation/outside air control motor complete with control rod.
  • Retrieve the upper plate and grommets on the fastening holes.

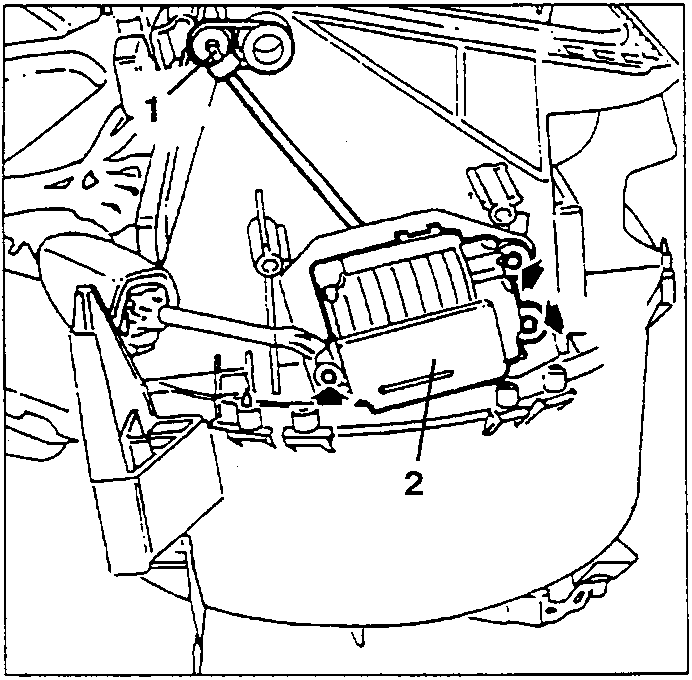

Recirculation/outside air control motor, items 1 and 2
  1. Slacken the fastening screw, raise the tab and turn the fan clockwise as far as its stop, then remove it from the climate control group.
  2. Slacken the two fastening screws and remove the electronic fan speed regulator.

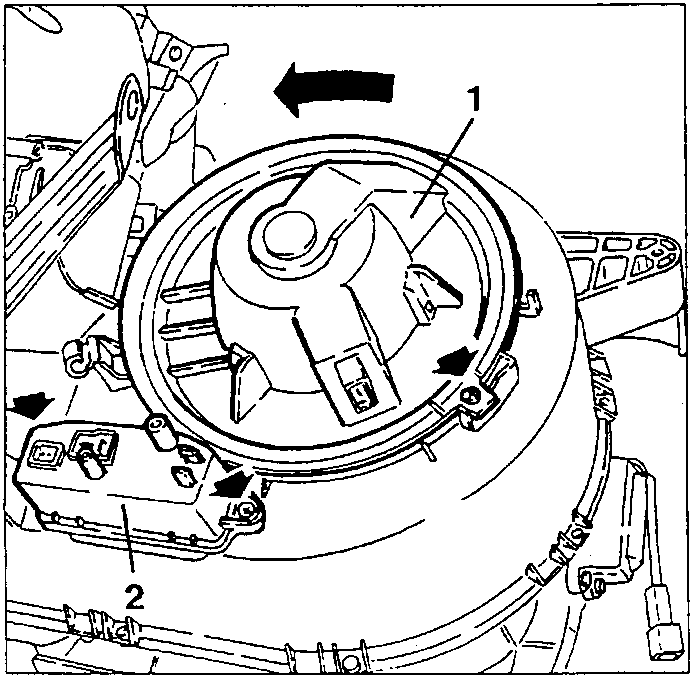

Fan (1) and electronic fan speed regulator (2)
  1. Slacken the fastening screws and remove the cover.

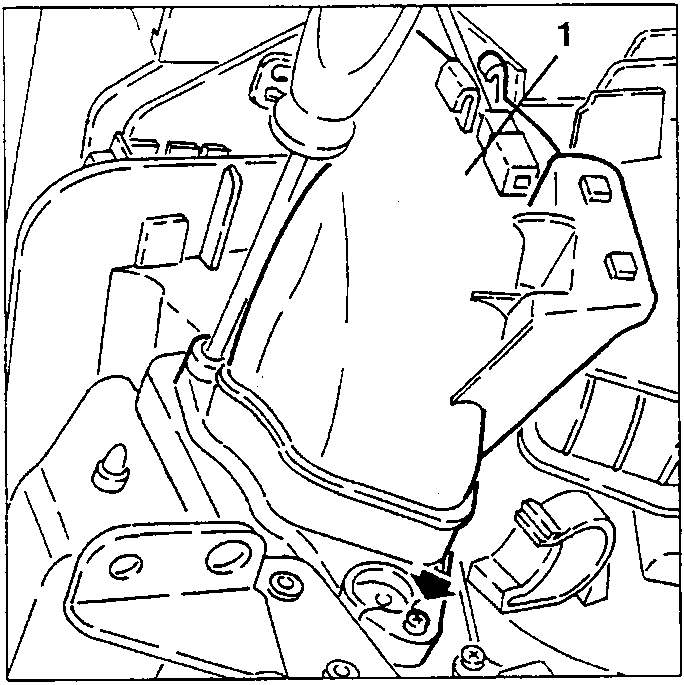

Cover of the climate control group, item 1
  1. Slacken the three fastening screws and remove the heater cover and the corresponding pipes.

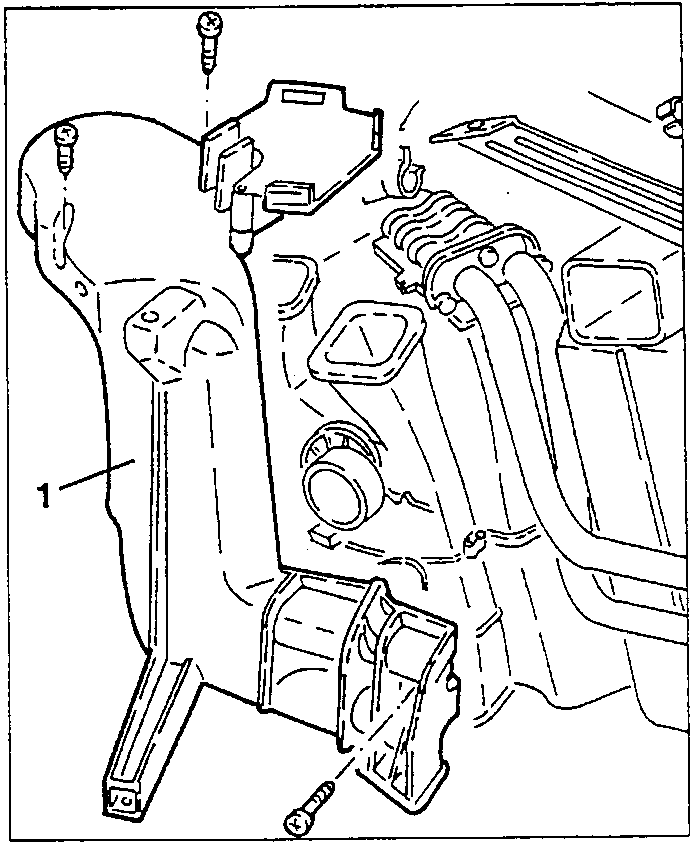

Heater cover and pipes, item 1
