Disassembly (page 4 of 5)

Make

Alfa Romeo

Model

145/146 Factory Service Manual

Year

1994–1999

Section

Automatic heating and ventilation

Heating and ventilationDisassembly · page 4 of 5

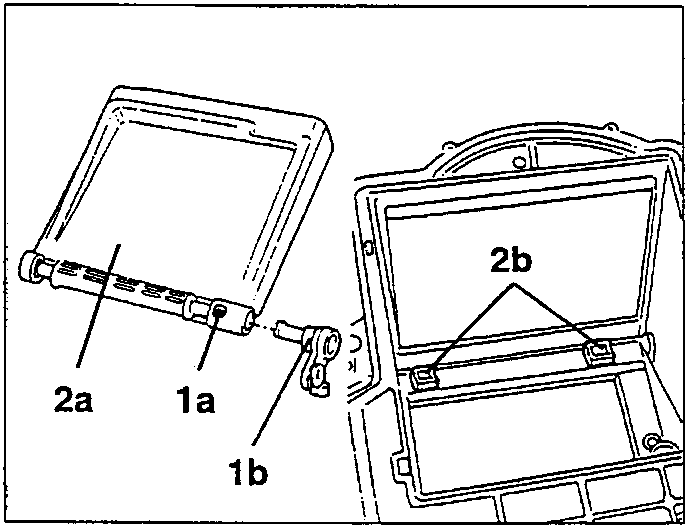

1. Work through the small slot (1a) machined on the air intake port spindle to release from it the tang of lever (1b) which may thus be withdrawn from the upper half box.
2. Release the air intake port (2a) from the upper half box bearing in mind that its spindle is dap fitted and articulates on the tabs (2b).

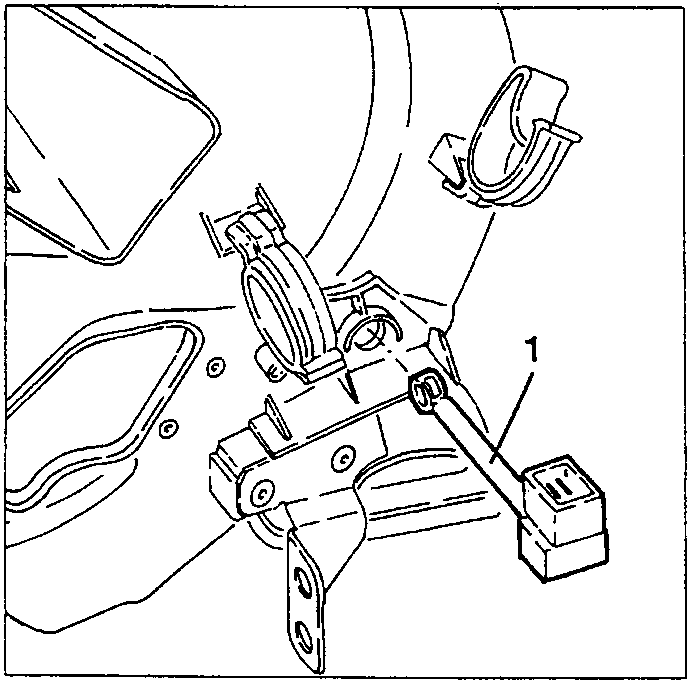

1. Remove the treated air temperature sensor.

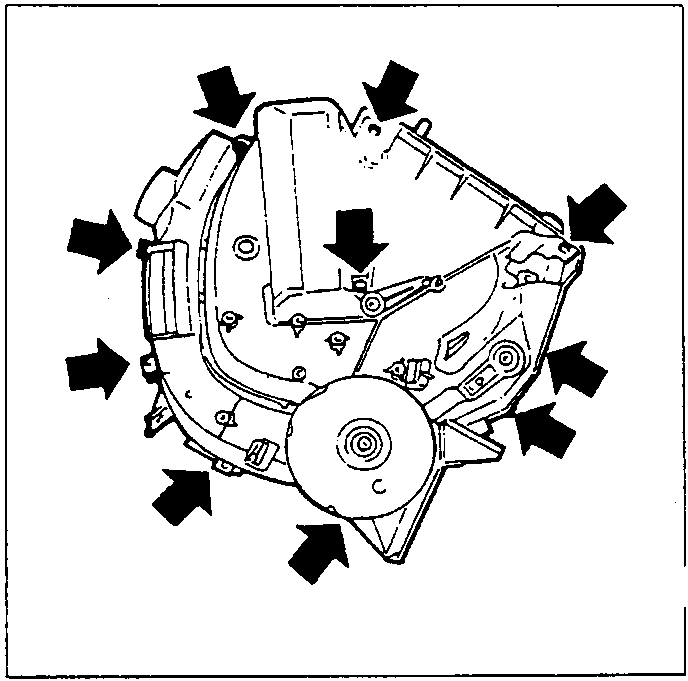

• Slacken the screws illustrated which join the two half boxes of the heater distributor unit.

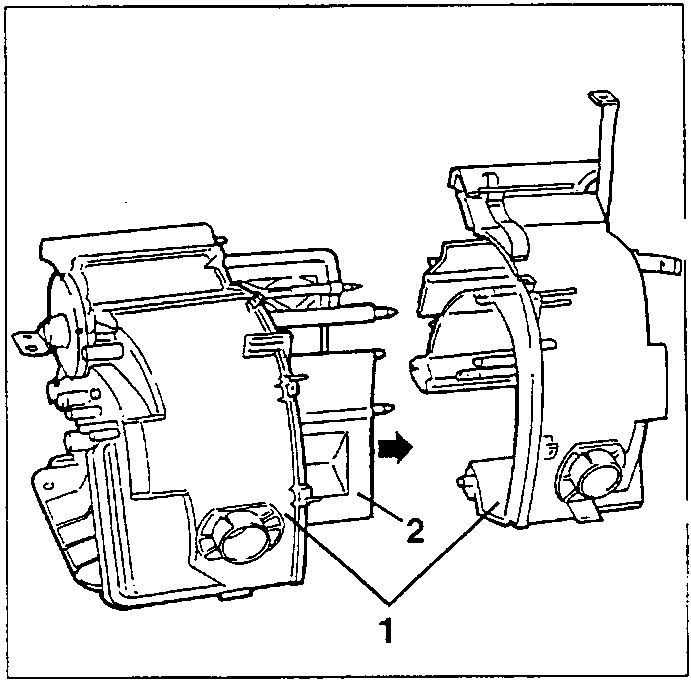

1. Release the right half box from the left one taking care not to damage the ports.
2. Withdraw the mixing port from the left half box.
