Heating and ventilationDisassembly · page 2 of 5

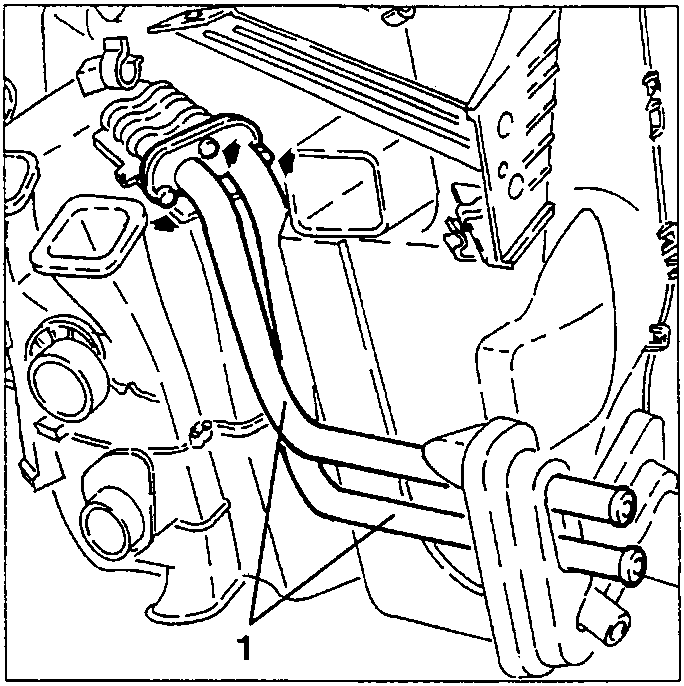

  1. Slacken the three fastening bolts of the plate retaining the heater coolant fluid inlet and outlet pipes, then remove them.
  • Remove the O-Rings and taper metal seal rings.
Heater coolant fluid inlet and outlet pipes, item 1

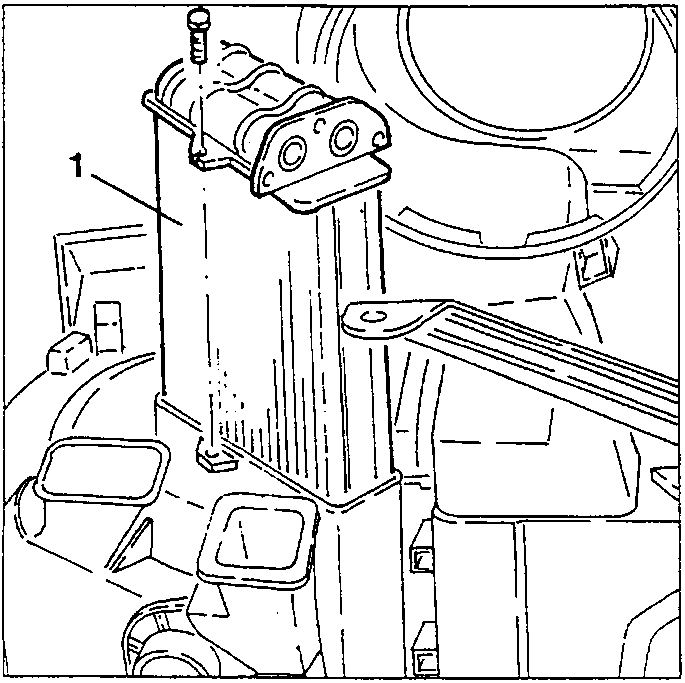

  1. Slacken the two fastening screws and withdraw the heater.
Heater, item 1

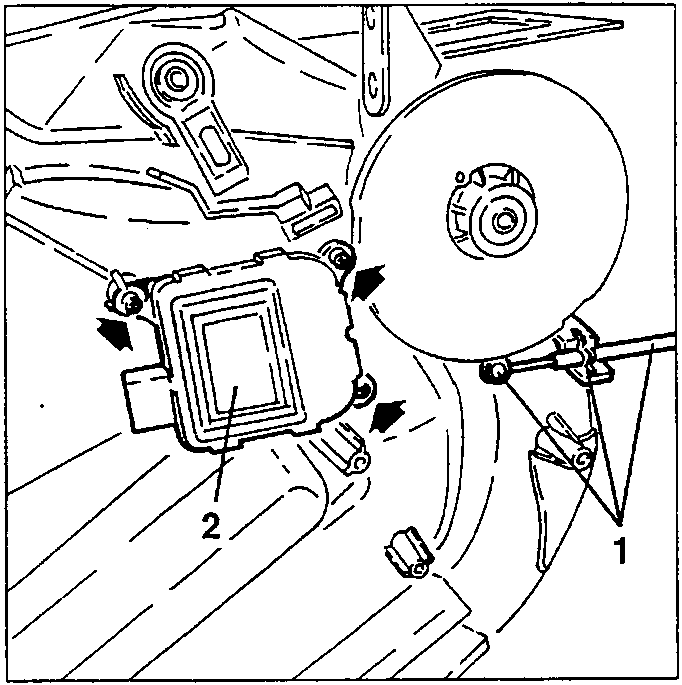

  1. Free the air distribution port bowden control cable from its fasteners, then remove it.
  2. Slacken the three fastening screws and remove the air mixing port control motor.
Bowden control cable (1) and air mixing port control motor (2)

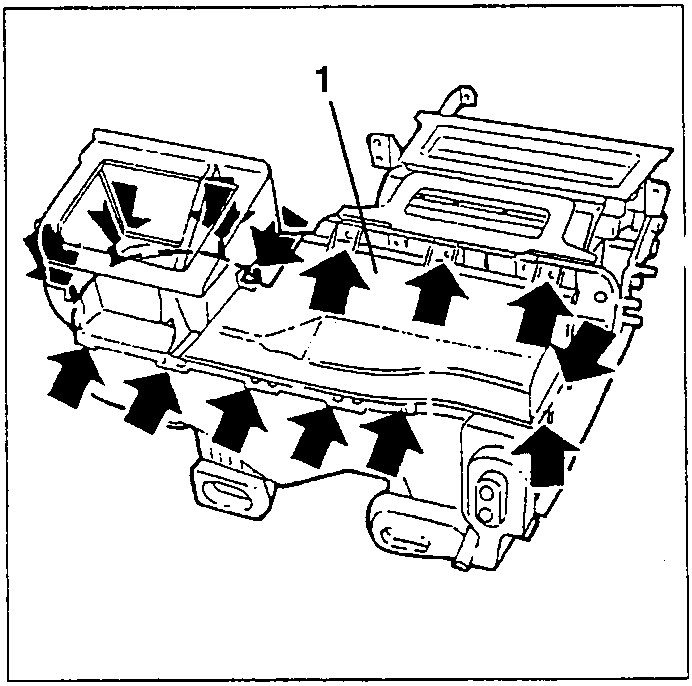

  1. Slacken the fastening screws and separate the upper half box from the climate control group.
Upper half box of the climate control group with fastening screws arrowed, item 1
