Heating and ventilationDisassembly · page 5 of 5

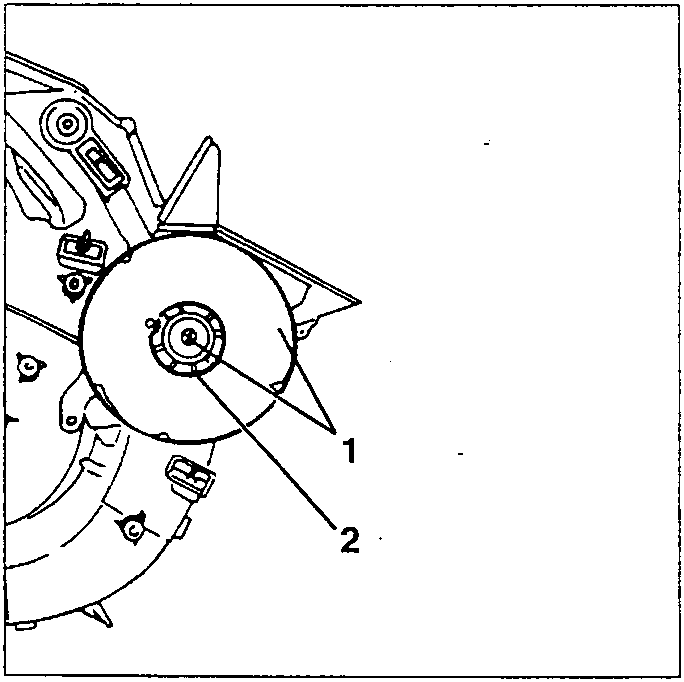

1. Slacken the fastening screw and remove the distributor disk from the left half box.
2. Retrieve the shaped plastic washer.

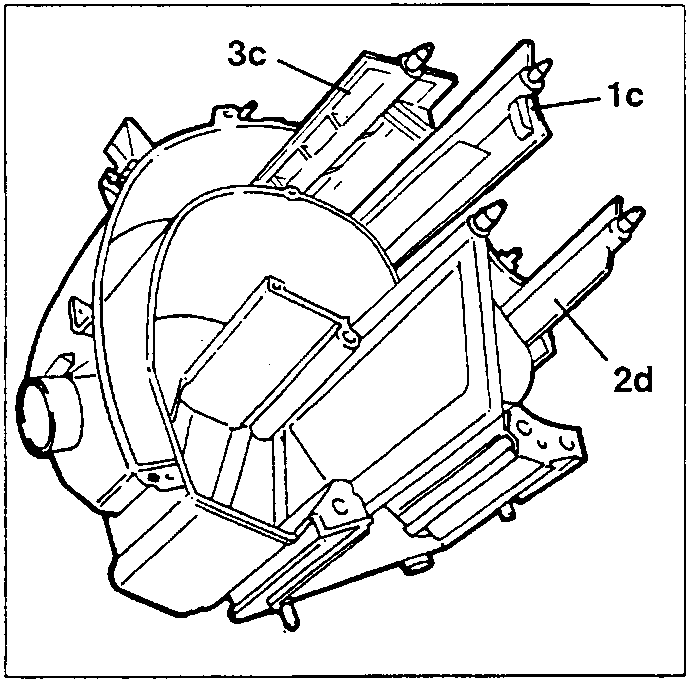

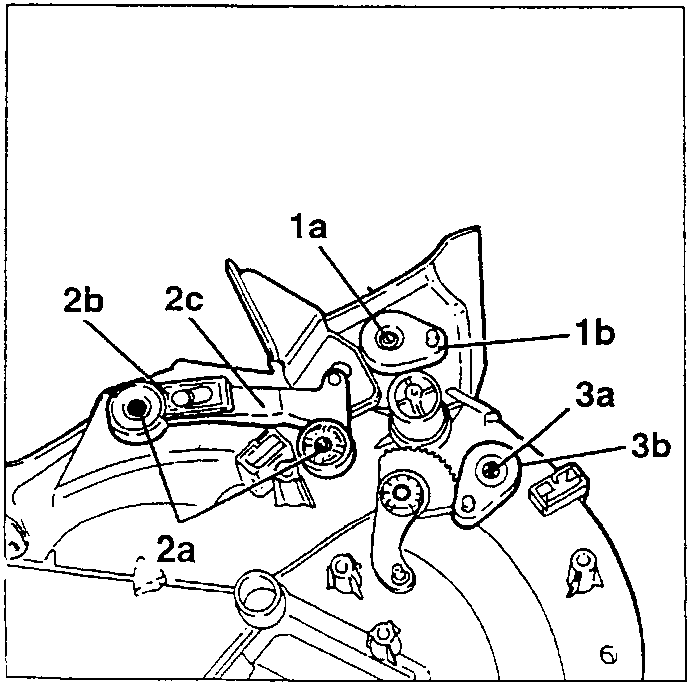

1. Slacken the fastening screw (1a) and release the lever (1b) inserted in a compulsory position on the spindle of rear upper distribution port (1c), then remove the latter from the left half box.
2. Slacken the fastening screws (2a) and release the lever (2b) with the control lever (2c) inserted in a compulsory position on the front upper distribution port sprindle (2d), then remove the latter from the left half box.
3. Slacken the fastening screw (3a) and release the lever (3b) from the lower distribution port spindle (3c).
