Heating and ventilationDisassembly · page 3 of 5

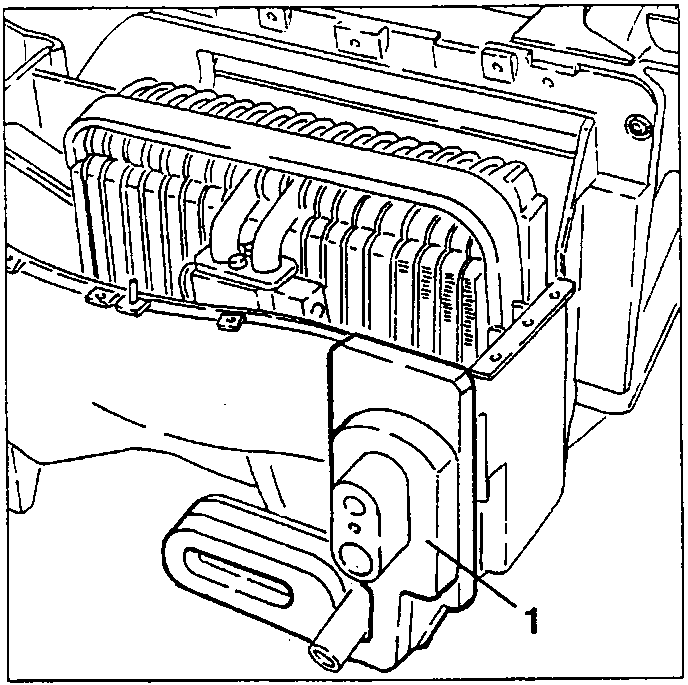

- Remove the protective sponge.

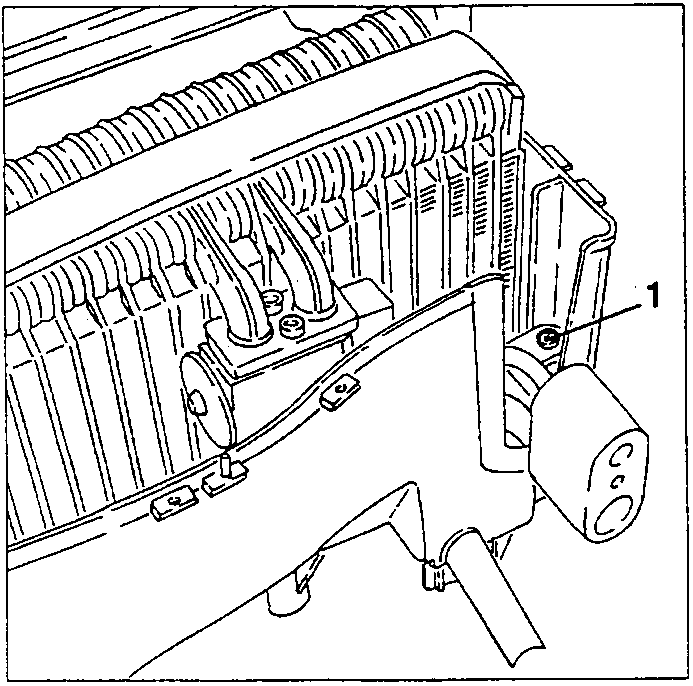

- Slacken the screw fastening the evaporator.

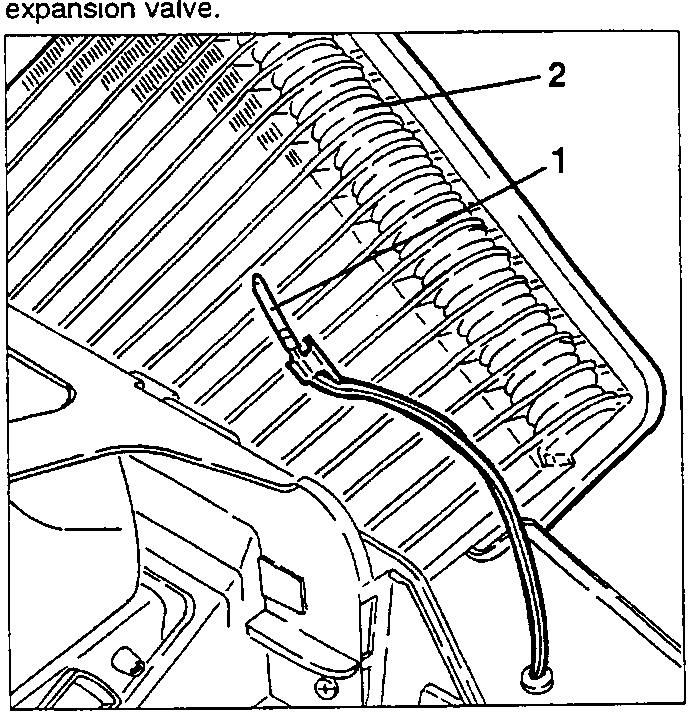

- Withdraw the evaporator from its housing just enough to disconnect the antifrost sensor from the clamp on it.
- Withdraw and remove the evaporator complete with expansion valve.
- If necessary, remove the expansion valve from its fittings slackening the fastening screws.

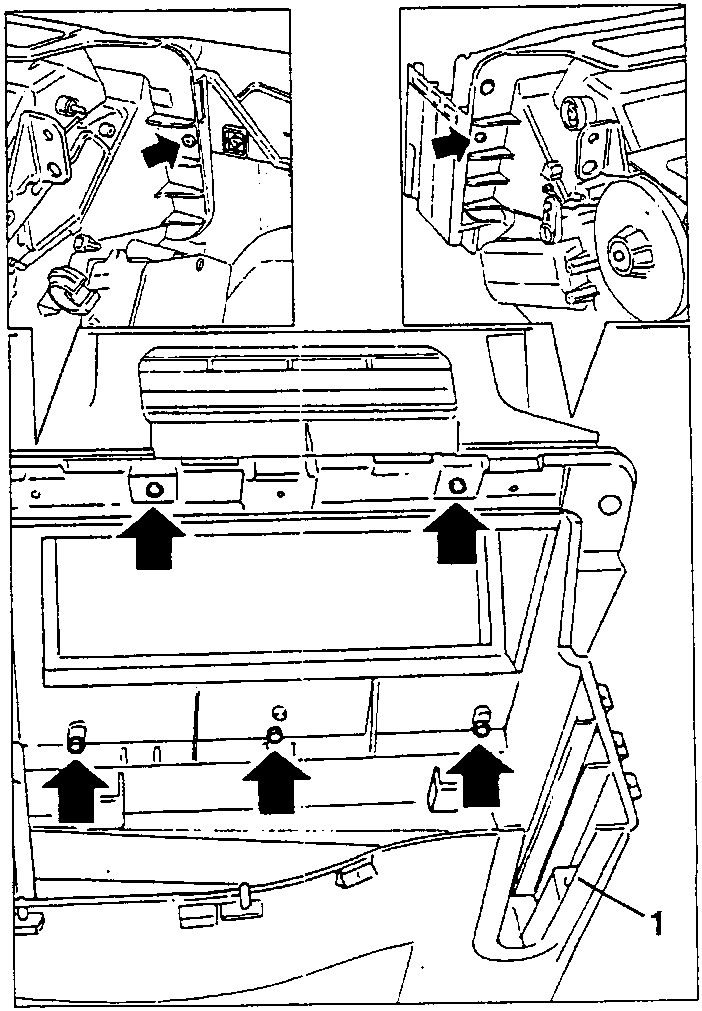

- Slacken the fastening screws and remove the lower half box from the heater distributor unit.
