Backrest folding control CABLE/ROD - R.R.

Operation 7045L30 · MANUAL MOVEMENT OF ELECTRIC FRONT SEATS

GTA

Removing

- 7045A10 l/h or r/h front seat (one) - r+r

- 7045A24 squab knob - r r

- 7045A25 squab lumbar knob - r r

- 7045A43 seat exterior guard - r r

- 7045A44 seat interior guard - r r

- 7045A98 front seat rear pouch panel, lh or rh - r r

- 7045A84 Front set BACKREST COVER - R.R. with seat removed

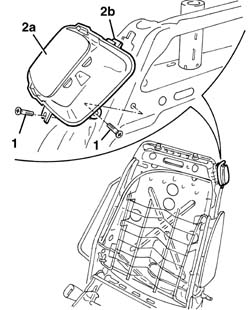

1. Undo the control lever fixing bolts.

2. Move the control lever (2a), releasing the retainer (2b) from the metal structure.

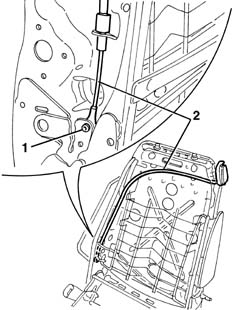

1. Remove the rivet fastening the end of the cable using a drill.

2. Remove the control cable and lever.

Refitting

Check that the control cable and lever are intact and there are no signs of damage.

Place the control cable and lever in position.

Fit the rivet fastening the end of the cable.

Position the control lever attaching the retainer to the metal structure, then fasten it using the bolts.

- 7045A84 Front set BACKREST COVER - R.R. with seat removed
