Seat slide control lever - r r

Operation 7045A29 · Front seat assembly

Removing

- 7045A10 l/h or r/h front seat (one) - r+r

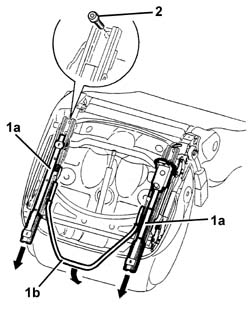

1. Move the guides (1a) forwards by operating the slide control lever (1b).

2. Undo the rear outer guide bolt.

1. Move the guides (1a) backwards by operating the slide control lever (1b).

2. Undo the front guide bolt.

1. Disconnect the slide control lever from the inner guide.

2. Remove the guide with slide control lever.

The slide control lever must not be disconnected from the guides before dismantling, to avoid deformation which could impair its operation.

3. Disconnect the slide control lever from the outer guide.

Refitting

Check that the slide control lever is undamaged.

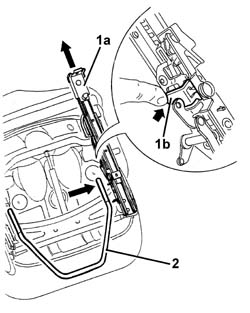

1. Move guide (1a) back to the end of its travel by hand by means of key (1b).

2. Insert the slide control lever in its seat and engage.

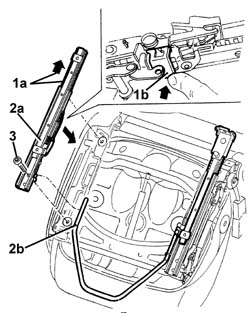

1. Move outer guide (1a) to the end of its travel by hand by means of key (1b).

2. Fit outer guide (2a) and engage slide control lever (2b).

3. Fit the front bolt without tightening.

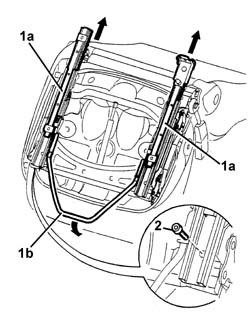

1. Move the guides forwards, operating the slide control lever.

2. Screw in and tighten the rear bolt.

1. Move the guides backwards, operating the slide control lever.

2. Tighten the front bolt.

Test the guides are working properly. In particular, check the guides are aligned by moving them around to different positions using the control lever and then checking the keys of both guides engage simultaneously.

- 7045A10 l/h or r/h front seat (one) - r+r
