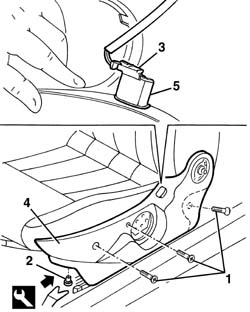

Seat exterior guard - r r

Operation 7045A43 · Front seat assembly

Removing

Using the adjustment lever, lift the seat to the end of its travel.

- 7045A24 squab knob - r r

1. Adjust splines (1a) and prise up panel (1b).

2. Undo the bolts.

3. Remove the seat height adjustment lever.

1. Undo the bolts securing the shield.

2. Undo the retaining buttons using the special tool.

3. Move the guard slightly and disconnect the seat heating switch electrical connection, if fitted.

4. Recover the guard.

5. If necessary, remove the switch from the guard using the inner retaining tabs.

Refitting

Check that the guard is undamaged.

If removed, refit the switch.

Connect the electrical connection.

Fit the guard and do up the retaining stud.

Tighten the bolts.

Fit the seat height adjustment lever and secure with bolts.

Fit the trim.

- 7045A24 squab knob - r r

Check the operation of the seat controls.
