Internal tailgate moulding (one) - r+r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Tailgate/ › Internal tailgate moulding (one) - r+r

Body fittingsInternal tailgate moulding (one) - r+r

Internal tailgate moulding (one) - r+r

Operation 7015A58 · Tailgate assembly

Removing

- 7015A04 tailgate interior panel - r+r

- 5550D16 third stop light - r+r

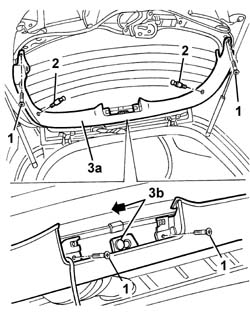

1. Unscrew the bolts.

2. Undo the parcel shelf attachments.

3. Remove the moulding (3a) after releasing it from the retainer (3b).

Refitting

Check that the moulding is undamaged.

Position the moulding and engage it on the retainer.

Tighten the parcel shelf attachments.

Tighten the screws.

- 5550D16 third stop light - r+r.

- 7015A04 tailgate interior panel - r+r.

17 Body & interior
