Introduction - TAILGATE/

SPECIFICATIONS

The tailgate is manufactured using conventional pressing processes and includes large window bonded flush with the tailgate. The edges that overlap the structure are screen-printed in black. The window features a demisting circuit that also includes the area around the third brake light and the rear wiper blade parking area.

The tail-gate can be opened:

• by turning the key directly in the lock;
• by using the button in the centre of the dashboard;
• by remote control, via a button on the ignition key.

The tail-gate is held in position by two gas struts.

COMPOSITION

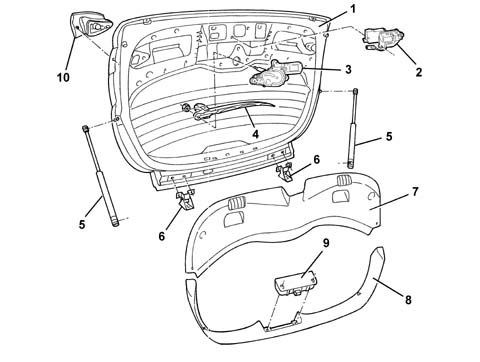

View of tail-gate components

1 - Tail-gate

2 - Tail-gate catch

3 - Rear wash/wipe motor

4 - Wiper blade

5 - Telescopic strut

6 - Tail-gate hinge

7 - Lower interior trim

8 - Side/upper trim

9 - Third brake light

10 - Interior tail-light
