Brake pedal - r r for rhd versions

Operation 3330B23 · Pedal unit

1.6 TS, 2.0 TS

Removing

Remove the climate control system - 5040C10 air conditioner box - r+r

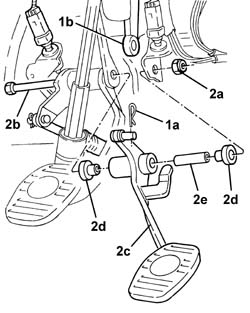

1. Remove the split pin (1a), and disconnect the brake pump (1b) from the brake pedal.

2. Undo nut (2a) and withdraw pin (2b) as far as necessary. Then remove brake pedal (2c) complete with spacers (2d) and bush (2e).

Refitting

Check the brake pedal is undamaged.

Refit the brake pedal complete with bushes and spacer.

Fit the pedal retaining pin and tighten the nut.

Connect the brake pump to the bake pedal and secure with the split pin.

- 5040C10 air conditioner box - r+r

1.6 TS, 2.0 TS · Selespeed gearbox

Removing

1. Working in the pedal area, unscrew nut (1a) and remove pedal pin (1b).

2. Release the retainer.

3. Prise up pin (3a) from link (3b).

4. Recover the brake pedal.

Refitting

Check the brake pedal is undamaged.

Fit the brake pedal and attach the pin to the link.

Insert the pedal pin.

Engage the retainer.

Tighten the nut.

Check the brake pedal is working properly.
