Clutch pedal - r+r

Operation 3330B26 · Pedal unit

Removing

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

1.6 TS, 2.0 TS, 3.2 V6

Proceed with removal - 1056B78 SWITCH on CLUTCH PEDAL - R.R..

1.9 JTD 8V, 1.9 JTD 16V

Proceed with removal - 1060G42 clutch pedal switch - r r.

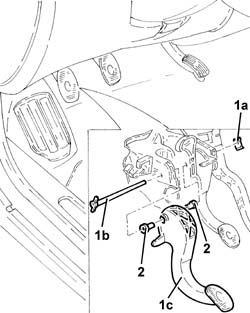

1. Remove the clip (1a) and release the rod (1b) for the clutch master cylinder from the pedal.

1. Remove the stop clip (1a), withdraw the pin (1b) and remove the clutch pedal (1c).

2. Keep the bushes.

All versions

Refitting

Place the clutch pedal, complete with bushes, back in its housing and secure it to the brake pedal using the pin and the stop clip.

Connect the rod for the clutch master cylinder to the pedal and secure it using the clip.

1.9 JTD 8V, 1.9 JTD 16V

Proceed with refitting - 1060G42 clutch pedal switch - r r.

1.6 TS, 2.0 TS, 3.2 V6

Proceed with refitting - 1056B78 SWITCH on CLUTCH PEDAL - R.R..

Connect the negative (-) battery terminal.
