HEATER - Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Climate control system › HEATER - Wiring diagram
Wiring diagrams and electrical functionsHEATER - Wiring diagram
HEATER - Wiring diagram

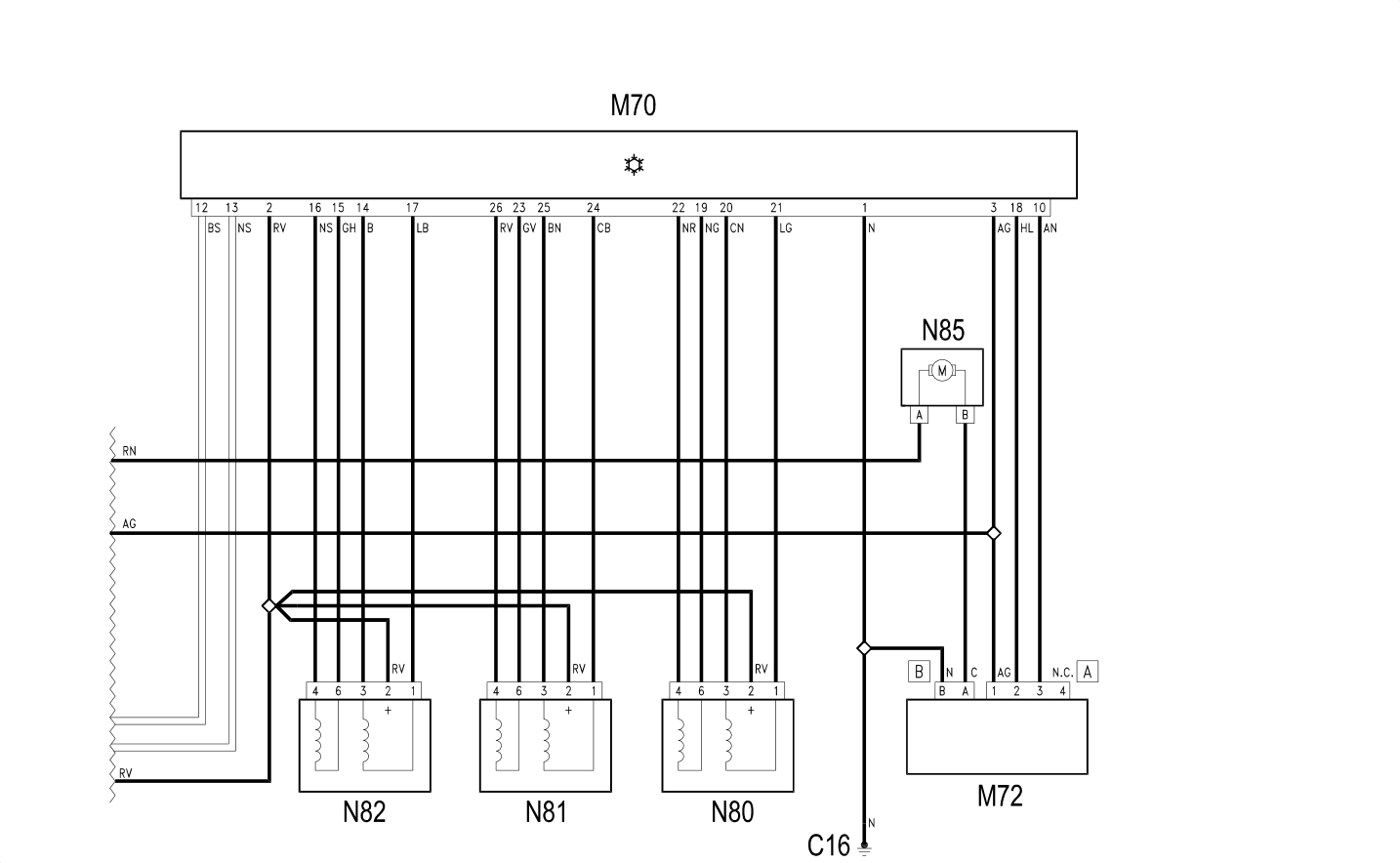

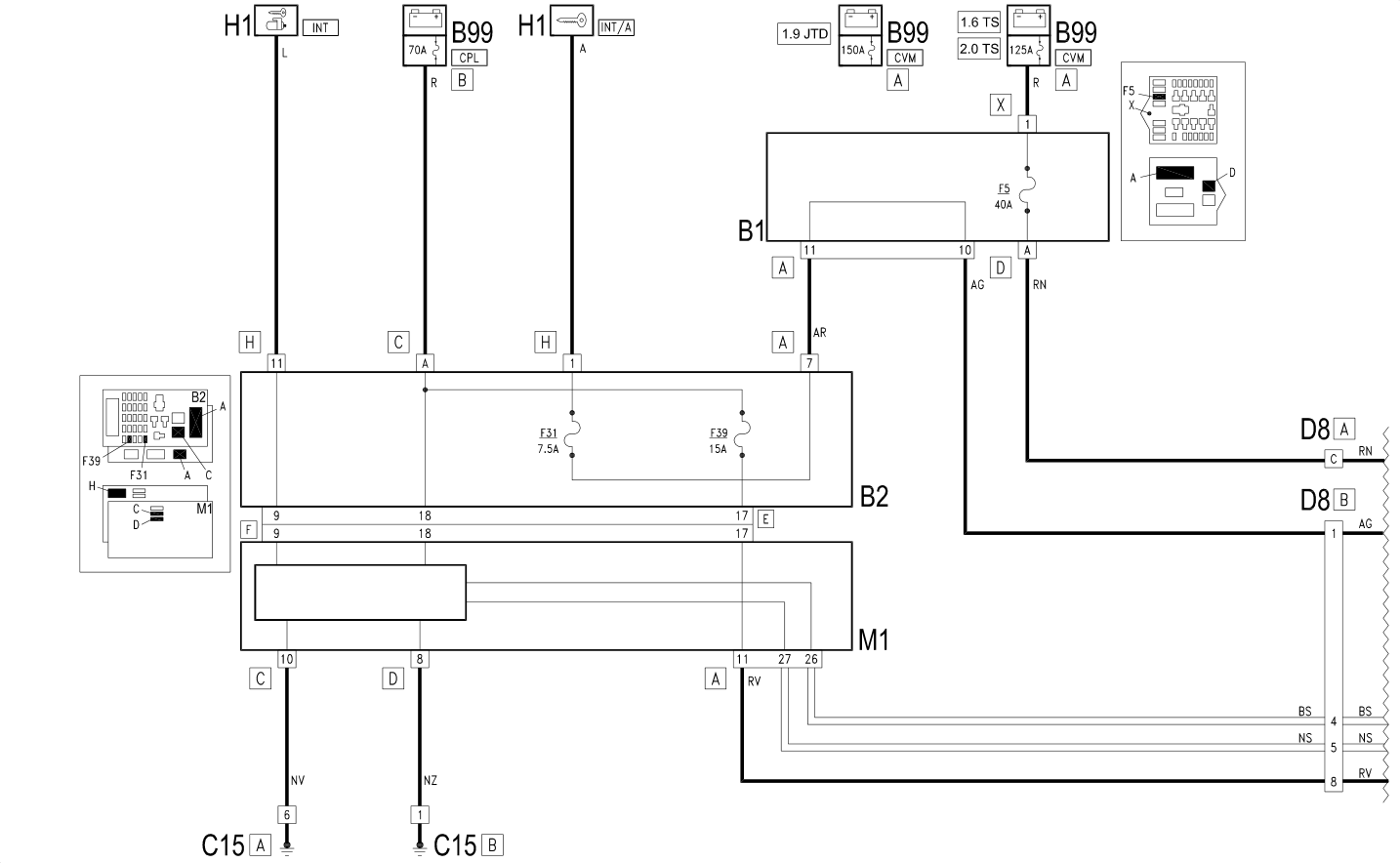

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C15 | Facia earth, driver's side | |
| C16 | Air conditioning earth | |
| D8 | Front coupling / air conditioner - with heating | |
| M1 | Body computer | 5505A |
| M70 | Climate control system control unit | 5040D |
| M72 | Fan speed' variator | 5040C |
| N80 | Air distribution actuator | |
| N81 | Air mixture flap actuator | |
| N82 | Air intake actuator | |
| N85 | Passenger compartment ventilation fan |
