AIR CONDITIONING - Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Climate control system › AIR CONDITIONING - Wiring diagram
Wiring diagrams and electrical functionsAIR CONDITIONING - Wiring diagram
AIR CONDITIONING - Wiring diagram

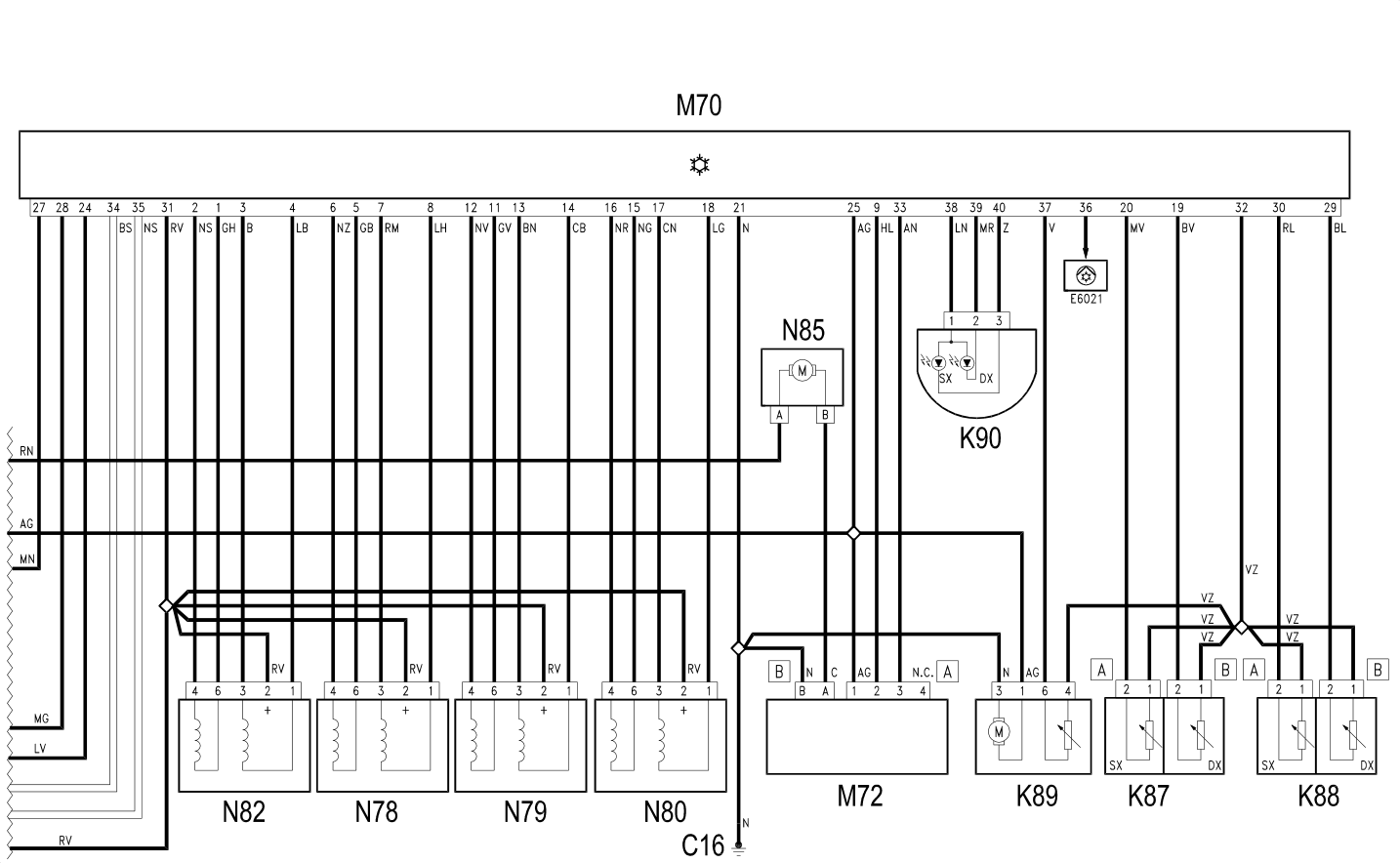

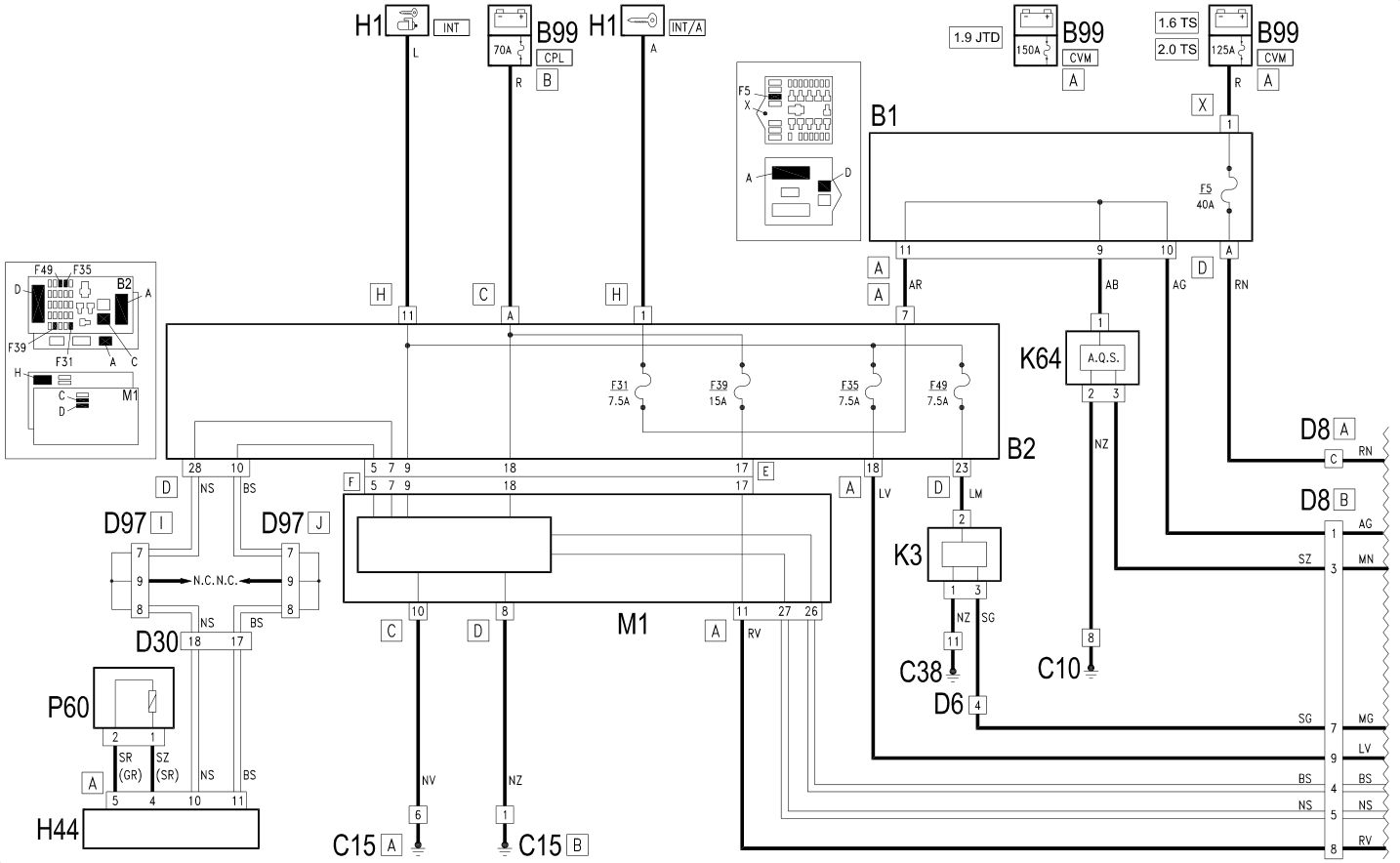

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C15 | Facia earth, driver's side | |
| C16 | Air conditioning earth | |
| C38 | Earth on centre tunnel | |
| D6 | Front / rear coupling | |
| D8 | Front coupling / air conditioner - with heating | |
| D30 | Rear coupling for /front door. driver's side | |
| D97 | Short circuiting coupling | |
| H44 | Electric window controls on front door | 7005M |
| K3 | Misting sensor | |
| K64 | Exhaust gas sensor | 5010D |
| K87 | Lower treated air sensor | 5010D |
| K88 | Upper treated air sensor | 5010D |
| K89 | Passenger compartment air temperature sensor | 5010D |
| K90 | Solar sensor | 5010D |
| M1 | Body computer | 5505A |
| M70 | Climate control system control unit | 5040D |
| M72 | Fan speed' variator | 5040C |
| N78 | Left air mixture flap actuator | 5040D |
| N79 | Right air mixture flap actuator | 5040D |
| N80 | Air distribution actuator | |
| N80 | Air distribution actuator | 5040D |
| N81 | Air mixture flap actuator | |
| N82 | Air intake actuator | |
| N82 | Air intake actuator | 5040D |
| N85 | Passenger compartment ventilation fan | |
| N85 | Passenger compartment ventilation fan | 5040C |
| P60 | Driver's external rear view mirror | 7005R |

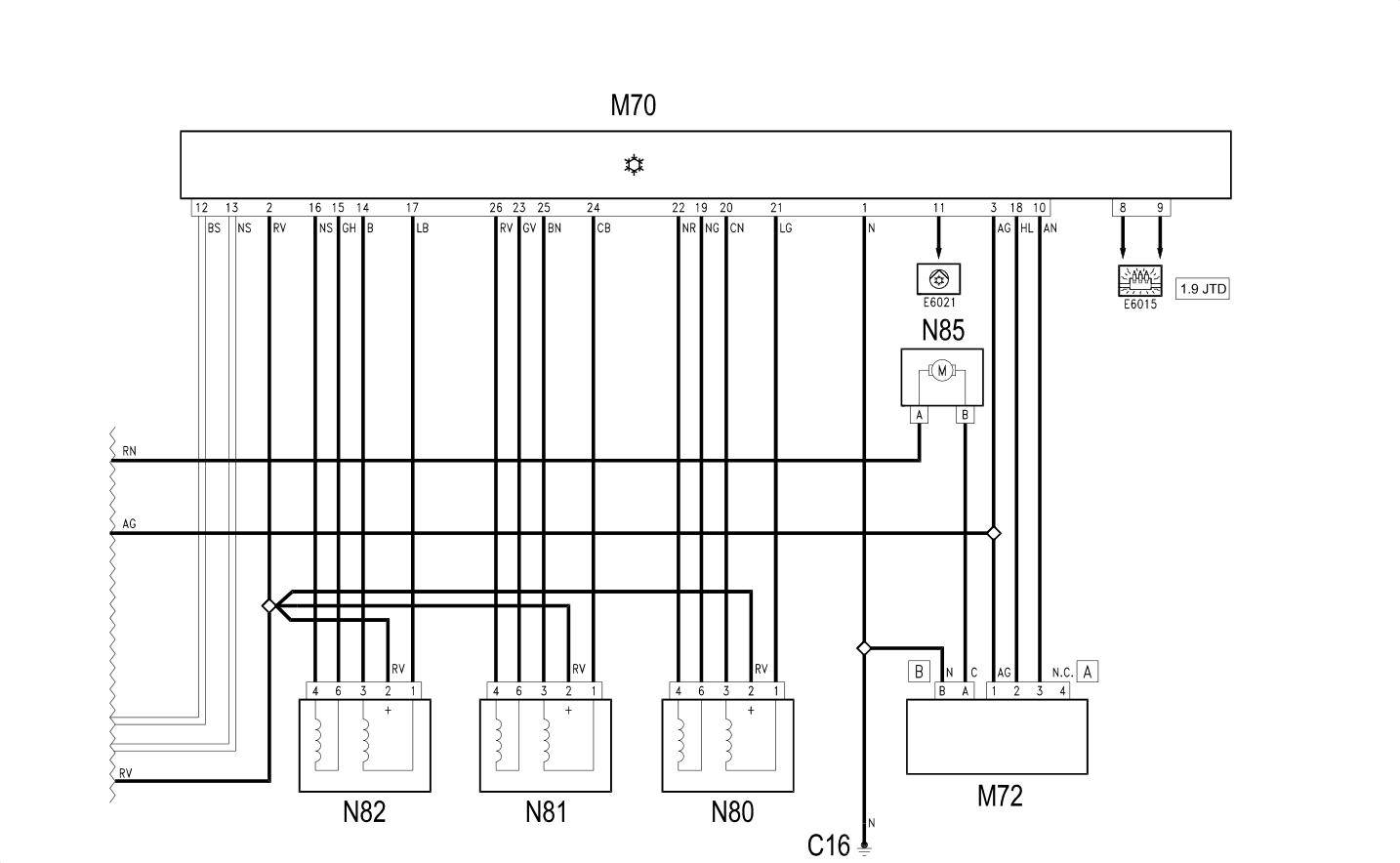

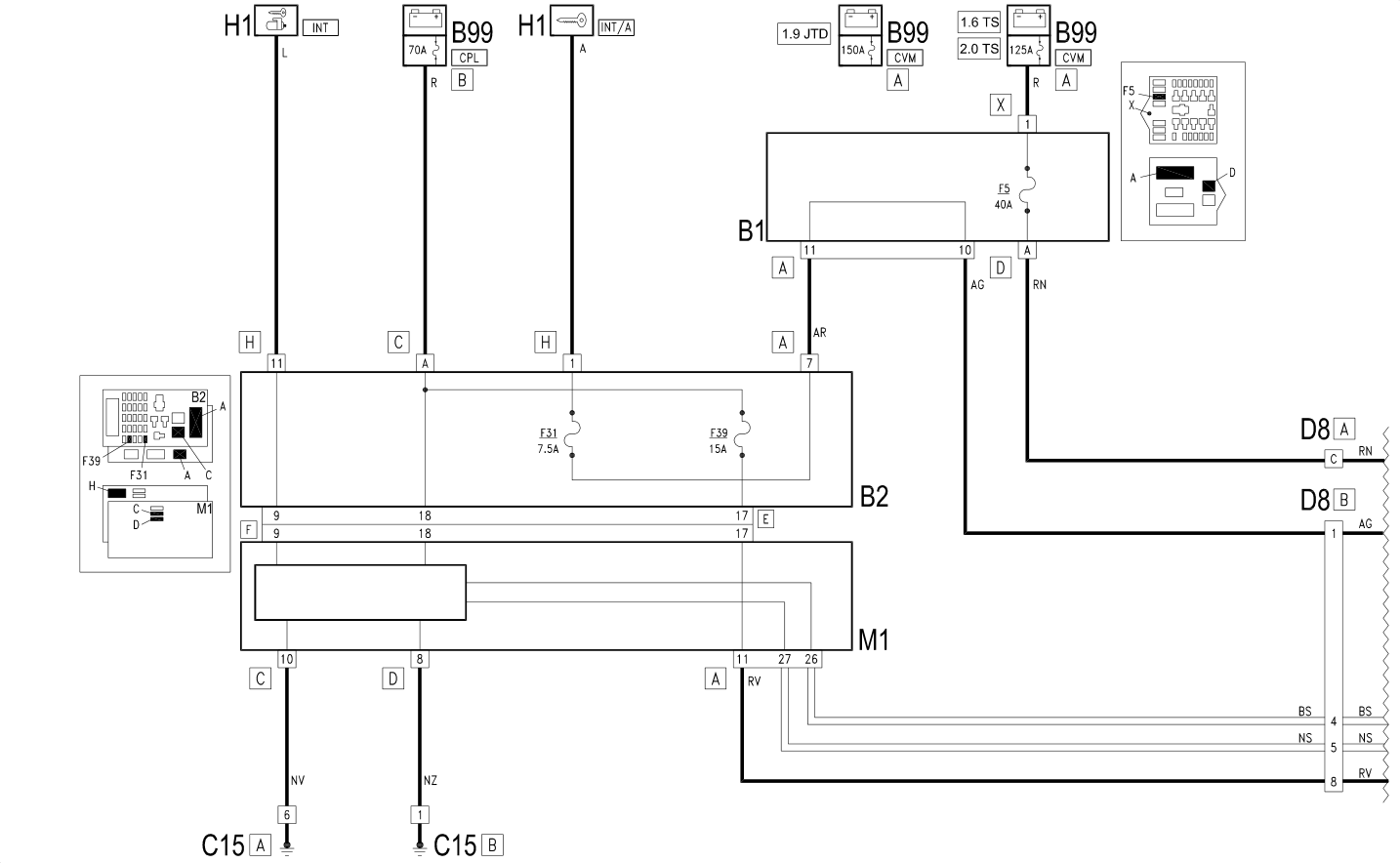

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C15 | Facia earth, driver's side | |
| C16 | Air conditioning earth | |
| C38 | Earth on centre tunnel | |
| D6 | Front / rear coupling | |
| D8 | Front coupling / air conditioner - with heating | |
| D30 | Rear coupling for /front door. driver's side | |
| D97 | Short circuiting coupling | |
| H44 | Electric window controls on front door | 7005M |
| K3 | Misting sensor | |
| K64 | Exhaust gas sensor | 5010D |
| K87 | Lower treated air sensor | 5010D |
| K88 | Upper treated air sensor | 5010D |
| K89 | Passenger compartment air temperature sensor | 5010D |
| K90 | Solar sensor | 5010D |
| M1 | Body computer | 5505A |
| M70 | Climate control system control unit | 5040D |
| M72 | Fan speed' variator | 5040C |
| N78 | Left air mixture flap actuator | 5040D |
| N79 | Right air mixture flap actuator | 5040D |
| N80 | Air distribution actuator | |
| N80 | Air distribution actuator | 5040D |
| N81 | Air mixture flap actuator | |
| N82 | Air intake actuator | |
| N82 | Air intake actuator | 5040D |
| N85 | Passenger compartment ventilation fan | |
| N85 | Passenger compartment ventilation fan | 5040C |
| P60 | Driver's external rear view mirror | 7005R |

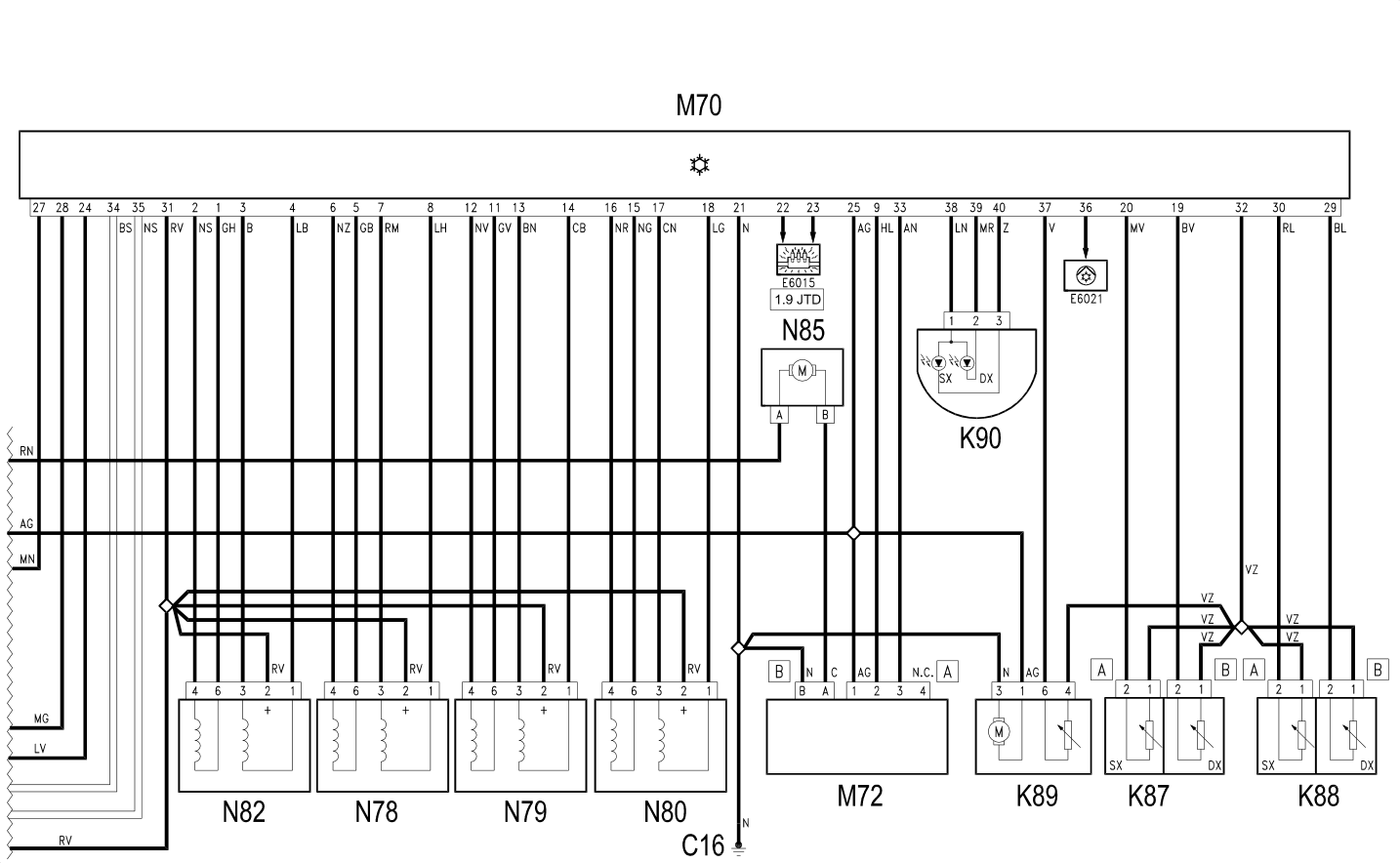

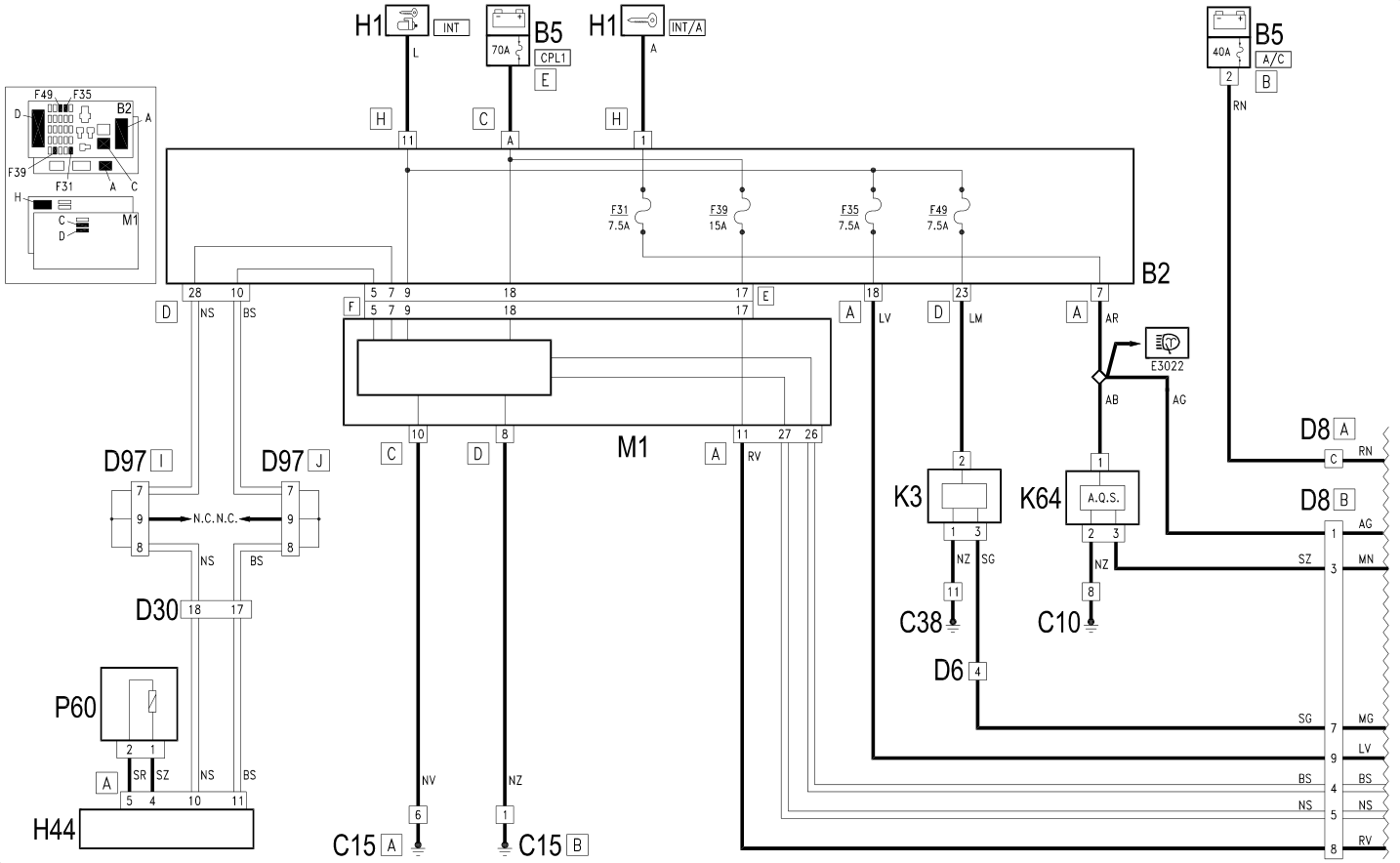

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C15 | Facia earth, driver's side | |
| C16 | Air conditioning earth | |
| C38 | Earth on centre tunnel | |
| D6 | Front / rear coupling | |
| D8 | Front coupling / air conditioner - with heating | |
| D30 | Rear coupling for /front door. driver's side | |
| D97 | Short circuiting coupling | |
| H44 | Electric window controls on front door | 7005M |
| K3 | Misting sensor | |
| K64 | Exhaust gas sensor | 5010D |
| K87 | Lower treated air sensor | 5010D |
| K88 | Upper treated air sensor | 5010D |
| K89 | Passenger compartment air temperature sensor | 5010D |
| K90 | Solar sensor | 5010D |
| M1 | Body computer | 5505A |
| M70 | Climate control system control unit | 5040D |
| M72 | Fan speed' variator | 5040C |
| N78 | Left air mixture flap actuator | 5040D |
| N79 | Right air mixture flap actuator | 5040D |
| N80 | Air distribution actuator | |
| N80 | Air distribution actuator | 5040D |
| N81 | Air mixture flap actuator | |
| N82 | Air intake actuator | |
| N82 | Air intake actuator | 5040D |
| N85 | Passenger compartment ventilation fan | |
| N85 | Passenger compartment ventilation fan | 5040C |
| P60 | Driver's external rear view mirror | 7005R |
