Electrical equipmentFront speaker - r r

Front speaker - r r

Operation 5570T90 · Car radio and car telephone

Removal

See Op. 7005C44 Interior handle panel - r r

See Op. 7005M11 Data not yet available (for the driver's door)

See Op. 7005M12 Passenger side front door electrically operated window switch - r r (for the passenger door)

See Op. 7040E24 Lower courtesy light indoor panel - r+r

See Op. 7005E08 Front side door interior panel r r

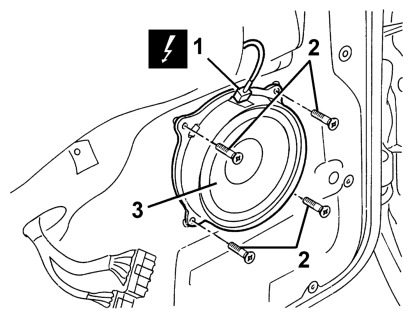

1 Disconnect the electrical connections.

Component P35 Speaker in driver's .front door 1

Component P36 Speaker in front passenger door 1

2 Unscrew the bolts

3 Recover the speaker.

Refitting

Check that the speaker is not damaged.

Position the speaker.

Tighten the screws.

Connect the electrical connection

Check the operation of the speaker.

See Op. 7005E08 Front side door interior panel r r

See Op. 7040E24 Lower courtesy light indoor panel - r+r

See Op. 7005M12 Passenger side front door electrically operated window switch - r r (for the passenger door)

See Op. 7005M11 Data not yet available (for the driver's door)

See Op. 7005C44 Interior handle panel - r r
