Location

Unlike the system fitted as standard, the Bose systme includes:

• front/rear speakers coaxial type specifications
• rear woofer speaker
• high power amplifier

The other components (radio, aerial, etc.) are the same as those on the system fitted as standard.

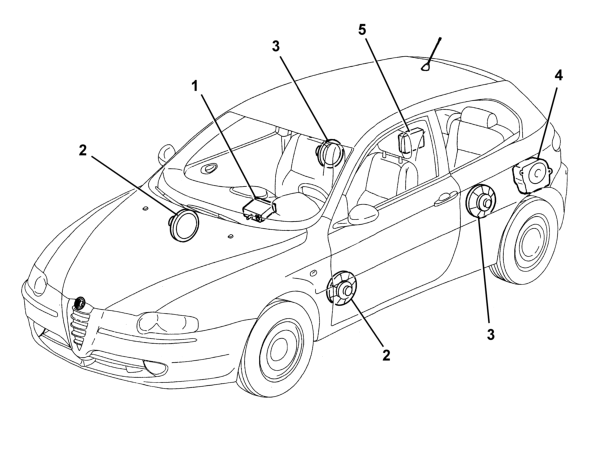

• 1 Radio
• 2 Front door speakers
• 3 Rear speakers
• 4 Rear woofer speaker
• 5 Amplifier

The diagram below illustrates the location of the components.
