Rear side speaker - r r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Accessories › Rear side speaker - r r

Electrical equipmentRear side speaker - r r

Rear side speaker - r r

Operation 5570T96 · Car radio and car telephone

Removal

See Op. 7040L40 Front compartment scuff strip - r r

See Op. 7050A22 Rear seat cushion - r+r

See Op. 7040H50 Rear panel - r r

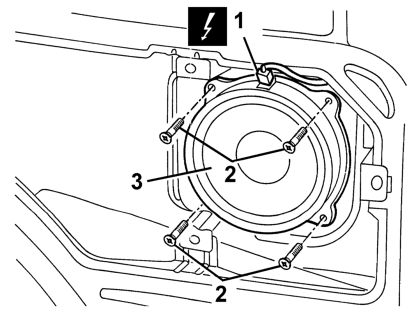

1 Disconnect the electrical connections.

Component P30 Left rear speaker 1

Component P31 Right rear speaker 1

2 Unscrew the bolts

3 Recover the speaker.

Refitting

Check that the speaker is not damaged.

Position the speaker.

Tighten the screws.

Connect the electrical connection

Check the operation of the speaker.

See Op. 7040H50 Rear panel - r r

See Op. 7050A22 Rear seat cushion - r+r

See Op. 7040L40 Front compartment scuff strip - r r
