Front tweeter - r r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Accessories › Front tweeter - r r

Electrical equipmentFront tweeter - r r

Front tweeter - r r

Operation 5570T92 · Car radio and car telephone

Removal

See Op. 7005C44 Interior handle panel - r r

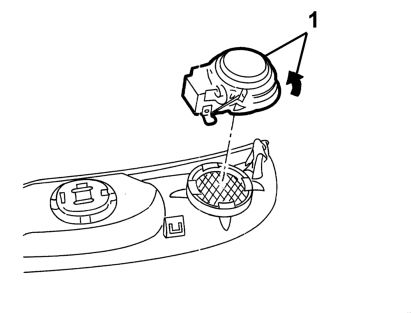

1 Rotate the tweeter in an anti-clockwise direction and remove it.

Refitting

Check that the tweeter is not damaged.

Fit the tweeter in the housing.

See Op. 7005C44 Interior handle panel - r r

Check the operation of the tweeter.

12 Electrical
