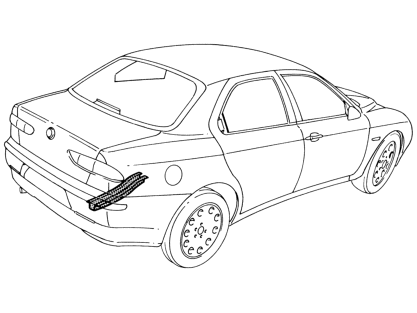

Boot floor rail

Operation 7210B60 · Structure elements-central and rear part

Removal

Check if any of the connected parts are deformed by checking body alignment dimensions. Use appropriate measurement tools (reference rigs, templates or gauges).

Straighten the body if necessary.

Use a rotary brush to clean the areas to be ground in order to expose the weld spots.

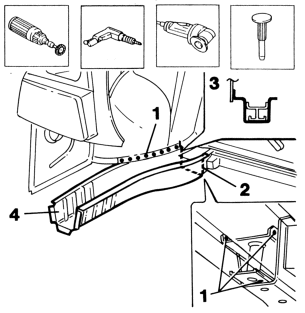

1 Drill out the weld spots shown in the figure.

2 Use a circular saw to follow the cutting lines shown in the figure.

3 Cross-sections of key areas as a guide to allow the operator to adjust cutting position and depth in order to avoid damage to the underlying panels.

4 Use a chisel and hammer to remove the rail section from the car.

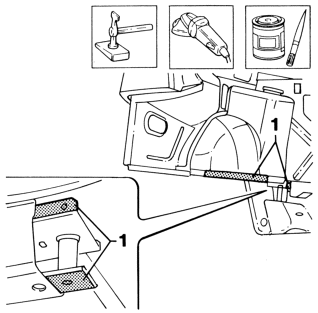

Straighten the panel edges using a mallet and profiled stake.

Use a grinding wheel to remove the weld spot residues.

1 Apply the electroweldable paint finish to the areas shown in the figure.

Refitting

Cut the rail section at the bench. Take care to leave a sufficiently wide section of steel to attach the new part to.

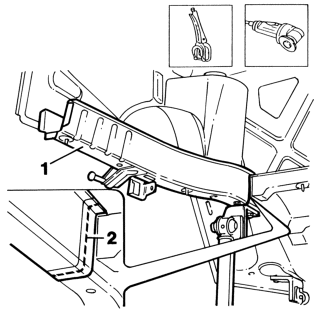

1 Position the part on the car and secure using self-locking grippers and a template.

2 Use a circular saw to trim the panel and remove excess parts.

Remove the part from the car.

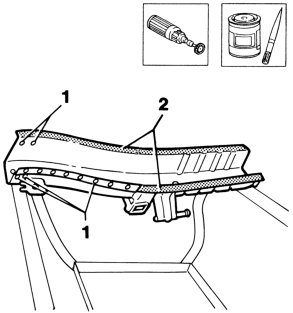

1 Make a hole as shown in the figure.

Working at the bench, use a rotary brush to remove the corrosion-proofing from the areas shown in the figure.

2 Apply the electric weld paint finish to edges in contact with the car.

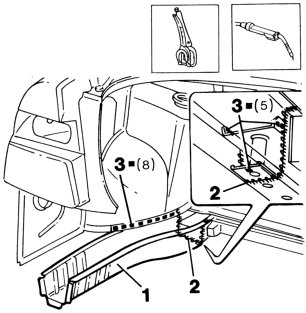

1 Position the part on the car and secure using self-locking grippers.

2 Use a MIG welder to seam weld along the line shown in the figure.

3 Use a MIG welder to fill the holes made previously.

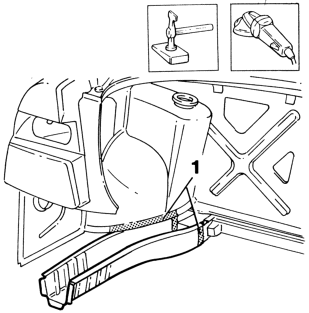

Correct any deformations in the panel using a profiled stake and mallet.

1 Use a grinding wheel to level weld residues and remove.

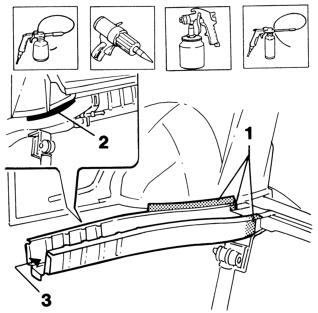

1 Apply rust-proofing to newly-welded areas.

2 Seal the joint lines shown in the figure.

Apply paint.

3 Apply wax oil inside the rail.
